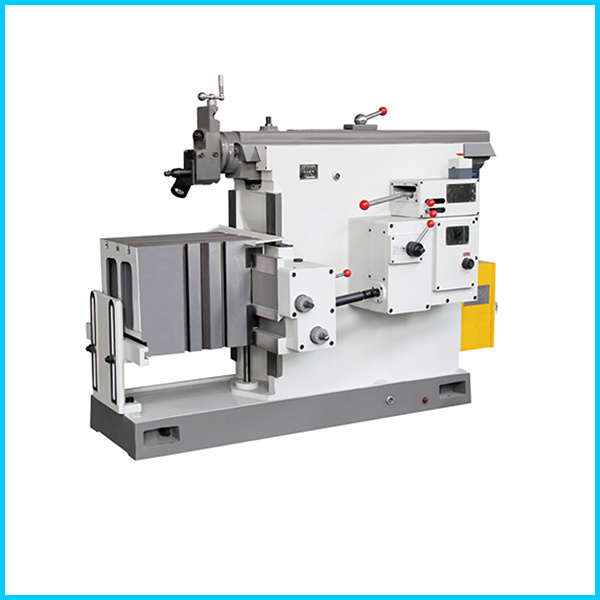

Model | BC6050 |
Maximun planing length | 500mm |
Max.distance between the ram bottom and table | 525mm |
Max.range of the borizontal movement of the table | 370mm |
Max.length of he vertical movement of table | 270mm |
Dimensions of table top(L X W) | 440×360mm |
Max.stroke length of toolhead | 120mm |
Max.swivel angle of the toolhead | ±60° |
Number of ram reciprocation per minute(mm)(NO/min) | 14-80 |
Range of table feed | Horizontal | 0.95 0.38 |
Vertical |
Width of the T-slot for center positioning(mm) | 18 |
Power of the main motor(kw) | 3 |
N.W/G.W(kg) | 1650/1750 |
Overall dimensions(LxWxH) | 1900×1200×1450 |
Number of ram reciprocation per minute(mm)(NO/min):14-80
Max.swivel angle of the toolhead: ±60°
Width of the T-slot for center positioning(mm):18
Power of the main motor(kw):3
N.W/G.W(kg):1650/1750
Overall dimensions(LxWxH):1900×1200×1450
