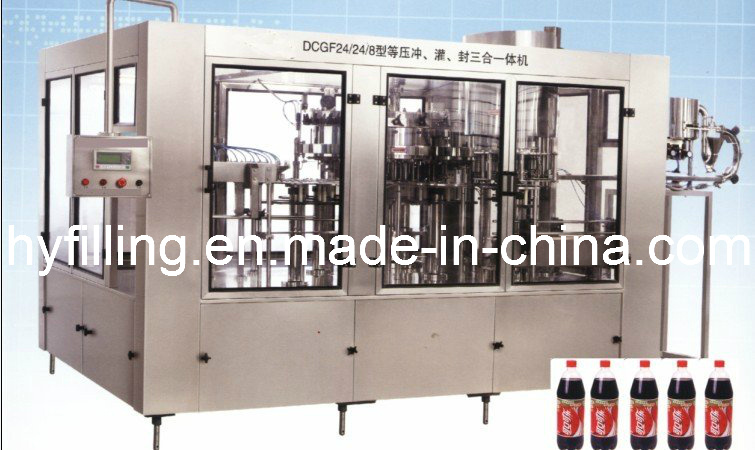

DCGN50/50/15 full automatic washing-filling-capping monobloc
The machine is designed by our company with stable characteristic, advanced technology, nice appearance and complete function.
The machine is mainly used for washing/filling/capping PET bottle carbonated soft drink.
Technical Parameters:
Rating output (500ml): 18000bph
Washing heads: 50
Washing time: 2-2.5s
Filling valve heads: 50
Filling valve speed: 140~150ml/s
Capping heads: 15
Filling temperature: 0~4° C
Suitable bottle type: PET bottle diameter: D=50~100mm
Bottle height: H=150~320mm
Capping torque: 0.6~2.8Nm (adjustable)
Installed capacity: 7.87KW
Compressed air consumption: 0.35Nm3/min (when 0.6MPa)
Water consumption: About 4.5m3/h for washing (0.2-0.25Mpa)
Overall dimension: 5350× 3500× 2850
Weight: 10.5T
Filling Principle: Isobaric Filling
Filling Product: CSD, carbonated soft drinks, Soda Water, carbonated drinks etc.
CSD Beverage Production Line Equipment List:
- Water treatment system
- Blow molding machine
- CSD preparation and mixing system
- Bottle unscrambler/Manual bottle loading system
- Air conveyor
- Rinsing-filling-capping 3-in-1 monoblock
- Bottle Warmer
- Labeling Machine
- Water Blow Drier,
- Lampinspection,
- Code ink jetter
- Shrink wrapper / carton packaging machine
- Palletizing system
- Conveying System
|
Item |
Description |
Industrial standard |
Index |
|
1 |
Rinsing rate |
100% |
100% |
|
2 |
Filling liquid error |
±12mm |
±4mm |
|
3 |
Bottle damage rate |
≤0.2% |
≤0.08% |
|
4 |
Cap damage rate |
|
≤0.3% |
|
5 |
Pass percent of capping sealing |
100% |
100% |
|
6 |
Capping torque |
0.6~2.8N@m adjustable |
scope±15% |
|
7 |
Liquid loss rate |
≤0.5% |
≤0.3% |
|
Description |
Supplier |
|
PLC |
Mitsubishi, Siemens |
|
Touch screen |
Mitsubishi, Siemens, PROFACE |
|
Frequency converter |
Mitsubishi, Siemens, Danfoss |
|
Air switch |
Schneider |
|
Breaker |
Siemens |
|
Contactor |
Siemens |
|
Photoelectric switch |
Omron, Keyence, P+F |
|
Approach switch |
Truck |
|
Main bearing |
NTN |
|
Lubrication bearing |
IGUS |
|
Sealings |
Sealtech |
|
Pneumatic components |
Camozzi |
