Product Specifications
| Prod Model: |
SHGQ-100 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Operational Method: |
Continuous, Continuous~ |
| Structure: |
Rotary Type Drier |
| Operation Pressure: |
Electirc |
| Movement Way: |
Agitation |
| Heating Mode: |
Transmission |
Product Description

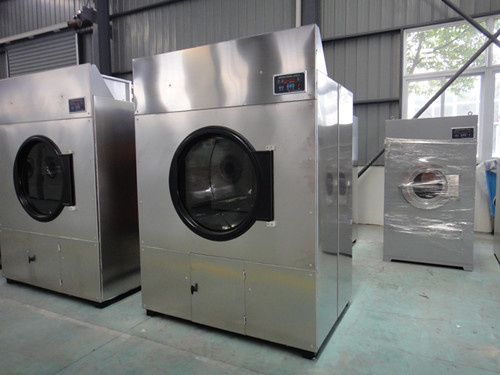

Drying machine for clothes
1. Computer operating panel
2. Drum is made of all stainless steel
3. Big door, it is easy for the operator to fetch clothes
4. Transmitted by rubber triangle belt
5. Cover a small area
6. Capacity: 15kg, 30kg, 50kg, 100kg, 120kg, 150kg
7. Heating: Steam or electric
8. Certifate: CE&ISO9001
Drying machine for clothes main feature
1. Adopt the automatically controlled, only need to regulate good time through the control panel, it can finish drying the course entirely automatically, stop alarm
2. Drum is made of all stainless steel, beautiful and smooth, durable.
3. Big door, equipped with large toughened glass, available in watching clothes during drying time, open the door greatly and easily open the door in180 degree to draw the clothes.
4. Triangle belt, smooth operation, low noise, safe and reliable.
5. Box cabiner structure, compact structure, cover a small area
6. Its capacity is from 15kg to 150kg.
7. CE and ISO9001 certificates.
8. Packing: With wooden box
Speicifcation:
Model SHGQ100
Capacity 100kg
Drum dimension diameter 1320mm*10550mm
Drum speed: 33r/min
Electricity heating power 12.6kw
Motor power 2.2KWkw
Fan power 1.5kw
Overall Dimension 1500mm*1940mm*2380mm
Weight 980kgs
|
Model |
HGQ15 |
HGQ30 |
HGQ50 |
HGQ100 |
HGQ150 |
HGQ200 |
|
Rated capacity |
15 |
30 |
50 |
100 |
150 |
200 |
|
Drum capacity |
760*560 |
900×750 |
1050×930 |
1320×1055 |
1600×1150 |
1300×2150 |
|
Drum speed |
33 |
33 |
33 |
33 |
28 |
33 |
|
Heated term |
12.6kw |
Steam pressure:0.294-0.588MPa Voltage:380V Three phase four wire |
|
Motor power |
0.75 |
1.1 |
1.5 |
2.2 |
4 |
3 |
|
Breeze motor power |
0.75 |
1.1 |
1.1 |
1.5 |
1.5×2 |
2.2 |
|
Overall dimensions |
800*1020*1530 |
1000×1400×1800 |
1190×1670×2100 |
1480×1840×2380 |
1760×200×2730 |
2650×1630×2720 |
|
Overall weight |
250 |
600 |
800 |
980 |
1300 |
1500 |
Jiangsu Jiezhong Machinery Manufacturing Co., Ltd is one of the leading manufacturers of industrial and commercial laundry equipments in China for years. In 2013, Jiezhong became the only one cooperative partner of Accurate Technologies in Thailand. Since then, Jiezhong has the right to sell the Image brand to domestic and foreign countries. Also, Jiezhong has been engaged with customers from a wide varity of industries, invested time and energy in our customers' maintenance and development, offering products and service designed to face the challenges we meet every day.
As a professional manufacturer, our products are widely recognized and trusted by customers all over the world and are applied in hotels, hospitals, military, laundry companues, for its superb quality, reasonable prices and stylish designs. Our main products are: Washer extractor, barrier washer, tumble dryer, ironing machine, and folding machine. Also we sell Image brand products from Thailand named tunnel washer, deep chest ironer and towel folding machine. To ensure high quality, our company spares no expense to the introduction of international advanced equipment, such as laser cutting machines.
We take full responsibility of repair, replacement, if serious quality problems happen during the term of service. Our company is commented to providing the best solution for your laundry. We have served thousands of satisfied customers around the market, enjoying a high reputation both at home and abroad.
Nevertheless, we welcome your visit and are looking forward for future cooperation for mutual benefits.
