Product Specifications
| Prod Model: |
ZK-6040 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max Box Size:600*400*125mm: |
Min Box Size:125*60*15mm |
| Automatic Grade: |
Automatic |
| Type: |
Automatic Carton Making Machine |
Product Description

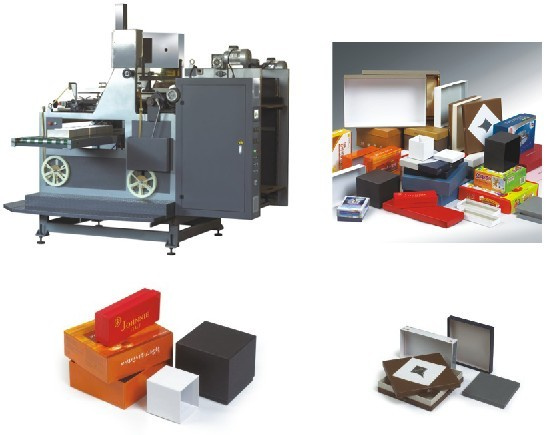

These boxes forming machine is used to pasting and lock the corner of the boxes with very thin adhesive tape(0.1mm), we have automatic four corners pasting and one by one boxes corner pasting machine.
Main Features
1. Fully computerized automatic control
2. Automatic fault detection
3. Feida feeding cardboard automatically
4. Four sets electric hot-melt-cut devices achieve angle pasting of unwrapped box in one process
5. Change mould and adjusting device quickly
6. Tape length can be adjusted
Product Name: Full Automatic Taping Machinery
Product Model: ZK-6040
Size of finished box: L (125-600mm) × W(50-400mm) × H(15-125mm)
Speed: 20-35PCS/min
Cardboard blank thickness: 0.7-3mm
Electrical Power: 4kw
Air Supply: 0.2-0.6Mpa
Tape Width: ≤ 19mm
Tape Melting Point: 150-180º C
Dimension: 2600mm(length)× 1500mm(width)× 2600mm(height)
N. W.: 2000kg
Paper wrap size
(A=width;B=length) |
Amin |
80mm |
|
Cardoard blank thickness
|
Min |
0.7mm |
|
Amax |
650mm |
Max |
3mm |
|
Bmin |
155mm |
Cardboard pile height |
1000mm |
|
Bmax |
850mm |
Speed(Pcs/Min) |
20-35 |
Box size
|
Lmin |
125mm |
Electrical power |
20kw |
|
Lmax |
600mm |
Air supply |
0.2-1.0MPa |
|
Wmin |
50mm |
tape |
width |
≤19mm |
|
Wmax |
400mm |
heatingºC |
150-180 |
|
Hmin |
15mm |
Net weight |
2000kg |
|
Hmax |
125mm |
Machine overall dimension |
L2.6XW1.5XH2.6m |
Zhongke Packaging Machinery Co., Ltd. Was established in 2002. It is the first leading enterprise in China to independently develop and create a series of automatic rigid box making machines. Founded the two major brands of "ZHONGKE" and "HEWANG Box King"The company took the lead of this industry in passing the international quality system ISO9001 certification, environmental protection system ISO14001 certification, Safety system ISO18000 certification, EU CE safety system certification, intellectual property management system GB/T29490-2013 certification. Zhongke covering an area of 100, 000. It is a private economic entity integrating independent research and development, design, production, sales and service. On the basis of drawing on the advanced technology of similar foreign products.
After 20 years of development, the company has established perfect sales network and integrated after-sale service system at domestic and abroad, which enables the company to provide timely, accurate and efficient services, and won good customer reputations. The products are sold all over in China and exported to more than 60 countries and regions such as Europe, America, Southeast Asia, South America, Middle East and Africa. The production, sales volume and scale are all ranked first in the same industry
Zhongkenese welcome the domestic and foreign merchants to visit us with investigation, negotiation and ordering!
Business Type: Manufacturer/Factory & Trading Company
Number of Employees: 158
Management System Certification: ISO 9001
International Commercial Terms: FOB, CIF
Terms of Payment: LC, T/T
Average Lead Time: Peak season lead time: one monthOff season lead time: one month
Number of Foreign Trading Staff: 1~3 People
Export Year: 2006-09-09
Export Percentage: 31%~40%
Main Markets: North America, Europe, Southeast Asia/ Mideast
Export Mode: Have Own Export License
Factory Address: 301#, Wanxiang Rd., Light Industry Base, Wanquan, Pingyang County, Wenzhou City, Zhejiang Pro., China
R&D Capacity: OEM
No. of R&D Staff: 11-20 People
No. of Production Lines: Above 10
Annual Output Value: Above US$100 Million
