Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd. >> Full Color Flexible LED Display. P16 Outdoor Full Color LED Display

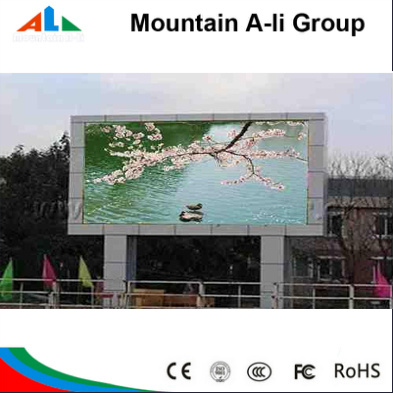

Full Color Flexible LED Display. P16 Outdoor Full Color LED Display

Name: Full Color Flexible LED Display. P16 Outdoor Full Color LED Display
Brand: china-manufacturer-directory.com
SKU: 762894035
Availability: InStock
Rating: 5 (40 reviews)

Supplier:	Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd.
Price:	US $ 600-650/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	p16 Outdoor LED display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:	250mm*256mm
Pixel Composing:	1r1g1b
Physics Pixel:	3906pixels/Sqm
Cabiet Size:	1024mm*1024mm
Brightness:	7000CD/M2
Power Consumption:	Max:1000W Average:350W
Color Temperature:	6500k-8500k
Lifetime:	90,000 Hours
Warranty:	2 Years
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Pitch:	16mm
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	350W / m²
Scanning Mode:	Static Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	FCC,ISO9001
Pixel Density:	3096dots/M2

Product Description

The specifications of modules
The specifications of modules
Items:	Parameter
Product Model:	P6 Full Color Led Module
Module size:	192mm*96mm
Pixel pitch:	6mm
Pixel density:	27777dots/m2
Pixel configuration:	RGB 3 in 1
Module resolution:	32dots(W)*16dots(H)
Module maximum power consumption	20W
Module Thickness:	2.7CM
Module Weight:	0.4kg
Driving method:	Constant Current Driving
Scanning method:	1/8 scan
Interface:	HUB75B
Brightness :	≥7000cd/m2
The specifications of cabinets
The specifications of cabinets
Cabinet size:	768mm x 768mm
Module quantity:	32pcs
Power supply:	5V/40A 5V/60A
Cabinet resolution :	128*128dots
Optimal viewing distance:	5M~50M
Optimal viewing angle:	160°(W) 120°(H)
RHWorking temperature:	(Work :-20ºC~+50ºC)
System operating humility:	10%-95%
The specifications of power supplier
The specifications of power supplier
Operating Voltage:	AC220V±10%
Average power consumption:	350W/H
Maximum power consumption:	≤600W/
Electric current :	≤20mA(single LED)
The specifications of control card
Control Panels :	Pentium4 or above
Operating system :	WIN98/2000/NT/XP
Control model:	Synchronization with PC
The specifications of the main technical parameters
The specifications of the main technical parameters
Driving device:	IC Constant Current Driving
Refresh rate:	≥600HZ
Grey scale:	RGB Each 256, can display 16.7M colors)
MTBF:	≥9000hours
Power switch:	Automatic Switch
Display Mode:	800600/1024768/1280*900

P16mm bigger LED display, Full color P16mm LED display,outdoor full color LED wall screen

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
