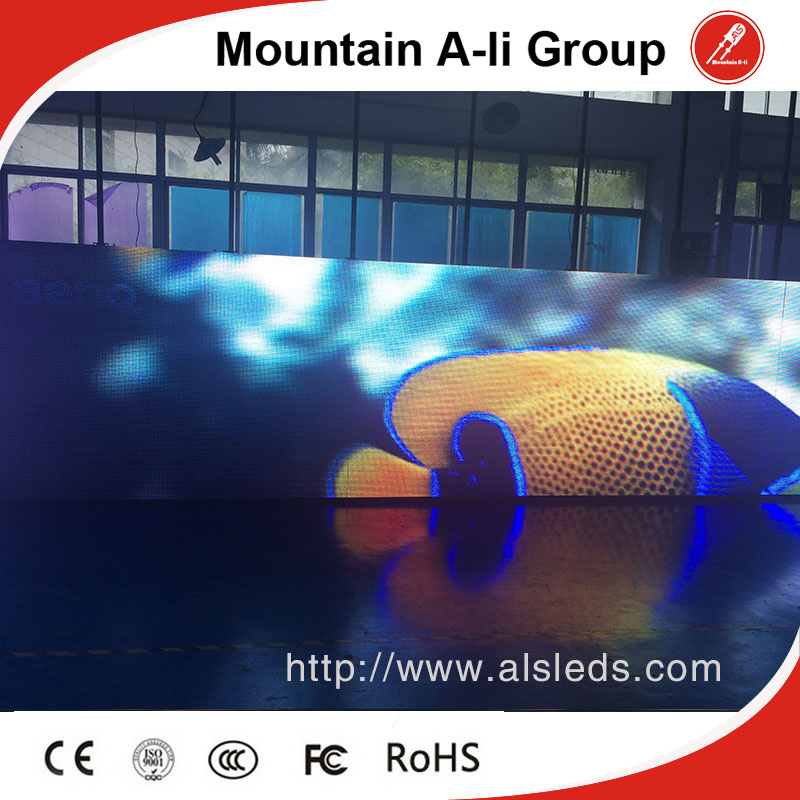

P10 LED Screen LED Sign LED Display

Name: P10 LED Screen LED Sign LED Display
Brand: china-manufacturer-directory.com
SKU: 762891665
Availability: InStock
Rating: 4.3 (108 reviews)

Supplier:	Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd.
Price:	US $ 600-700/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	P10 Outdoor LED Display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
P10 Module Size:160mm*160mm:	Cabiet Size:960mm*960mm
Max Power:	20W
Pixel Configuration:	1r1g1b
Module Resolution:	16dots(W)*16dots(H)
Module Thickness:	25cm
Driving Method:	Contast Current Driving
Scan Mothed:	1/4 Scan
Interface Way:	Hub75
Cabinet Composing:	36PCS
P10 LED Display Brightness:	≥7500CD/M2
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Pitch:	10mm
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	350W / m²
Pixel Density:	10000 dot / m²
Scanning Mode:	1/4 Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	FCC,ISO9001

Product Description

P10 led display screen led sign full color outdoor display 2years warranty , delivery time :10-15 days

P10 LED Screen led display sign led display
Unit Module	Item	parameter
	Model	P10 FULL Color Led Module
	Module size	160mm*160mm
	Pixel Pitch	10mm
	Pixel Density	10000dots/m2
	Pixel Configuration	1R1G1B
	Module Resolution	16dots(W)*16dots(H)
	Max power	20w
	Module Thickness	25cm
	Module Weight	0.5kg
	Driving Method	Constant Current Driving
	Scan Method	1/4 scan
	Interface Way	HUB75
	Brightness	≥7500cd/m2
Unit Module	Cabinet Size	960mmx960mm
	Cabinet Composing	36pcs
	Power supply Mode	5V/40A 5V/60A
	Cabinet Resolution	96*96dots
	Optimal Viewing Distance	10M-50M
	Optimal Viewing angle	160°(W)120°(H)
	Enviroment Temperature	Storage :-35ºC-+85ºC work :-20ºC-+50ºC
Power	Relative Humidity	10%-95%
	Operating Voltage	AC220V±10%
	Average power	350W/H
	Max power Consumption	≤700W/m2
	Current	≤20mA (Single LED )
Control system	Computer	Pentium4 or above P4 or above
	Operate system	WIN98/2000/NT/XP
	Control Mode	Synchronization with PC
Main technical parameter	Driving Device	IC Constant current driving
	Refresh Rate	≥600HZ
	Gray/Color	RGB each 256 grade, can display 16.7M clolor
	MTBF	≥9000hours
	Power Switch	Automatic Switch
	Display Mode	800600/1024768/1024*900
P10 LED Screen led display sign led display

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
