Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd. >> P4 Full Color Indoor Wall Mounted Video LED Display

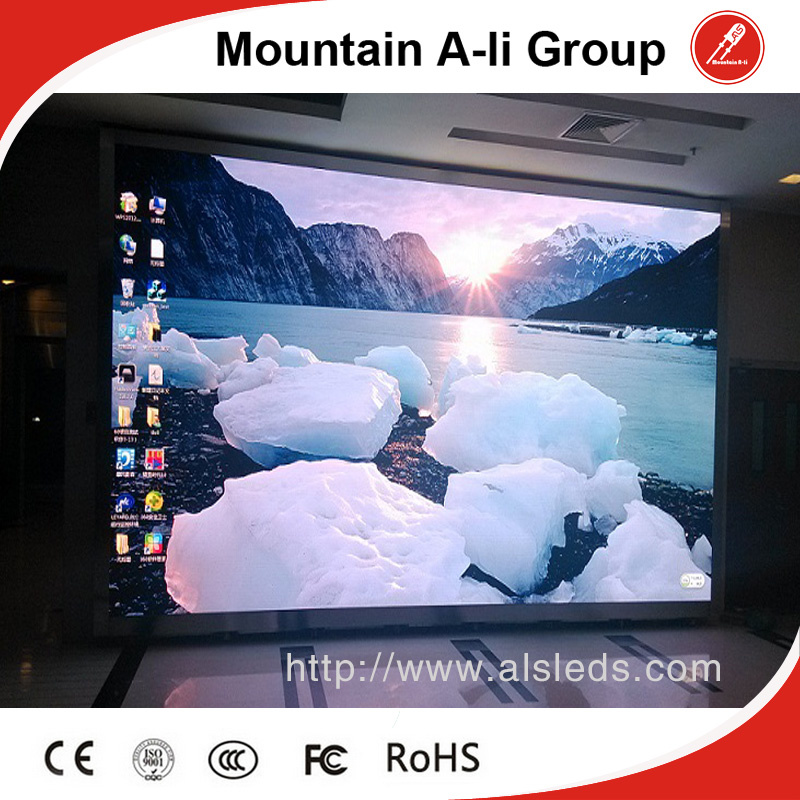

P4 Full Color Indoor Wall Mounted Video LED Display

Name: P4 Full Color Indoor Wall Mounted Video LED Display
Brand: china-manufacturer-directory.com
SKU: 775209135
Availability: InStock
Rating: 4.3 (20 reviews)

Supplier:	Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd.
Price:	US $ 700-800/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	P4 Indoor Full Color LED Display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:	256mm*128mm
Pixel Resolution:	64dots(W)*32dots(H)
Max Power Consumpion:	18W
Module Weight:	0.18kg
Brightness Of White Balance:	1500CD/M2
Best Viewing Distance:	4m~20m
Mtbf:	≥9000hours
Cabinet Size:	512mmx512mm
Optimal Viewing Angle:	160°(W) 120°(H)
Driving Device:	Constant Current Driving
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Pitch:	4mm
Pixel Configuration:	1R,1G,1B
Scanning Mode:	1/16 Scan
Display Type:	LED Video Display
Application:	Video
Certification:	EMC/FCC/ISO9001
Pixel Density:	62500dots/M2
System Operating Platform:	Win98/2000/Nt/XP
IP Rating:	IP31

Product Description

We are the professional manufacture of LED display, we only give the best quality product to our customer.

Some of the certificates

Parameters

The specifications of modules
The specifications of modules
Items	Parameter
Product Model	P4 Indoor Full Color LED Module
Module size	256mm*128mm
Pixel pitch	4mm
Pixel density	62500dots/m2
Pixel configuration	1R1G1B
Module resolution	64dots(W)*32dots
Module maximum power consumption	18W
Module Thickness	1.3CM
Module Weight	0.18kg
Driving method	Constant Current Driving
Scanning method	1/16scan
Interface	HUB75-A
Brightness	≥1500cd/m2
The specifications of cabinets
The specifications of cabinets
Cabinet size	512mm*512mm
Module quantity	16pcs
Power supply	5V/40A 5V/60A
Cabinet resolution	128*128dots
Optimal viewing distance	4M~20M
Optimal viewing angle	160°(W) 120°(H)
RHWorking temperature	(Work :-20°C~+60°C)
System operating humility	10%-95%
The specifications of power supplier
The specifications of power supplier
Operating Voltage	AC220V±10%
Average power consumption	350W/H
Maximum power consumption	≤160W/m2
Electric current	≤20mA(single LED)
The specifications of control card
Control Panels	Pentium4 or above
Operating system	WIN98/2000/NT/XP
Control model	Synchronization with PC
The specifications of the main technical parameters
The specifications of the main technical parameters
Driving device	Constant Current Driving
Refresh rate	≥600HZ
Grey scale	RGB Each 256, can display 16.7M colors)
MTBF	≥9000hours
Power switch	Automatic Switch
Display Mode	800600/1024768/1280*900

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
