Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd. >> Full Color P10 RGB Outdoor LED Display

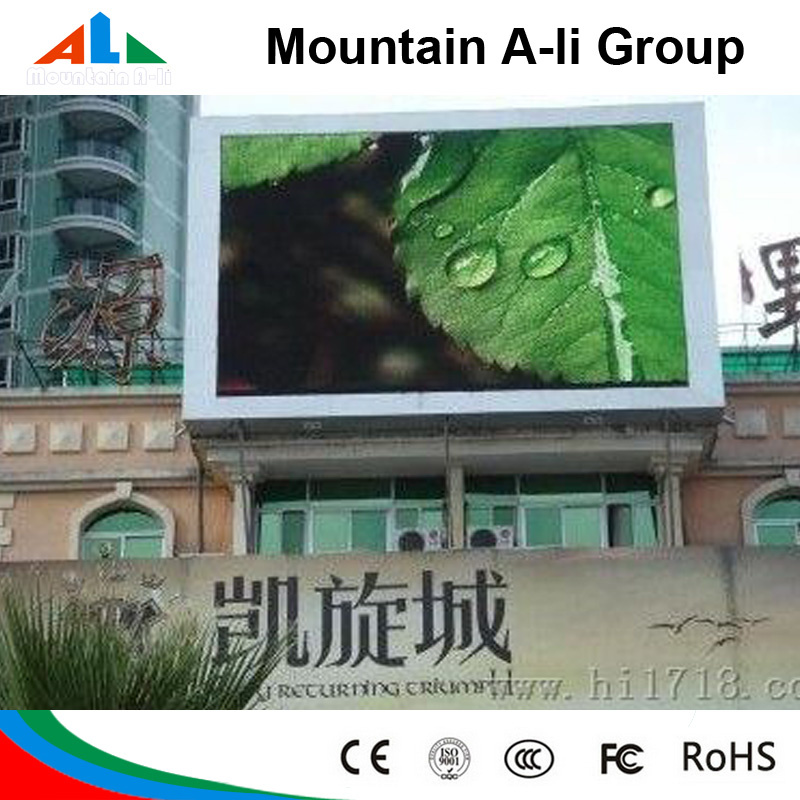

Full Color P10 RGB Outdoor LED Display

Name: Full Color P10 RGB Outdoor LED Display
Brand: china-manufacturer-directory.com
SKU: 745994945
Availability: InStock
Rating: 4.7 (91 reviews)

Supplier:	Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd.
Price:	US $ 680-900/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CIP,EXW

Product Specifications

Prod Model:	p10 outdoor full color led display
Markets:	North America,South America,Southeast Asia,Mid East,Western Europe
Module Size:	160mm*160mm
Module Resolution:	16dots(W)*16dots(H)
Max Power:	20W
Module Thickness:	25cm
Module Weight:	0.5kg
Brightness:	7500CD/M2
Optimal Viewing Distance:	10m~50m
Control Mode:	Synchronization with PC
Display Type:	LED Video Display
Tube Chip Color:	Full Color
IP Rating:	IP65
Application:	Advertising
Pixel Configuration:	1R, 1G, 1B
Pixel Pitch:	10mm
Display Function:	Video Display
Scanning Mode:	1/4 Scan
Certification:	FCC /IP65
Pixel Density:	10000 dot / m²
Average Power Consumption:	600W / m²

Product Description

P10 Outdoor LED Display Screen For Video

Application and Market
1. Application
Wide applied in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe

Our service
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM&ODM, any your customized lightings we can help you to design and put into product
3. Distributoership are offered for your unique design and some our current models
4. Protection of your sales area, ideas of design and all your private information
5. Top quality+Reasonable price+Responsible After Service=Successful & Win

Trade Terms
1. Package: Anti-shaking wooden package, Air flight case or Carton package
2. Payment: T/T, 30% deposits before production, 70% balance to be paid before delivery
3. Shipping freight are quoted under your requests
4. Shipping port: Shenzhen, Mainland China
5. Warranty time: 7years
6. Delivery time: 5-12working days

Description	Technical parameter
Unit module	Module size	160*160mm
	Pixel pitch	10mm
	Pixel density	10, 000dots/m2
	Pixel configuration	1R1G1B
	Led specification	DIP348
	Pixel resolution	W: 16dots*H: 16dots
Cabinet	Dimension	960mm960mm150mm
	Quantities of module	36pcs
	Power supply	6pcs
	Thermal discharge	Fan*2pcs
	Total weight	50kg
	Best viewing angle	10-100m
	Temperature	Storage: -35degree~+80degree
	Temperature	Working: -35degree~+85degree
	Thickness	15cm can adjustable
	Remarks: cabinet size can changed, upon project need.
Power	Working voltage	AC220V/110V± 10%
	Average power consumption	300-400W
	Max. Power consumption	≤ 600W/sqm
	Current	≤ 20mA(single LED)
Control system	CPU	Pentium4 or above
	Operating system	WIN98/2000/NT/XP
	Control method	Synchronization
Main technical parameter	Driving device	1/4scanning
	Drive type	Constant Current driver IC
	Refresh frequency	≥ 800Hz
	Grey scale/colors	256 levels of each color(R/G/B)/16.7M color
	Brightness of white balance	More than 8000cd/sqm
	Brightness adjustment	256 levels of each color(R/G/B)by software
	Operating ambient humidity	10%--95%
	Video signal	PAL/NTSC
	Control system	DVI display card+full color controller card
	MTBF	≥ 10, 000hours
	Life span	≥ 100, 000hours
	Flatness	Tolerance of interpixel ≤ 0.3mm
	Flatness	Tolerance of modules clearance≤ 0.6mm
	Power switch	Automatic switch
	Display mode	960x960
Software	LED media player

Shenzhen Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.

Features:

1) With good lightening accordance and no mosaic

2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment

3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced

4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment

5) Uses real pixels rather than virtual pixels, better viewing effect

Applications:

LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
