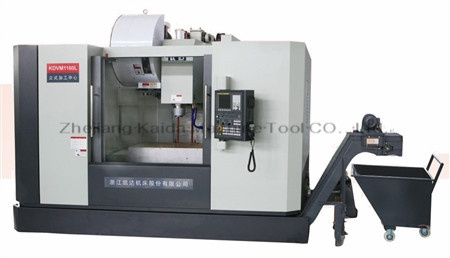

Full Function CNC Machine Tools Kdvm1160L-Fanuc

Name: Full Function CNC Machine Tools Kdvm1160L-Fanuc
Brand: China-Manufacturer-Directory.com
SKU: 755862115
Availability: InStock
Rating: 4.6 (137 reviews)

Supplier:	Zhejiang Kaida Machine Tool Co., Ltd.
Price:	US $ 45000-60000SET
Min Order:	1SET
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	KDVM1160L-FANUC
Markets:	North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe
Table Size:	1250*600mm
Max Table Load:	800kg
Spindle Taper Bore:	Bt40-Bt50
Taper Bore Of Spindle:	Bt40/Bt50
Spindle Speed:	50-8000rpm/50-6000rpm
Motor:	11/15kw
Process Usage:	Metal-Cutting CNC Machine Tools
Movement Method:	Linear Control
Control Method:	Closed-Loop Control
Numerical Control:	CNC/MNC
Performance Classification:	High-End CNC Machine Tools

Product Description

PRODUCT FEATURES:
Wide base design with X, Y and Z three sets of preeision linear roller ways for the machine.
Ball screws are pre-stretched to eliminate back play.
Suitable for both rough and finishing cut.

ITEMS	KDVM1160L
Travel
X travel	1100 mm
Y travel	600 mm
Z travel	600 mm
Distance between spindle center and column guide way	640 mm
Distance between spindle end and table	120~720 mm
Table
Table size	1250× 600 mm
Max. table load	800 Kg
T-slot ( width× number× space )	18× 5× 100 mm
Spindle
Taper bore of spindle	BT50
Spindle speed	6000 rpm
Main motor power	11/15 KW
Cutter removal from spindle	Pneumatic
Feel
X, Y travel speed	0-24 m/min
Z travel speed	0-20 m/min
X, Y, Z Motor torque	22 Nm
Repeataqbility(X/Y/Z)	± 0.003 mm
Tool chinging system
Tool number	Horizontal type: 24
Max. tool size(with adjacent tool)	Ø 112 mm
Max. tool size(Without adjacent tool)	Ø 200 mm
Max. tool length	350 mm
Max. tool weight	18kg
Tool changing time(cut to cut)	3.8s
Other
Min. displacement(X/Y/Z)	0.001 mm
Min. Input(X/Y/Z)	0.001 mm
Overall dimensilns(L× W× H)	3460× 2490× 2760 mm
Net weight	6400 Kg

Zhejiang Kaida Machine Tool Co., Ltd

Zhejiang Kaida Machine Tool Co., Ltd is located in Zhuji City, China.And only 45 minutes away from Hangzhou Airport.

Our company was founded in 1952 and has a history of more than 60 years in manufacturing lathes, also with a total area of 32 hectares and 1000 staff.Through reformation in 1997, we have been changed from a state-owned enterprise to a joint-stock private enterprise.We got ISO9001 certificate in 1997, CE certificate in1999 and ISO14001 certificate in 2005.

We have a wide variety of products, which can meet different customers' needs:Horizontal machining center, vertical machining center, CNC slant bed lathe, CNC flat bed lathe, manual lathe.

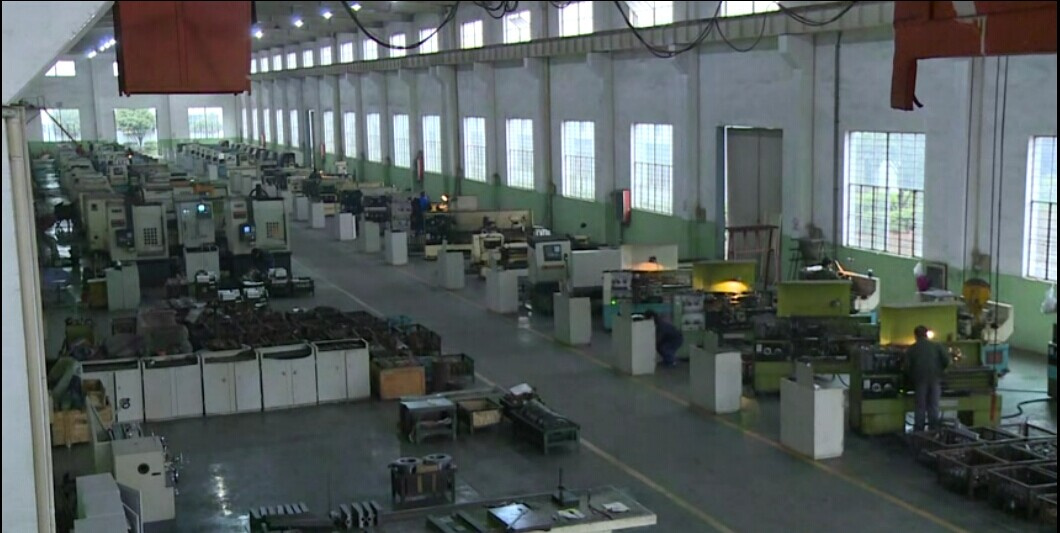

We have a full set of equipment including forging, machining, heat-treating, sheet metal processing, assembling and painting.Specialized technicists in every field enable us to assist our customer in use, learning and programming.Efficient service earn us trust and loyalty from customer.

As an established company, professional competence and perfect service make us to exploit and develop a huge international marketing net.Our export experience started from European and America.We have exported to more than 100 countries.Our main markets are Europe, America, South America, India, Southeast Asia, South Africa.

We are fully confident to meet any challenges or opportunities that present to us.
