Product Specifications
| Prod Model: |
CH1440 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Max. Swing Over Bed: |
356mm |
| Max.Swing Over Cross Slide: |
210mm |
| Max.Swing Over Gap: |
508mm |
| Effective Length Of Gap: |
180mm |
| Center Distance: |
1000,1500mm |
| Bed Width: |
260mm |
| Spindle Hole: |
40mm |
| Spindle Nose: |
ISO-D4 |
| Spindle Taper: |
Mt5 |
| Spindle Speed: |
40-1800rpm |
| Type: |
Horizontal Lathe |
| Automatic Grade: |
Manual |
| Precision: |
High Precision |
| Power Source: |
Mechanical Drive |
| Setting Mode: |
Floor-type |
| Controlling Mode: |
Artificial |
| Tool Holder: |
Single-tool Holder CNC Lathe |
| Processing Accessory: |
Universal Lathe |
| Certification: |
ISO14001 |
Product Description
1. standard accessories

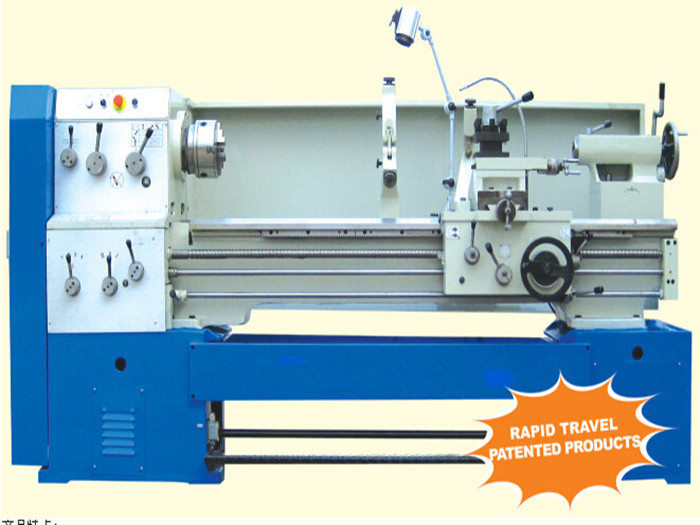

| 1 | CH1440 gap bed lathe |
| 2 | follow rest |
| 3 | steady rest |
| 4 | three jaw chuck |
| 5 | four jaw chuck |
| 6 | face plate |
| 7 | driving plate |
| 8 | change gear |
| 9 | oil gun |
| 10 | rotary center |
| 11 | thread chasing/cutting dial |
| 12 | reducing sleeve |
2. optional accessories
| 1 | CE protection |
| 2 | electric magnetic brake |
| 3 | digital readout |
3. Payment terms: 30 % T/T, and the balance before delviery.
Warranty:12 months
Delivery: 7-15 working days
