Product Specifications
| Prod Model: |
GB |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measurement Range: |
50-3250mm |
| Analog Signal: |
4~20madc(Min. /Max. Load: 0/500 Ohm) |
| Current Signal For Choice: |
0~20madc(Min. /Max. Load: 0/500 Ohm) |
| Voltage Signal For Choice: |
0~10V(Min>5000 Ohm) |
| Analog Signal For Choice: |
-10~+10VDC(Min. Load>5000 Ohm) |
| Resolution: |
Analog Output 16 Binary Digit D/a |
| Function: |
Measurement |
| Certification: |
CE |
| Mathematical Model: |
Linear |
| Material: |
Stainless Steel |
| Customized: |
Customized |
| Condition: |
New |
| Signal: |
Ssi Output |
Product Description

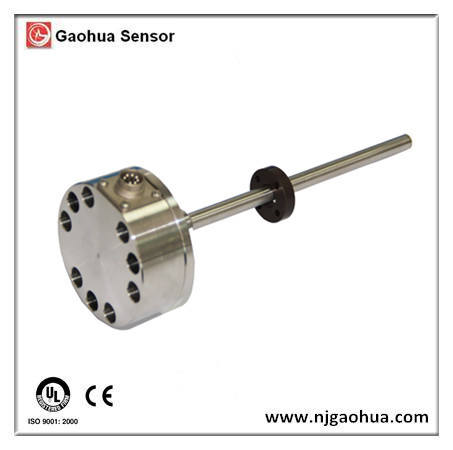

The magenetostrictive linear position sensor
GB Series--Feature:
Compact electronic warehouse, total thick only 34mm.
End flange installation, save installation space
Sturdy, reliable, oil proof and stain resistance.
Absolute location output, no need to return to zero.
Non-contact measurement, no physical deterioration forever.
Introduction:
The dimension of the GB series sensor electronic head is 34mm, suits for the Hydraulic cylinder which have a U-type earring internal installation. Compact structure, super anti-jamming capability. Fully sealed design, effectively for oil proof, stain resistance, water&gas proof. Widely used in engineering machinery, power machinery.
| Measurement range | 50-3250mm |
| Output signal | 4~20mADC(min./max. load:0/500 Ohm) |
| 0~10VDC(min.load>5k Ohm) |
| Resolution | Analog output 16 binary digit D/A |
| Nonlinearity degree | <±0.01% F.S.(min.±50μm) |
| Repeatability precision | <±0.001% F.S.(min.±1μm) |
| Refresh time | >1.5kHz |
| Electric feature |
|
| Outgoing line | Water-proof connector,or 6 lamp pith aircraft connector |
| Input voltage | 24VDC(-15/+20%) |
| Working current | <60mA(changing depends on F.S.) |
| Polarity protection | max.-30VDC |
| Overvoltage protection | max.36VDC |
| Insulating ability | 500V(between the signal GND and the housing) |
| Fault indication | No |
| Installation& Accessories |
| Direction | Random |
| Mode | 6 end flange pressure seal M6*16 |
| Moving Magnetic | Magnetic ringsOD33, Magnetic rings OD25.4, |
| Working condition |
| Magnetic speed | Random |
| Ambient temperature | "-40ºC~+85ºC |
| Humidity/Dew point | Humidity 90%,No dew |
| Temperature coefficient | <30ppm/ºC |
| Grade of electrical protection | Water-proof connector output IP68 ,or aircraft connector IP67 |
| Anti-pressure ability | 35MPa(Continuously)/70MPa(Peak value) |
| Structure&Material |
| Head | Stainless steel 303L |
| External tube for protection | Stainless steel 304L |
| Flange fixed | Stainless steel 304L |
Nanjing Gaohua Technology Co., Ltd is located in Nanjing, Jiangsu Province, China and built in 2000, which is an ISO9001: 2008, CE and RoHS qualified OEM SENSOR-manufacturer and professional exporter (exporting to more than 20 countries). Our present workshop covers about 4000 square meters, meanwhile we have our own advanced sensor-developing center, production center, purification center, testing center and metal processing center.
We have own patents of key technology and concentrates on pressure sensors R&D, producing variety of sensors/ transducers/ transmitters (such as pressure, temperature, humidity, Acceleration, Angle, Position, Level etc. ).
With reliable quality and reasonable price, our products are widely used in the process measurement &control of Engineering machinery/ Automotive/ Medical/ Rail transit/ Mine/ Ship/ Internet industry etc.
For important projects which refer to various sensors, we offer one-stop service including customized sensors, standard production and agent procurement.
We looking forward to coorperate with you!
