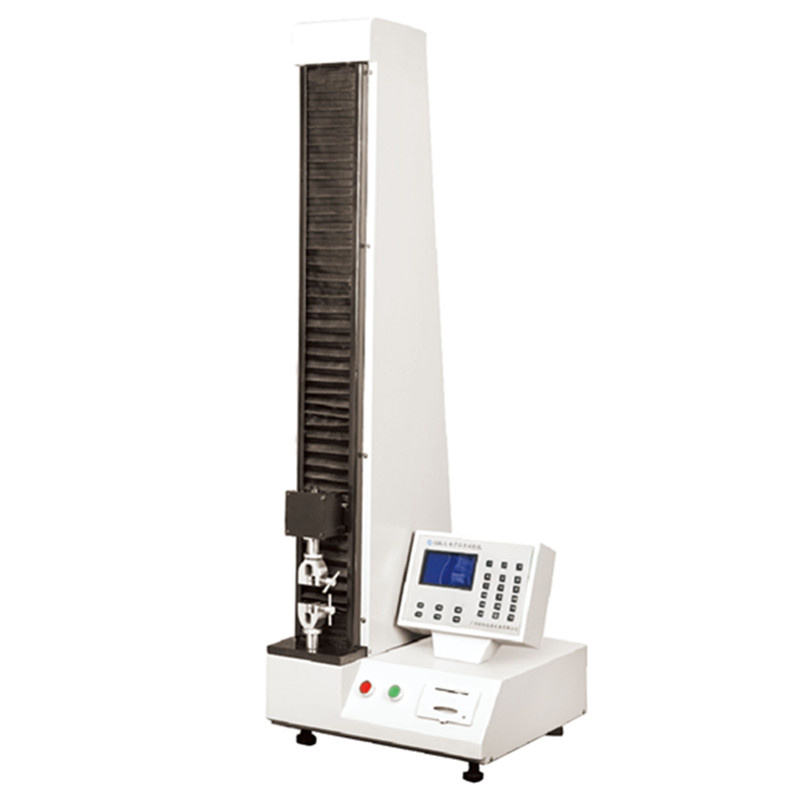

GBL-L Elongation and Break Tester

Name: GBL-L Elongation and Break Tester
Brand: china-manufacturer-directory.com
SKU: 709993395
Availability: InStock
Rating: 4.9 (36 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	GBL-L

Product Description

GBL-Lensile tester is applicable for plastic film, aluminous plastic pipe, compound wrapping material, tackiness agent, textile fabric, fiber, wire and cable, paper and adhesive tape and the like to test and analyze the mechanical properties, such as tension, heat sealing, and peeling, etc. Parameters including stretching resistance, vertical extensibility, and tensile strength and so on can be calculated out automatically according to the standards, such as GB, JIS, ASTM, and DIN, making it ideal for the enterprises, universities and colleges, scientific research institutions, testing institutions and teaching and research in schools.

Features
With the force measurement range within 0-300N, it can test tensile strength, extensibility at break, peel force, peeling strength and heat-sealing strength.
The special instrument for control survey adopts the newly developed monolithic microcomputer with powerful function, precise measurement and simple operation.
The test run can be safe and reliable with many protected modes.
High sampling rate (50 times per second) makes the test data more precise.
Vertical column structure of desk-top type is beautiful and elaborate in appearance. Seat operation is comfortable and natural.
It is equipped with the LCD screen display and can print the test result with the precision reaching the grade of 0.5.

Specifications
Force measurement range: 0-300N, 1400% elongation, 0-10N peeling
Force measurement precision: Within ± 1% of the indicating value
Force measurement resolution: 1/ 50, 000 of the full range of the sensor
Test speed: 100, 200, 250mm/min (three speed changing)
Displacement precision: Within ± 1% of the indicating value.
Effective test travel: 800mm
Power supply: AC220V/ 550W
Dimension: 600(L)mm× 500(W)mm× 1300(H)mm
Weight: 65kg
