Ambient Condition
1 Ambient air temperature: -5° ~ +40° C
2 Average temperature not more than +35° C wihin 24 hours;
3 Indoor installation
4 use site shall not exceed 2000M;
5 air relative humidity: Maximum temperature +40° C at most 50%. Allowed major relative humidity at cryogenic temperature;
6 Equipment installation with vertical slope not more than 5%;
7 There is no risk of fire hazard and explosion, non conductive dust, corrosive gas and strong vibration.
8 Any specific requirements, please consult with manufacturer for compromise settlement

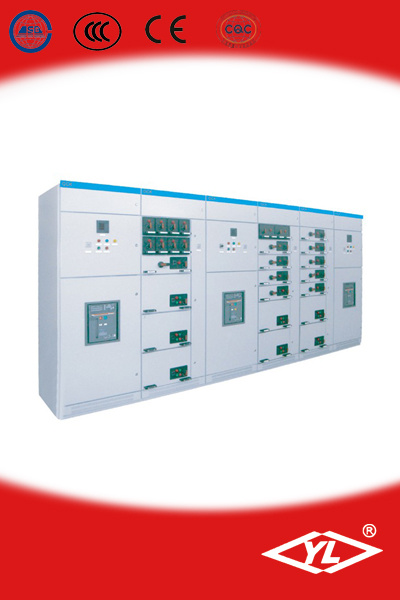

GCS series low voltage withdrawable type switch cabinet (short for "cabinet") is developed by united professional designers according to the requirements of related business departments, electric power users and design organizations. With high technical performance index, it can meet the demands of electric power marketing development, and compete with existing products. The equipment has currently been widely used in different places.
Name | Unit | Data |
Rated working frequency | Hz | 50 |
Rated working voltage | V | 380,660 |
Rated insulation voltage | V | 660 |
Rated working current | Level of bus | A | 630~3200 |
Vertical bus | | 1000 |
Rated short time withstand current | Level of bus | A | 80kA(Values)1s |
Vertical bus | | 80kA(Values)1s |
Rated peak withstand current | Level of bus | A | 176kA |
Vertical bus | | 110kA |
The main circuit connector | A | 200,400,630 |
Auxiliary circuit connectors | A | 10 |
Power frequency withstand voltage 1 min | V | 2500 |
Control motors maximim capacity | KW | 155 |
Protection level | | IP40 |
Mode of operation | | Local,Distance,Automatic |
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
