Jiangsu Harmonious Eternity International Trade Co., Ltd. >> Ggd High Quality Low Voltage Switchgear

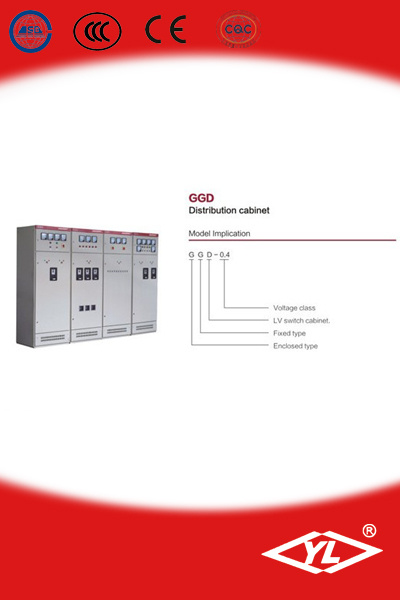

Ggd High Quality Low Voltage Switchgear

Name: Ggd High Quality Low Voltage Switchgear
Brand: china-manufacturer-directory.com
SKU: 733346965
Availability: InStock
Rating: 4.6 (67 reviews)

Supplier:	Jiangsu Harmonious Eternity International Trade Co., Ltd.
Price:	US $ 10000-20000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	GGD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	as Your Request
Model:	Ggd
Delivery:	15-20 Days
Product:	Ggd Low Voltage Switchgear
Type:	Power
Structure:	Open Frame

Product Description

Conditions of Use
1. Ambient air temperature is not higher than +40 ° C, not lower than -5 ° C; 24H shall not exceed the average temperature of +35 ° C.
2. Indoor installation, use no more than 2000m above sea.
3. The ambient air relative humidity at the highest temperature is +40 ° C less than 50%, lower temperature to allow a greater relative humidity (eg: +20 ° C 90% when), should take into account the changes due to temperature can be occasionally produce condensation.
4. Equipment installation with the vertical gradient of not more than 5 ° C.
5. Equipment should be installed in the absence of severe vibration and shock, and the lack of electrical components to place erosion.
6. Users have special requirements can through consult with the manufacturer.

The basic electrical parameters of electrical performance
Rated voltage: 380V
Rated current: 400-3200A
Breaking capacity: Rms (KA): 15-50
Peak (KA): 30-105

Type	Rated voltage(V)	Rated current(A)	Rated short circuit breaking current(A)	Rated short time withstand current(kA)	Rated peak value withstand current(kA)
GGD1	380	1000, 600, 400	15	15	30
GGD2	380	1500, 1000	30	30	63
GGD3	380	3150, 2500, 2000	50	50	105

Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
