Product Specifications
| Prod Model: |
GD-0754 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Apparatus: |
Emulsified Asphalt Cohesion Bond Force Tester |
| Application: |
Emulsified Asphalt Adhesive Force Meter |
| Function: |
Emulsified Asphalt Cohesion Test Analyzer |
| Device: |
Emulsification Bitumen Slurry Seal Adhesion Tester |
| Test Item: |
Initial Setting & Opening Time of Slurry Mixtures |
| The Diameter Of The Rubber Pad: |
28.6mm |
| The Thickness Of The Rubber Pad: |
6.4mm |
| The Hardness Of The Rubber Pad: |
HRC60 |
| The Max Pressure: |
1MPa |
| Circular Test Mode: |
60mm*6mm;60mm*10mm |
Product Description

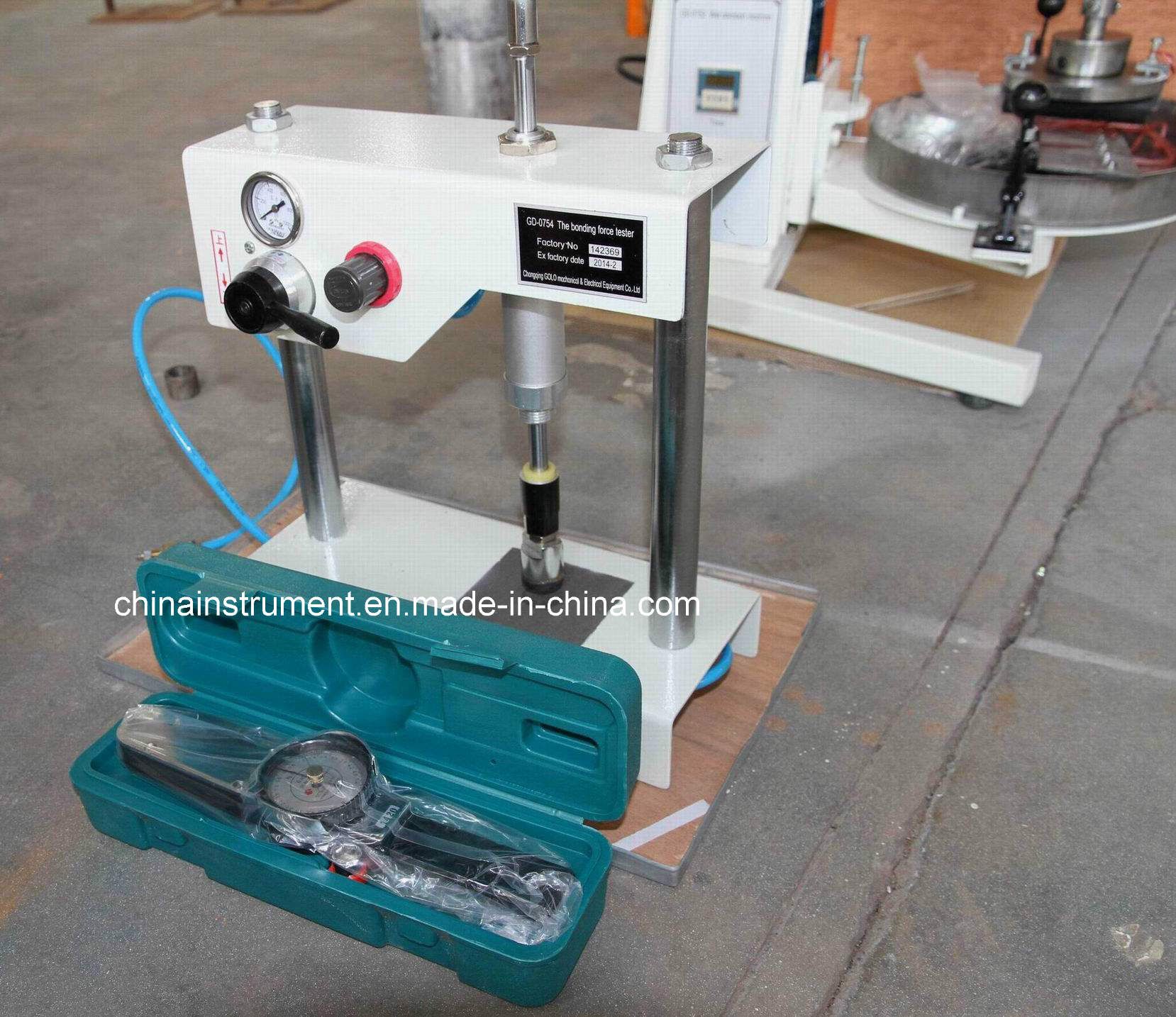

GD-0754 Emulsified Bitumen Slurry Seal Cohesive Force Tester
Introduction:
1. GD-0754 Emulsified Asphalt Cohesion Bond Force Tester is designed and made as per T 0754-2011 "Cohesive Force Test for Slurry Mixtures" in the Traffic Standard of People's Republic of China JTG E20-2011 "Highway Engineering Bitumen and Bituminous Mixtures Test Code" .
2. GD-0754 Emulsified Asphalt Cohesion Bond Force Tester is used to confirm the initial setting time and opening time of slurry mixtures .
Main Technical Characteristics:
1. GD-0754 Emulsified Asphalt Cohesion Bond Force Tester adopts desktop structure .Novel design ,reasonable structure and convenient to use .
2. The structure design of the instrument ,the specification size of the test apparatus ,act ,each meets the requirement of T 0754-2011 standard .
3. GD-0754 Emulsified Asphalt Cohesion Bond Force Tester is convenient to carry .And it can be used both in lab and on site ,and it widely used in the construction organizations ,scientific research institutes to analysis and confirm the emulsified asphalt and aggregate bond degree .
Main Technical Specs:
| 1 | The diameter of the rubber pad | Φ28.6mm |
| 2 | The thickness of the rubber pad | 6.4mm |
| 3 | The hardness of the rubber pad | HRC60 |
| 4 | The max pressure | 1Mpa |
| 5 | Circular test mode | Φ 60mm*6mm;Φ60mm*10mm |
| 6 | Torque spanner | (0-5)N？m |
| 7 | Power supply | AC 220V+10%;50Hz |
Choice of the Accessories:
1. Balance :weigh 500g ,reciprocal sensibility is less than 0.1g
2. Bake oven :with forced draft ,the temperature can be controlled in (60+3)ºC
3. Air compressor :AU1511 compressor (recommend)
