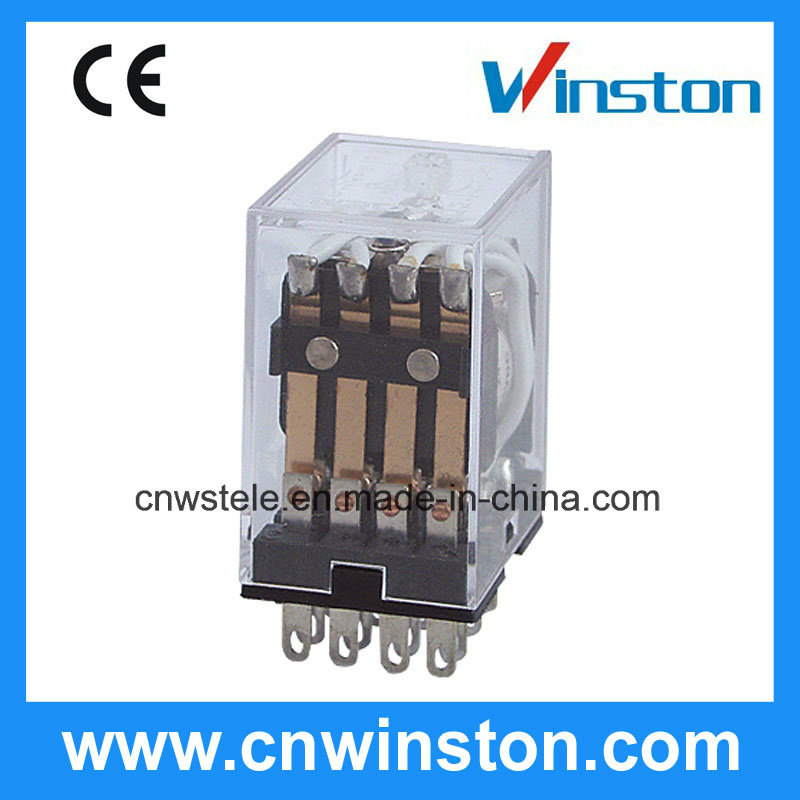

General Purpose Electromagnetic Relay (LY1, LY2, LY3, LY4)

Name: General Purpose Electromagnetic Relay (LY1, LY2, LY3, LY4)
Brand: china-manufacturer-directory.com
SKU: 744548075
Availability: InStock
Rating: 4.3 (138 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 1.5-3/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	LY1, LY2, LY3, LY4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Brand:	Winston
Ambient Temperature:	-25-55 Degree
Mounting Form:	P.C.B & Socket
Dimesions(mm):	27.521.535
Contact Form:	1z
Contact Capacity:	10A 250V AC
Manufacturer:	OEM
Condition:	Original New

Product Description

Specification

10A transfer contacts
Including LED
Various terminal types
Various terminals available
Rated voltage: DC 6 to 220V AC 6 to 380V
Rated power: DC≤1.5W AC≤2.5VA

CLASSIFICATION		MINIAURE POWER RELAY SERIES
MODEL		LY1,-S,-N,-F,-O	LY2,-S,-N,-F,-O	LY3,-S,-N,-F,-O	LY4,-S,-N,-F,-O
DIMESIONS(mm)		27.521.535	27.521.535	27.521.535	27.53135
CONTACT FORM		1Z	2Z	3Z	4Z
CONTACT CAPACITY		10A 250V AC
COIL VOLTAGE	DC	6220V
	AC	6380V
COIL POWER		AC2.5VA DC1.5W
PICK-UP		80% max
DROP-OUT		AC 30% mix DC 10% mix
CONTACT RESISTANCE		50mΩ
INSULATION TESISTANCE		100mΩ
LIFE	ELECTRICAL	105 times
	MECHANICAL	107 times
DIELECTRIC STRENGTH	BETWEEN OPEN CONTACTS	1000v rms
	BETWIN COIL&CONTACT	1500v rms
MOUNTING FORM		P.C.B & Socket
OPERATING TEMPERATURE		-40+55
WEIGHT		About 35g	About 35g	About 53g	About 70g
LIKE PRODUCTS		HH61P	HH62P	HH63P	HH64P
FITTED SOCKET		PTF08A PTF08A-E PT-08	PTF08A PTF08A-E PT-08	PT-11 PTF11A	PTF14A PTF14A-E PT-14
REMARKS		with lamp:-N,FLANGE:-F with bottom:-S,PCB:-O

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms	FOB ,CIF ,CFR,EXW,DDP
Payment terms	T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery

Yueqing Winston Electric Co., Ltd.Is not only an exporting company, but also a professional manufacturer in China.We have our own production base.The products we professionally deal with are switching power supplies, sensors, relays, voltage stabilizers, AC contactors, circuit breakers, distribution boxes, industrial plugs & sockets and others.Since we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive prices.

Our company is located in Wenzhou - the Electric Capital of China.We specialize in developing, manufacturing and distributing low voltage & high voltage electrical products.

We are an ISO9001:2000 certified company.We have obtained many certificates, such as CCC, CE, CB, GS and RoHS.Stability, expertise and technological innovation are the core stones of our business strategy.

Aiming at reliable product quality and the highest customer satisfaction, we are consistently deepening enterprise inner reform and fully carry out a quality guarantee system.With special cultivation of employees, high investment on production facilities and R&D as well as a wide range of products, we advocate "technology innovation, business honesty and trust and quality first" as our basic principle, trying to develop into a world-class electrical manufacturer with constant efforts.
