General Purpose Industrial Power Mounted Electromagnetic Relay with CE

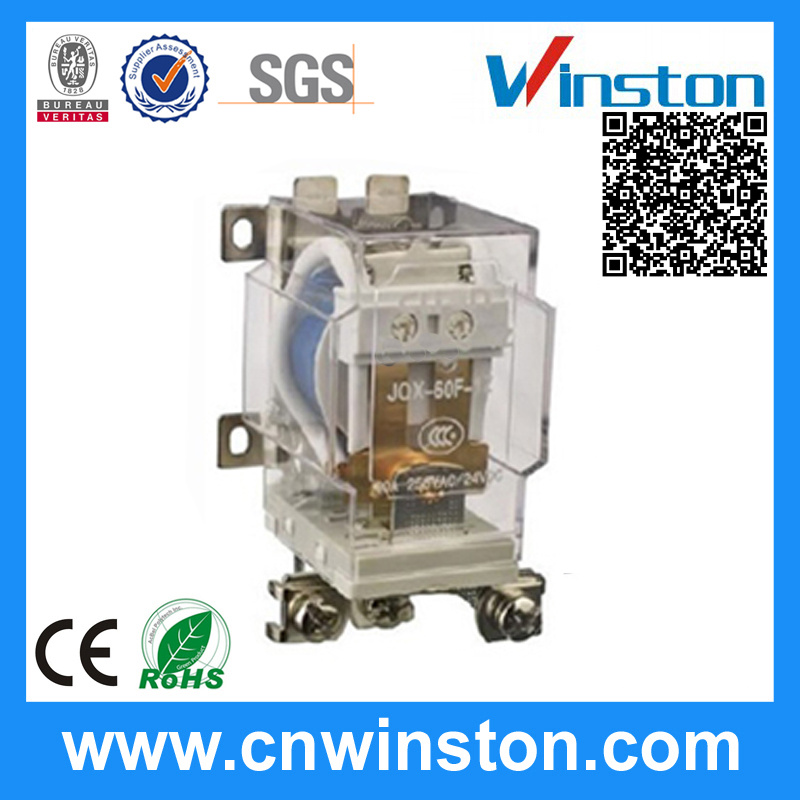

Name: General Purpose Industrial Power Mounted Electromagnetic Relay with CE
Brand: China-Manufacturer-Directory.com
SKU: 771437515
Availability: InStock
Rating: 4.9 (61 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 2.3-3.5/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	JQX-60F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Brand:	Winston
Protect Feature:	Sealed
Contact Load:	High Power
Ambient Temperature:	-40~-60degree
Weight(G):	160g
Outline Dimension:	45.84667(mm)
Humidity:	95% R.H.+40%
Mounting Form:	Welding
Contact Form:	1z
Manufacturer:	OEM

Product Description

Product Description

Size: 45.8*46*67
Terminal layout: 1Z, 1H, 1D
Contact capacity: AC: 60A 250V; DC: 60A 24V
Contact resistance (mΩ): ≤50mΩ
Insulation resistance (mΩ): ≥1,000mΩ
Dielectric strength: BOC: 1500VAC; BCC: 2,500VAC
Coil nominal voltage: AC: 6 to 380V; DC: 6 to 220V
Coil nominal power: AC: ≈2.0W; DC: ≤2.0W
Electric life (ops): 100,000
Mechanical life (ops): 10,000,000
Operating temperature (oC): -40 ~ +60
Weight (g): ≤160

art NO.			HHC71G(JQX-60F)
Dimension			60.24546
Contact Feature	Form		1A,1B,1C
	Rated load		60A
	Max switchingvoltage		250VAC/30VDC
	Contact resistance		≤100mΩ
	Material		Silver Alloy
	Electrical life		≥1*105
	Mechanical life		≥1*107
Operate voltage (25?)			DC:≤75%*Rated voltage
			AC:≤80%*Rated voltage
Release voltage (25?)			DC:≥10%*Rated voltage
			AC:≥30%*Rated voltage
Maximum voltage (25?)			110%*Rated voltage
Normal coilvoltage		DC	6-220V
		AC	6-380V
Normal coil power		DC	2.0W
		AC	5.0VA
Pick-up time(Ratedvoltage)			≤25ms
Release time(Ratedvoltage)			≤15ms

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.
