General Purpose Industrial Power Socket Mounted Electromagnetic Relay with CE

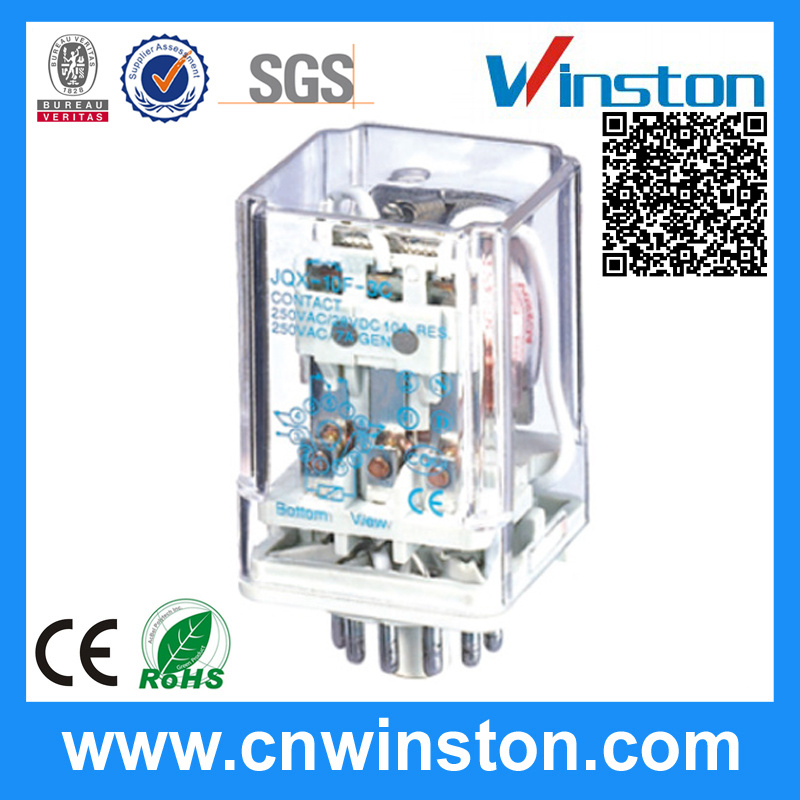

Name: General Purpose Industrial Power Socket Mounted Electromagnetic Relay with CE
Brand: China-Manufacturer-Directory.com
SKU: 771390605
Availability: InStock
Rating: 4.3 (56 reviews)

Supplier:	Yueqing Winston Electric Co., Ltd.
Price:	US $ 3.3-4.3/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	JQX-10F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Eastern Asia,Western Europe
Brand:	Winston
Protect Feature:	Sealed
Contact Load:	Low Power
Ambient Temperature:	-40~-55degree
Weight(G):	85g
Outline Dimension:	34.534.552(mm)
Humidity:	95% R.H.+40%
Mounting Form:	Socket
Construction:	Dust Vover
Manufacturer:	OEM

Product Description

Product Description

1,Miniature,light,high sensitivity,long life.

2, 2 group, 3 group (10A) contact transfermation are available.

3,Installation method like PCB print layout,Socket type,flange type are avaible.

4,Indicator light and diode are optional.

5.Silver alloy contact, with the features of heat resistance,shock resistance,high flame retardant refractive index, is used to make the casing.

6.Best quality grass and integral punch forming method are adopted,resulting in outstanding conduction.

7.Our company has 7 years exported experiences , we are an enterprise specialized in design , production and sales of electric equipment .

8.Electromagnetic relay passed,CE&RoHS,CQC,UL.

9.OEM/ODM Service.

characteristics
Contact Form				2C 3C
Contact Resistance				100mΩ (at 1A 24VDC)
Contact Rating				2C: 10A 250VAC/30VDC 3C: (NO)10A 250VAC/30VDC (NC)5A 250VAC/30VDC
Contact material				AgSnO2, AgCdO
Max.Switching Current				10A
Max.Switching voltage				250VAC/30VDC
Electrical life				100000 ops
Mechanical Life				10000000 ops
Initial insulation resistance				500MΩ (at 500VDC)
Dielectric strength				2500VAC/2000VAC
Operate Time				25ms
Release Time				25ms
Ambient temperature				70°C
Termination				Octal and Undacal Type Plug
Construction				Dust cover
Unit Weight				85g

PS:If you can't find the exact type of your product.Please don't rush to go away.Contact me and your questions will be replied ASAP.Thank you for your time.

Our Services

1. Prompt reply: Any inquiry or questions would be replied within 24 hours.

2. Quality Product: Manufacture company, each of the products is tested and calibrated.

3. Hospitality: Offer smiling service and your visiting is highly welcomed

4. Fast delivery: delivery time is within 3-7 days usually, other occasion depends on the order qty.

Trade Information

Trade Terms	FOB ,CIF ,CFR,EXW,DDP
Payment terms	T/T,L/C,Western union,Paypal,Escrow,MoneyGram
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery
Payment conditions	30% deposit in advance,70% balance before shipping.
Delivery time	3-7working days after deposit,2-4 working days for inventory
Packing	Neutral carton,Wooden case for large size
Shipping	By sea,by air and by express delivery

Yueqing Winston Electric Co., Ltd.Is not only an exporting company, but also a professional manufacturer in China.We have our own production base.The products we professionally deal with are switching power supplies, sensors, relays, voltage stabilizers, AC contactors, circuit breakers, distribution boxes, industrial plugs & sockets and others.Since we are a manufacturer & exporter, we are sure that we can best support our customers with high quality products and the most competitive prices.

Our company is located in Wenzhou - the Electric Capital of China.We specialize in developing, manufacturing and distributing low voltage & high voltage electrical products.

We are an ISO9001:2000 certified company.We have obtained many certificates, such as CCC, CE, CB, GS and RoHS.Stability, expertise and technological innovation are the core stones of our business strategy.

Aiming at reliable product quality and the highest customer satisfaction, we are consistently deepening enterprise inner reform and fully carry out a quality guarantee system.With special cultivation of employees, high investment on production facilities and R&D as well as a wide range of products, we advocate "technology innovation, business honesty and trust and quality first" as our basic principle, trying to develop into a world-class electrical manufacturer with constant efforts.
