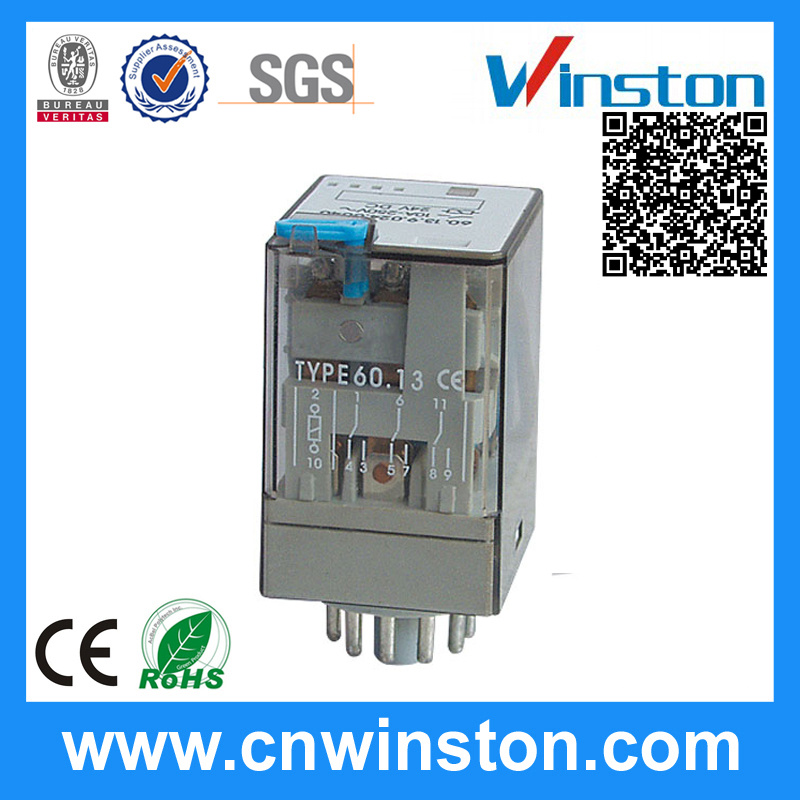

Product Specifications
| Prod Model: |
60.13-I, 70.2, 70.3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Western Europe |
| Brand: |
Winston |
| Protect Feature: |
Sealed |
| Contact Load: |
Low Power |
| Antistop: |
Purpose Relay |
Product Description
We supply all series Time Relay.
High quality
Short delivery
For more, please contact us.
| Specifications Model | 60.13-I | 70.2 | 70.3 |
| Terminal layout | 3Z | 2Z | 3Z |
| Contact capacity | AC | 10A 250V | 10A 250V | 10A 250V |
| DC | 10A 30V | 10A 30V | 10A 30V |
| Contact resistance(mΩ) | ≤50mΩ | ≤50mΩ | ≤50mΩ |
| Insulation resistance(MΩ) | ≥500MΩ | ≥500MΩ | ≥500MΩ |
| Dielectric strength | BOC | 1500VAC | 1500VAC | 1500VAC |
| BCC | BCC | 1500VAC | 1500VAC | 1500VAC |
| Coil nominal voltage | AC | 6 to 380V | 6 to 380V | 6 to 380V |
| DC | DC | 6 to 220V | 6 to 220V | 6 to 220V |
| Coil nominal power | AC | 2.0VA to 2.8VA | 2.0VA to 2.8VA | 2.0VA to 2.8VA |
| DC | DC | ≤1.5W | ≤1.5W | ≤0.5W |
| Electrical life(OPS) | | 105 | 105 | 105 |
| Mechanical life(OPS) | 107 | 107 | 107 |
| Operating temperature(oC) | -40~+60 | -40~+60 | -40~+60 |
| Weight(g) | ≤80 | ≤85 | ≤85 |
| Mounting methods | Outlet | Outlet | Outlet |
