Product Specifications
| Prod Model: |
MF58 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resistance: |
Variable Resistor |
| Type: |
Thermal Resistor |
| Function For Resistance: |
Protective Resistor |
| Package Type: |
Surface Mount |
| Application: |
Induction Cookers, Microwave and etc |
| Quantity: |
as Required |
| Installation: |
Solder |
| Material: |
Metal Oxide |
| Resistance Change Scale: |
Non-Linear |
| Brand: |
Tonze |
Product Description

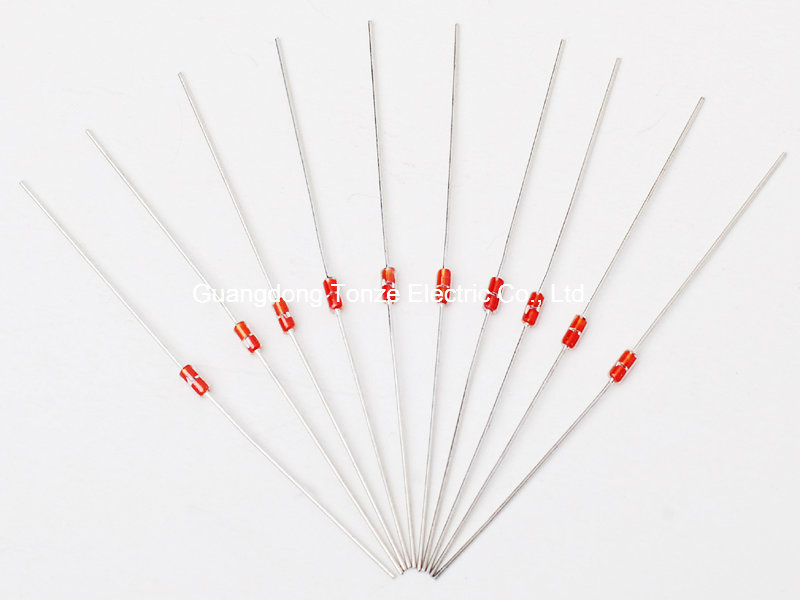

MF58 series are purified glass wrapped diode thermistors with two terminals extending axially, processed with the combination of ceramic and semiconductor techniques.
Features:· Purified glass encapsulated NTC thermistor with radial lead extending.
· Wide range of resistance & Beta value with high resistance precision.
· Usable in high-temperature and high-moisture environments due to the glass wrapping.
· Small, light, firm structure and convenient for automation mounting on PCB.
· Quick response to thermal sensing with high sensitivity.
· High working stability and reliability.
Applications:· Temperature compensation and detection of household appliance (e.g. induction cooker, microwave ovens, electric fans, electric heaters, etc.)
· Temperature compensation and detection of office automation facilities (e.g. copiers, printers, etc.)
· Temperature compensation and detection of the industrial, medical, environmental protection, weather and food processing equipment.
· Liquid level display and flow rate measurement.
· Mobile phone battery.
· Temperature compensation of apparatus coils, integrated circuits, quartz crystal oscillators and thermocouples.
Specification:· The range of resistance under the rated zero power (R25ºC): 0.1 ~ 1000 K
· The allowable tolerance of R25ºC: ±0.5%,±1%,±2%,±3%,±5%,±10%
· The range of B value (B25/50ºC): 3100 ~ 4500K
· The allowable tolerance of B value: ±0.5%,±1%,±2%
· The range of operating temperature: -40ºC ~ +250ºC
· Dissipation factor: ≥2mW/ºC (In Still Air)
· Thermal time constant: ≤20S (In Still Air)

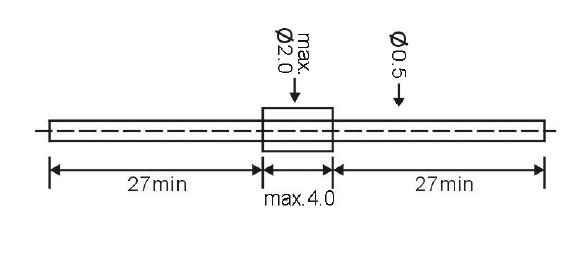

· Encapsulated: Axial Lead
Established in 1996, Guangdong Tonze Electric is a professional and leading manufacturer specializing in high precision NTC THERMISTORS and TEMPERATURE SENSORS, as well as Medical and Home Electric Appliances. We are capable of making all kinds of specifications to meet your requirements and providing technical support.
We are an ISO9001 and ISO14001 certified company, covering an area of 39, 000sqm located in Shantou, China.
With excellent testing equipment, professional manufacturing technique, and perfect quality control system, we aim to serve customers with high product quality and honesty.
Trust in us for our 18 years experience serving the famous enterprises. Welcome to contact.
