Product Specifications
| Prod Model: |
YD-F-2442 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Yd |
| Model Number: |
Yd-F-2442 |
| Color: |
for Option |
| Glass Thickness(Mm): |
5-19 |
| Max.Glass Width(Mm): |
2400 |
| Max.Glass Length(Mm): |
4200 |
| Min.Glass Width(Mm): |
100 |
| Min.Glass Length(Mm): |
240 |
| The Total Length(M): |
20 |
| CE: |
Certificate |
| Type: |

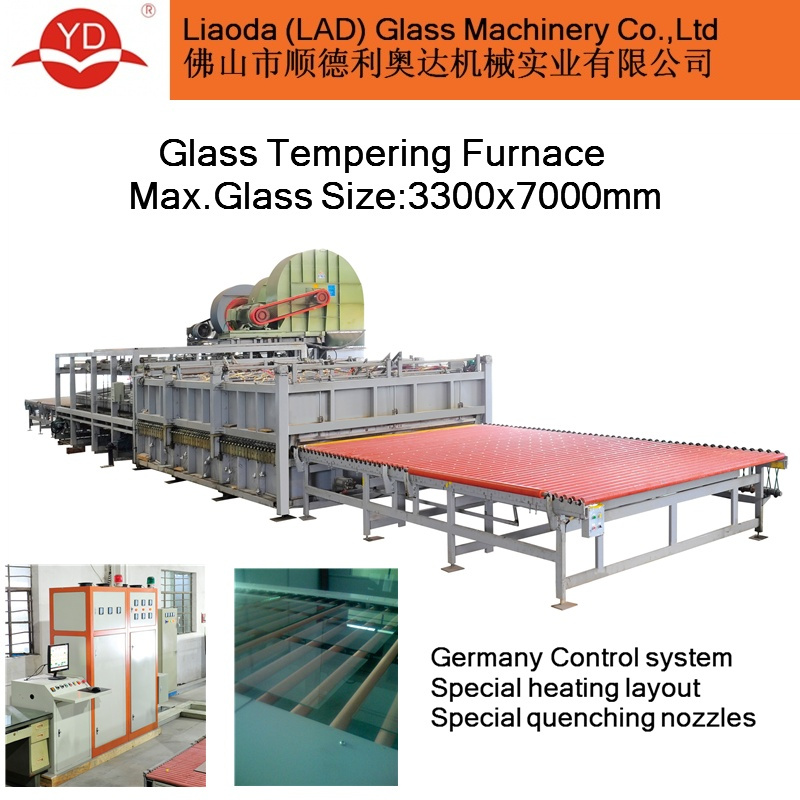

Glass Tempering Furnace |
| Certification: |
GB 15763 |
| Control System: |
Industrial Computer |
Product Description
Application:
This type of machine is to process flat glass (heat enforced safety glass), the finished products are mainly used for high grade domestic appliances, interior decorations, automobile, trains, ships,thin flat tempered laminated glass for architecture, and LOW-E glass.Machine specification
Total length of the machine: 20m, main body: 3.5M, cooling fan: 30-40m2
Processed glass dimension
Max. Glass dimension: 2440mmx4200mm (5-19mm)
2440mmx2000mm (4mm)
Min. Glass dimension: 100mmx300mm
Glass thickness range: 5~19mm
Glass type
Transparent float glass or flat glass
Mass color float glass or flat glass
Single side printed glass
Quality standard
The product meets to Chinese national quality standard
Glass stress equilibrium, particle even
Quality of all finished glass is the same
Heat resistance: Confront to international standard
Machine character
High density roller shaft made by extra thick steel and endured special treatment, no deformation, abrasion and aging resistance. Color optional, transmission drived by electric motor and swing reducer, matching with high quality chain and bearing.
Furnace: High efficient heat insulating structure: Usage of high density and high force heat insulating material, unique installation technique lowers power consumption and insolating from other components. Each heating zone has item own thermocouple, heating force and temperature change as per glass size.
Quenching section: With special iron roller, no deformation. The shape and structure are critical to the tempering quality.
Control system: With high performance Beckhoff controller system and all electric elements had been used for many years.
Warranty: One year
Machine commissioning and training
The machine needs 3 commissioning technicians to install and commissioning at buyer's factory.| Module | Max. Glass size (mm) | Min. Glass size (mm) | Thickness (mm) | Output (M 2 /Hour) | Power (KW) |
| YD-F-0920 | 900 x2000 | 50x120 | 4-12 | 22 | 300 |
| YD-F-1225 | 1250 x2500 | 100x250 | 4-15 | 38 | 430 |
| YD-F-1540 | 1500 x4000 | 100x300 | 5-19 | 72 | 550 |
| YD-F-2036 | 2000 x3600 | 100 x300 | 5-19 | 86 | 600 |
| YD-F-2436 | 2400 x3600 | 100 x300 | 5-19 | 103 | 500 |
| YD-F-2442 | 2400 x4200 | 100 x300 | 5-19 | 115 | 550 |
| YD-F-2450 | 2400 x5000 | 100 x300 | 5-19 | 145 | 750 |
| YD-F-2460 | 2400 x6000 | 100 x300 | 5-19 | 173 | 900 |
| YD-F-3180 | 3000 x8000 | 100 x350 | 5-19 | 297 | 1100 |
| YD-F-3580 | 3500 x8000 | 200 x400 | 5-19 | 366 | 1400 |
LIAODA(LAD) Glass Machinery Co., Ltd. is the consignee of Yuanda Glass, which is one of the leading glass machinery designer and fabricator in China in manufacturing popular glass cold and hot processing machinery.
Since 1988 we have worked out first Chinese glass edging machine, with our continuous research and development, in 2000, our first horizontal flat glass tempering furnace has came into being, now hundreds of our intelligent and diligent machines have been running at the sites of domestic and overseas.
All our engineers have years of working experiences in glass fabricating and glass machine manufacturing. On the base of absorbing the latest technologies, we know very well the advantages and disadvantages of all types of existing glass machines, therefore our compact design and sophisticated manufacturing center enable us to construct the most top quality of glass machines at the possible lowest cost.
A LITTLE MORE PRACTICAL, A LITTLE MORE INNOVATIVE is our Motto, on the way of modernization and globalization, we will commit ourselves to satisfy your requirements and our full experiences will absolutely be beneficial to any kind of your needs in flat glass processing.
