Product Specifications
| Prod Model: |
MF57 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Resistance: |
Variable Resistor |
| Type: |
Thermal Resistor |
| Installation: |
DIP Resistor |
| Function For Resistance: |
Protective Resistor |
| Package Type: |
Surface Mount |
| Application: |
3D Printer and etc |
| Quantity: |
as Required |
| Material: |
Metal Oxide |
| Resistance Change Scale: |
Non-Linear |
| Shape: |
Radial Lead Wire |
| Brand: |
Tonze |
Product Description

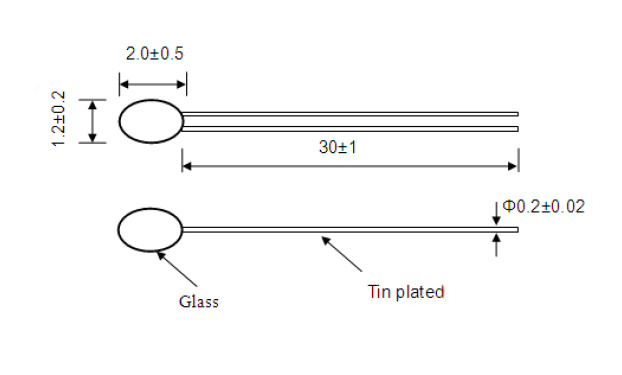

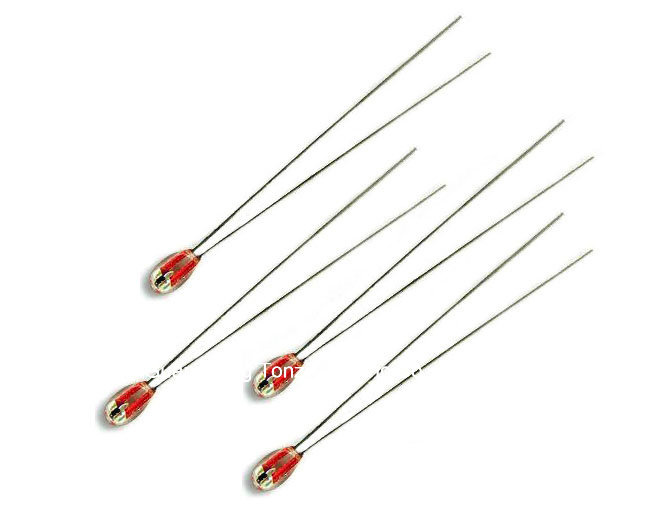

· Purified glass encapsulated NTC thermistor with radial lead extending.
· Wide range of resistance & Beta value with high resistance precision.
(R25 C=1.0~1000KΩ, B25/85 C=2000~4500K)
· Wide range of operating temperature from -55ºC up to 300ºC.
· Usable in high-temperature and high-moisture environments due to the glass wrapping.
· Small, light, firm structure and convenient for automation mounting on PCB.
· Quick response to thermal sensing with high sensitivity.
· High working stability and reliability.
Applications:· Induction cookers, microwave, ovens, electric fans, electric heaters, copiers, printers, and cell phone battery…..
· Industrial, medical, environmental protection; weather, food processing equipments; apparatus coils, integrate circuits, quartz crystal oscillators and thermocouples...
Specification:· The range of resistance under the rated zero power (R25ºC): 0.1 ~ 1000 K
· The allowable tolerance of R25ºC: ±0.5%,±1%,±2%,±3%,±5%,±10%
· The range of B value (B25/50ºC): 3100 ~ 4500K
· The allowable tolerance of B value: ±0.5%,±1%,±2%
· The range of operating temperature: -50ºC ~ +300ºC
· Dissipation factor: ≥2mW/ºC (In Still Air)
· Thermal time constant: ≤20S (In Still Air)
· Encapsulated: Radial Lead
