Airmend (Guangzhou) Refrigeration Equipment Co., Ltd. >> Gmcc A/C Compressor R22 208-230V/60Hz Rotary Compressor 1-3HP

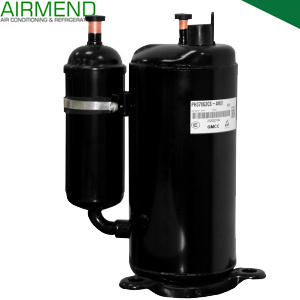

Gmcc A/C Compressor R22 208-230V/60Hz Rotary Compressor 1-3HP

Name: Gmcc A/C Compressor R22 208-230V/60Hz Rotary Compressor 1-3HP
Brand: china-manufacturer-directory.com
SKU: 738937175
Availability: InStock
Rating: 4.5 (53 reviews)

Supplier:	Airmend (Guangzhou) Refrigeration Equipment Co., Ltd.
Price:	US $ 65/Piece
Min Order:	48/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	PH180G1C-3FTU1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Trade Mark:	Gmcc
Capacity:	3800W
Input Power:	1195W
Cop:	3.18
Refrigerant:	R22
Compressor Type:	Hermetic Motor Compressor
Type:	Rotary
Power Source:	AC Power
Configuration:	Stationary
Lubrication Style:	Lubricated

Product Description

GMCC A/C compressor R22 208-230V/60HZ/1PH rotary compressor 1HP-3HP

Compressor Data
Compressor: PH180G1C-3FTU1
Refrigerant: R22
Compressor Type: Hermetic motor compressor
Pump Type: Rotary

Rated Performance
Power Supply: 208-230V/60HZ/1PH
Capacity: 3800W
Input: 1195W

Rated Conditions ARI
Evaporating Temp.: 7.2º C
Condensing Temp.: 54.4º C
Return Gas Temp.: 18.3º C
Liquid Temp.: 46.1º C
Ambient, Air Over: 35º C, 1m/s

Standard Accessory List
Terminal Cover
Terminal Cover Gasket
Nut-Terminal Cover
Nut Gasket
Rubber Grommet
Spring

Description	Model	Displ.	Capacity		Input	COP	Capacitor
Description	Model	cm^3/r	W	Btu/H	W	W/W	uF/V
GMCC Rotary Compressor R22 208-230V/60HZ/1PH	PH180G1C-3FTU1	18.10	3,800	12,966	1,195	3.18	40/370
	PH260X2CS-3KUU1	26.10	5,625	19,193	1,815	3.10	40/400
	PH330G2C-3MUU	32.80	7,150	24,396	2,135	3.35	55/400

With more than 7 years experience in cooling and air conditioning industry, Airmend is seeking to continue its way certainly in the aim of providing you the best service. Our most important source of motivation is consciousness and responsibility of our allies' affection and cooperation. In quality of management issue, Airmend group company has acquired ISO 9001 Certificate of Quality Management System. Until right now, we have 2000 square meters plant and 102 employees and sourced a range of Gree golden suppliers. Our products including compressors, fan motors, temperature controllers etc. Have been exported to 23 countries, particular Russia, Middle East and South America. We hope to build mutual trust and contribute to your success!
