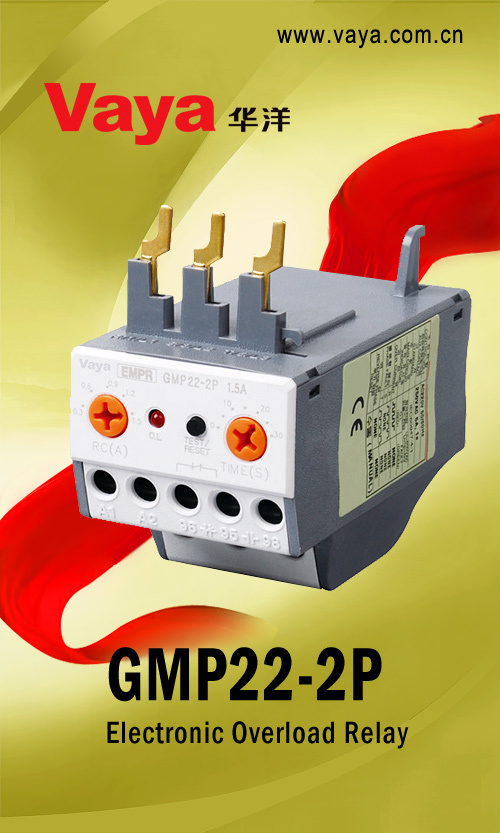

GMP22-2P Electronic Overload Relay

Name: GMP22-2P Electronic Overload Relay
Brand: china-manufacturer-directory.com
SKU: 677713062
Availability: InStock
Rating: 5 (62 reviews)

Supplier:	Zhejiang Huayang Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	GMP22-2P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

GMP22-2P Electronic Overload Relay

Description

Wide and adjustable current range
Adjustable trip time (trip class 5-10-15-20-30)
Designed suitable for use with contactors
Directly mountable on the GM-9, 12, 18, 22 contactors Separate mount versions are also available Separately
Mountable on 35mm DIN rail or with screws
1NO+1NC trip contacts
Manual reset as standard (Automatic reset optional)

Model		GMP22-2P	GMP22-2P(1a1b) GMP22-3P/3PR		GMP22-2S	GMP22- 3S/3SR	GMP22-2T		GMP22- 3T/3TR
Type		Pin type			Screw type			Tunnel type
No. of CT		2CT	2CT	3CT	2CT	3CT	2CTY		3CT
Protection	Overcurrent	Y	Y	Y	Y	Y	Y		Y
	Phase failure	Y	Y	Y	Y	Y	Y		Y
	Stall	Y	Y	Y	Y	Y	Y		Y
	Asymmetry	_	_	Y	_	Y	_		Y
	Reverse phase	_	_	Y 3PR	_	Y 3SR	_		Y 3TR
Current setting range(A)		0.3~1.5
		1~5
		4.4~22
Operating time characteristics		Inverse time characteristics(GMP22-2PD: Definite time characteristics)
Time setting (sec)	Inverse time	0~30 sec
	Definite D-time	0.2~60 sec for GMP22-2PD
	O-time	5sec (Fixed) for GMP22-2PD
Tolerance	Current	±5%
	Time	±5%(or±0.5sec)
Control Power	Voltage	AC 110V/220V(±10%)	AC 100~260V
	Frequency	50/60Hz
Aux. contact	Contact	1SPDT(1c) Note2)	2SPST(When power applied, 1a1b)
	Ratings	5A/250VAC Resistive load	3A/250VAC Resistive load
	Operate	(95 96 Close)	(95 96 Close) (97 98 Open)
Insulation resistance		Min 100MΩ at 500Vdc
Surge endurance(IEC 1000-4-5)		1.2×50μs 6kV Apply the standard wave
Fast transient burst(IEC 1000-4-4)		2.5kV/5min.
Environment Temperature	Operation	-25~70 degree centigrade
	Storage	-30~80 degree centigrade
	Relative humidity	30~90%RH(No freezing)
Trip indicator		Red LED	Red/Green LED		Red LED	Red/Green LED	Red LED		Red/Green LED
Dimension(mm) W× ×H× ×D		44×71×78	53×77.5×87.5		53×68×87.5		53×68×87.5
Mounting type		Direct mount onto a MC			Separate mount(Screw or Din-rail) Note3)
Applied MC		GMC-9, GMC-12, GMC-18, GMC-22
