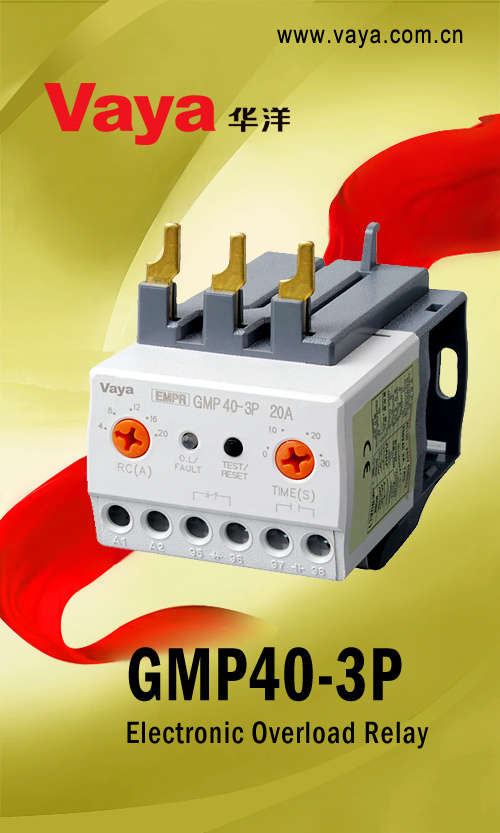

GMP40-3P Electronic Overload Relay

Name: GMP40-3P Electronic Overload Relay
Brand: China-Manufacturer-Directory.com
SKU: 677714292
Availability: InStock
Rating: 4.9 (86 reviews)

Supplier:	Zhejiang Huayang Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	20/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Prod Model:	GMP40-3P
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

GMP40-3P Electronic Overload Relay

Description

Wide and adjustable current range
Adjustable trip time (trip class 5-10-15-20-30)
Designed suitable for use with contactors
Directly mountable on the GM-9, 12, 18, 22 contactors Separate mount versions are also available Separately
Mountable on 35mm DIN rail or with screws
1NO+1NC trip contacts
Manual reset as standard (Automatic reset optional)

Model		GMP40-2P	GMP40- 3P/3PR	GMP40-2S	GMP40- 3S/3SR	GMP40-2T		GMP40- 3T/3TR
Type		Pin type		Screw type			Tunnel type
No. of CT		2CT	3CT	2CT	3CT	2CTY		3CT
Protection	Overcurrent	Y	Y	Y	Y	Y		Y
	Phase failure	Y	Y	Y	Y	Y		Y
	Stall	Y	Y	Y	Y	Y		Y
	Asymmetry	_	Y	_	Y	_		Y
	Reverse phase	_	Y 3PR	_	Y 3SR	_		Y 3TR
Current setting range(A)		4~20
		8~40

Operating time characteristics		Inverse time characteristics(GMP22-2PD: Definite time characteristics)
Time setting (sec)	Inverse time	0~30 sec
	Reset time	Manual reset (Prompt)
		Reset after 1 Min.(Optional)
Tolerance	Current	±5%
	Time	±5%(or±0.5sec)
Control Power	Voltage	AC 100~260V
	Frequency	50/60Hz
Aux. contact	Contact	2SPST(When power applied, 1a1b)
	Ratings	3A/250VAC Resistive load
	Operate	(95 96 Close) (97 98 Open)
Insulation resistance		Min 100MΩ at 500Vdc
Surge endurance(IEC 1000-4-5)		1.2×50μs 6kV Apply the standard wave
Fast transient burst(IEC 1000-4-4)		2.5kV/5min.
Environment Temperature	Operation	-25~70 degree centigrade
	Storage	-30~80 degree centigrade
	Relative humidity	30~90%RH(No freezing)
Trip indicator		Red LED	Red/Green LED	Red LED	Red/Green LED	Red LED		Red/Green LED
Dimension(mm) W× ×H× ×D		53×77.5×87.5		53×68×87.5		53×38×87.5
Mounting type		Direct mount onto a MC		Separate mount(Screw or Din-rail) Note3)
Applied MC		GMC-32, GMC-40

Zhejiang Huayang Electric Co., Ltd. Specializes in manufacturing the Electronic overload Relays, Thermal Overload Relays, Electronic Voltage Relays, Other Protection & Monitoring Devices, Current Transformers, Shunt and any other electrical equipments. After several years' development, Vaya has become a larger enterprise combining research, production, sales and after-sales service of electronic relay and is one of the famous manufacturers in China. All of our production procedures are strictly followed ISO 9001. We also get across safety certification such as CE, CB, UL, CCC, etc. We are sure that we can offer you the product with good quality as well as competitive price as we have advanced technology and prefect testing equipments, with Up-To-Date machines and production.

Thanks to the perfect character, good service, and high quality, our products are well sold both in domestic and oversea markets, and highly praised by the clients. With the principle of quality, technology and credit, we insist on "Talents Is Our Base, Technique is the Source of Enterprise Development". And always continually research and develop new products to meet the clients' need. Look forward to establishing a long term business relationship with you!
