Gold/Copper/Barite/Chrome/Iron/Manganese Ore Mining Separating Jigging Machinery

Name: Gold/Copper/Barite/Chrome/Iron/Manganese Ore Mining Separating Jigging Machinery
Brand: china-manufacturer-directory.com
SKU: 709552365
Availability: InStock
Rating: 4.9 (34 reviews)

Supplier:	Ganzhou Gelin Mining Machinery Co., Ltd.
Price:	US $ 4000-15000/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	Jig Jt
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand Name:	Gelin
Condition:	New
Usage:	Mining Concentration
Capacity:	1~15tons Per Hour
Feeding Density:	30%~50%
Testing:	Supply
Guarantee:	1year
After Service:	Supply
Delivery Date:	2 Days as in Stock Now
Place Of Origin:	China
Type:	Mineral Processing & Screening Equipment

Product Description

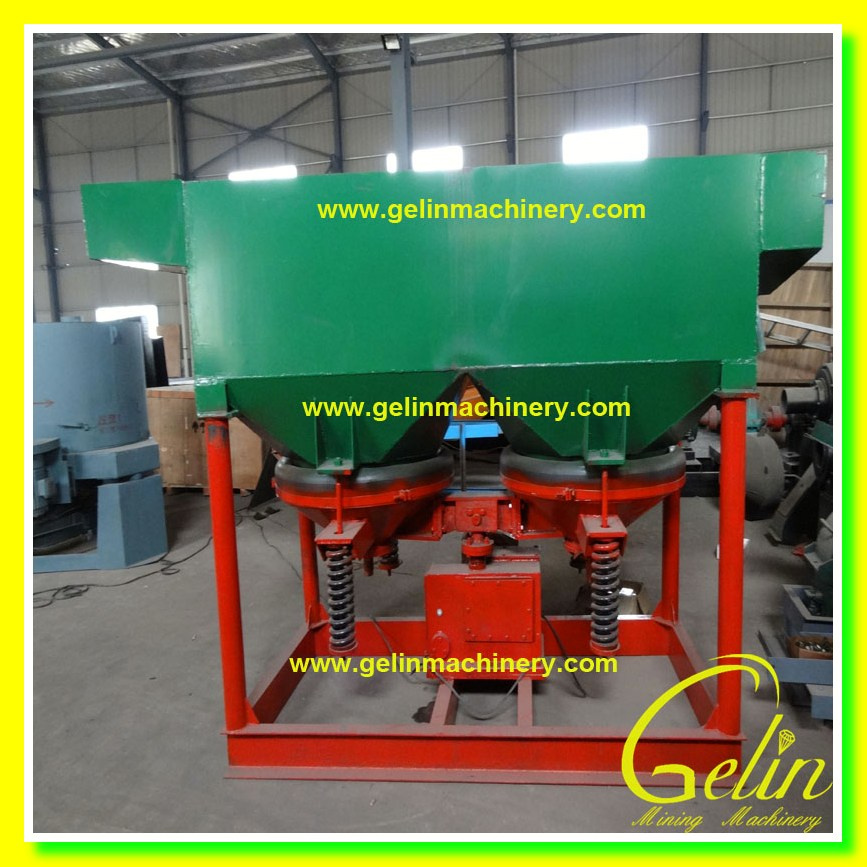

Gold/Copper/Barite/Chrome/Iron/Manganese ore Mining separating jigging machinery

Jigger, jigging machine belongs to gravity-based equipments, which can separate mineral based on differing of specific Gravity. Saw-tooth wave jig is mainly consist of three parts: Main frame, driving set and jigging chamber.

Application

Jigging machine is widely used in gravity concentration of tin, tungsten, placer gold, hematite ore, manganese, titanium, Antimony, lead, tantalum, niobium and other minerals.

Features

The pulsing curve of the traditional jig is sinusoidal waveform, the up and down speed of water flow and acting time produced by the movement of membrane are almost same, so it is unfavorable to loose of jig bed and layering of Minerals based on special gravity, and thus affect separation ability and recovery rate. Saw-tooth wave is an energy Economy gravity equipment that is developed and improved from traditional jig on the basis theory of jig bed layering.

Its jigging pulsating curve is similar to saw-tooth wave, which makes the up speed of water flow quicker than down Speed of water flow, so it can improve looseness of jig bed and reduce suction action, which can lead to fully settlement Of heavy particles in slurry, it highly improves separation ability and recovery rate. Stroke and frequency of stroke are Adjustable.

Model	Chamber		Feeding Size mm	Water added m 3 /T	Pressure of water Mpa	Processing capacity t/h	Motor power kw	Dimension mm	Weight Kg
Model	shape	Area m 2	Feeding Size mm	Water added m 3 /T	Pressure of water Mpa	Processing capacity t/h	Motor power kw	Dimension mm	Weight Kg
JT0.57-1	Ladder	0.57	6	1-3	≥ 0.5	1-2.5	1.5	1550× 780× 1530	610
JT1-1	Ladder	1.04	10	1-3		2-4	2.2	2270× 1110× 1890	900
JT2-2	Rect	2.28	10	1-3		4-8	3	3225× 1550× 2050	1640
JT3-1	Ladder	3.3	10	1-3	≥ 0.5	6-10	5.5	3180× 2000× 2600	3260
JT5-2	Ladder	4.86	10	1-3	≥ 0.5	10-15	7.5	3600× 2000× 2600	4500
JT1.5-2	Rec t	1.53	30	1-2	≥ 0.5	5-8	3	3200× 1550× 2050	1520
JT4-2	Rect	4.33	30	1-2	≥ 0.5	10-15	7.5	3600× 1850× 2600	4600

Ganzhou Gelin Mining Machinery Company Limited is an expert manufacturing mining machines in China. Our company is located in the Industrial Zone of Shicheng County, Jiangxi Province.

Our distinctive products include Shaking table, Jig, Spiral separator, Gold concentrator, Ball mill, Jaw crusher, flotation, magnetic separator, Feeder, Classifier, ore washing machine and lab equipment etc. Our machines are popular in separating gold, copper, manganese, chrome, tungsten, tin, nickel, iron, titanium, lead, zinc, tantalum and some non-ferrous metals like quart, zircon, barite, etc.

Our products are sold to more than 28 provinces/cities in China and are exported to Russia, Africa, India, the Middle East, the Philippines, Mongolia, Sudan, Kazakhstan, Brazil, America, Canada and Australia. We have won high reputations from all of our clients for our machines and services.

Besides the above mentioned products, we can also design and manufacture many kinds of special mining machines and automatic processing lines according to the requests of customers. If you are in need of detailed information, please inform us. We will provide you with total solutions according to your specific requirements in time.

As a leading provider of mining machines in China, we will continue to do our best to offer customers the best quality products and services at competitive prices, to meet variable challenges and keep advantageous.
