Product Specifications
| Prod Model: |
GWF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Lovadon OEM |
| Electric Current: |
100A-1600A |
| Material Of Plastic Body: |
PC |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCCB |
| Certification: |
CE |
| Poles Number: |
1p, 2p, 3p, 4p |
Product Description

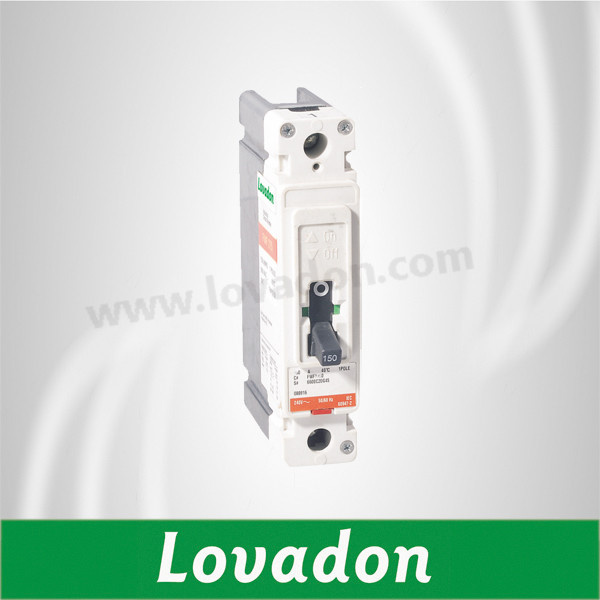

GWF series molded case circuit breaker (hereinafter referred to as breaker) is designed by company with international advanced technology, and it is one of the new circuit breakers in the development.
The rated insulation voltage of circuit breaker is 800V, which is suitable in the distribution network with AC 50Hz or 60Hz, rated working voltage of 690V and rated working current from 6A to 1250A. It is used to distribute power and protect the circuit and power equipment against overload, short circuit, under voltage and many other damages. It also can be used as infrequent starting, overload, short circuit, under voltage protection of motor.
The circuit breaker has small volume, high breaking, short arcing (or no arcing) and other characteristics. It is ideal product for the user.
Breaker can be mounted vertically (ie, vertical mounting) or horizontally (horizontal mounting)
This product complies with GB140048.2 and IEC60947-2 standards.
| GWF FWF | | | | | | | | | | | | | | |
| Frame Current (A) | | | 100 | 160 | 225 | 225 | 250 |
| Model | | | GWF | FWF | FW | HFW | FWC | FWF | HFWF | FWCF | JW | HJW | JWC |
| Breaking Capacity (KA ms) | | | AC-50/60Hz |
| | 220-240 VAC | Icu | 18 | 65 | 40 | 85 | 100 | 200 | 85 | 100 | 200 | 85 | 100 | 200 |
| | Ics | 9 | 33 | 40 | 85 | 100 | 150 | 85 | 100 | 150 | 85 | 100 | 150 |
| | 380-415 VAC | Icu | - | 25 | - | 40 | 70 | 100 | 40 | 70 | 100 | 40 | 70 | 100 |
| IEC60947-2 | Ics | - | 13 | - | 40 | 70 | 75 | 40 | 70 | 75 | 40 | 70 | 75 |
| | 660-690 VAC | Icu | - | - | - | 12 | 14 | 18 | 12 | 14 | 18 | 14 | 18 | 22 |
| | Ics | - | - | - | 6 | 7 | 9 | 6 | 7 | 9 | 7 | 9 | 11 |
| | 250 VDC | Icu | - | 10 | - | 10 | 20 | 20 | 10 | 20 | 20 | 10 | 20 | 20 |
| | Ics | - | 5 | - | 5 | 10 | 10 | 5 | 10 | 10 | 5 | 10 | 10 |
| | 240VAC | 18 | 65 | - | 65 | 100 | 200 | 65 | 100 | 200 | 65 | 100 | 200 |
| NEMA | 480VAC | - | 22 | 25 | 25 | 65 | 100 | 25 | 65 | 100 | 35 | 65 | 100 |
| | 600VAC | - | - | - | 18 | 25 | 35 | 18 | 25 | 35 | 18 | 25 | 35 |
| Number of poles | 1 | 2.3 | 1 | 2,3,4 | 2,3,4 |
| Rated Current | 16-100A | 16-225A | | 125-250A |
| Trip unit | Interchange able type | | | | | | | | | | | | yes | |
| Fixed thermal type | yes | |
| Thermal magnetic | Fixed thermal type | yes | | | | yes | |
| adjustale type | | Fixed | | | | | | | | | |
| Magnetic type | | Fixed | fixed | adjustable | fixed | adjustable |
| Rms Solid | LS | | - | | | | | - | | | | | | |
| LS1 | | - | | | | | - | | | | | | |
| LSG | | - | | | | | - | | | | | | |
| LS1G | | - | | | | | - | | | | | | |
| Dimensions(mm) | | H | W | D | H | W | D | H | W | D |
| 1P | 123.8 | 254.4 | 66.7 | 152.4 | 35 | 686 | | | |
| 2P | 123.8 | 50.8 | 66.7 | 152.4 | 70 | 86 | | | |
| 3P | 123.8 | 76.2 | 66.7 | 152.4 | 105 | 86 | 177.8 | 105 | 103 |
| 4P | | | | 152.4 | 140 | 86 | 177.8 | 140 | 103 |
| Weight(KG) | | | | 1P 0.7,2P 1.8,3P 2.4,4P 3.1 | 2P 5.2,3P 5.2,4P 7.0 |
Our company supplys different kinds of products. High quality and favaroble price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
