Product Specifications
| Prod Model: |
FD-311A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standar Legth Of Hose: |
15m(49.2 Feet) |
| Model: |
Fd-311A |
| Machine Size: |
800mm*700mm*1150mm |
| Color: |
Customized |
| Heater Power: |
3000W*2 |
| N. W: |
200kg |
| Size Of Air Motor: |
5inch |
| Max Work Pressure: |
13.8mpa(138bar) |
| Output: |
8kg/Min |
| Max Length Of Hose: |
45m(295feet) |
| Type: |
Injection Blow Molding |
| Automation: |
Automatic |
| Structure: |
Vertical |
| Computerized: |
Computerized |
| Plastic Type: |
Thermosetting |
| Plasticizing Way: |
Plunger Type |
| Clamping Way: |
Hydraulic & Mechanical |
| Certification: |
SGS |
Product Description

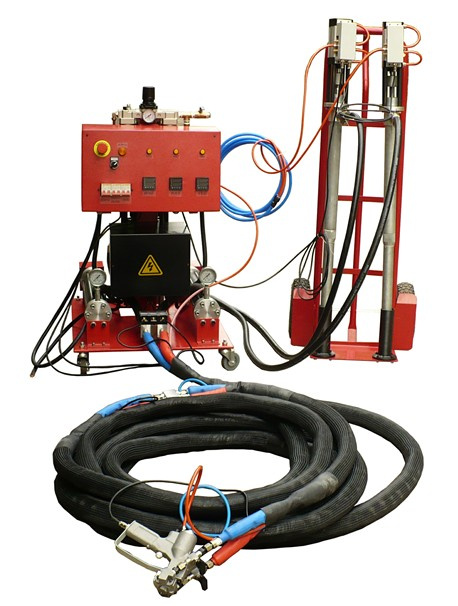

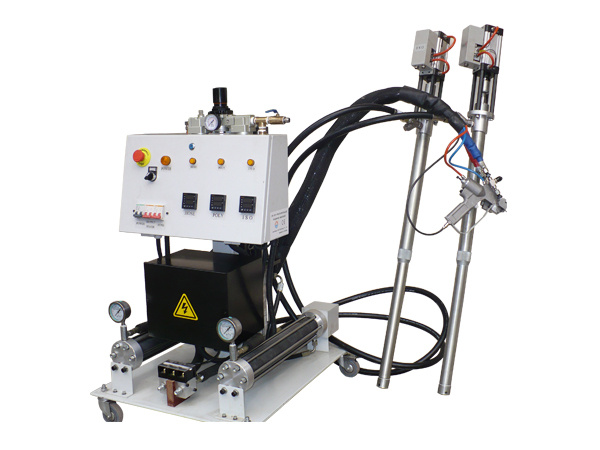

Polyurethane Spray Foam Machine
Our polyurethane spray foam machine is used for Rigid Polyurethane and the Ratio of ISO and POLY (1: 1)
The machine is mainly applied to construction area, such as:
1). External wall insulation
2). Roof insulation and waterproof
3). Freeze house heater preservation
4). Other heater insulation
Technical parameter:
Electrical requirements single-phase: 220V 50Hz 30A
Compressed air requirements: 1MPa(10 bar, 145psi)
Output: 8-10kg/min
Shipping parameter:
N. W.: 200kg
G. W.: 220kg
Body Volume: 800*600*950mm
Packing Volume: 900*700*1150mm
Standard configuration:
Proportion Fixed Mainframe: 1 set
Self-cleaning spray/injecting gun: 1 set

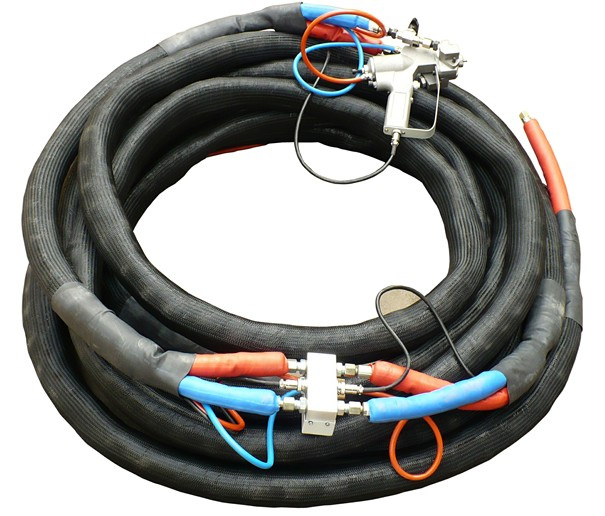

Heating and preserved pipe: 49.2 feet (15m)
Connecting pipe for spray gun: 4.9 feet (1.5m)
Transfer pump: 2 sets
