Product Specifications
| Prod Model: |
U2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Collet Capacity: |
16mm |
| Net Weght: |
60kg |
| Power: |
0.375kw |
| Usage: |
Grinding |
| Controlling Mode: |
Program Control |
| Precision: |
High Precision |
| Type: |
Middle and Small Machine Tool |
| Automatic Grade: |
Manual |
Product Description

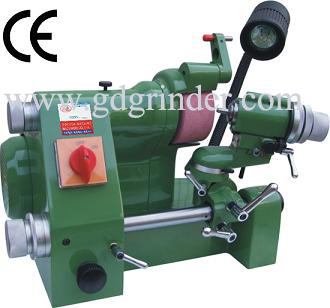

Grinder tools
For grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters. The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 360degree or 100 rotation is allowed for grinding End Mills, Twist Drill, Lathe Tools, only replace the attachment to the index head without any complex setup.
Specification
1. Max. Collet capacity: 16mm
2. Max. Grinding dia.: 16mm
3. Taper angle: 0~ 180 (degree)
4. Relief angle: 0~ 45 (degree)
5. Negative angle: 0~52(degree)
6. Grinding spindle: 5200 r. P. M.
7. Cup grinding wheel: 100*35*20mm
8. Motor: 1/3HP 220V 50/60Hz
9. Net weight: 50 kgs
10. Gross weight: 60 kgs
11. Dimensions: 50*50*48CM
12. Packing size: 56*55*50CM
Standard Accessory
Diamond Wheel Dresser...1PC
Wheel flange(mounted)...1PC
Collect: 4, 6, 8, 10, 12mm (or inch)...5PC
Grinding Wheel...1PC
Aligning Finger...1PC
Lock Pin...1PC
Drive Belt...1PC
Tools...1set
Optional Accessory
End mill grinding attachment
Twist drill grinding attachment
Lathe tool grinding attachment
Diamond grinding wheel
Microscope
|
grinder tools |
|
|
end mill grinding attachment |
3-16mm |
|
twist drill grinding attachment |
3-8mm |
|
lathe tool grinding attachment |
20*20mm |
