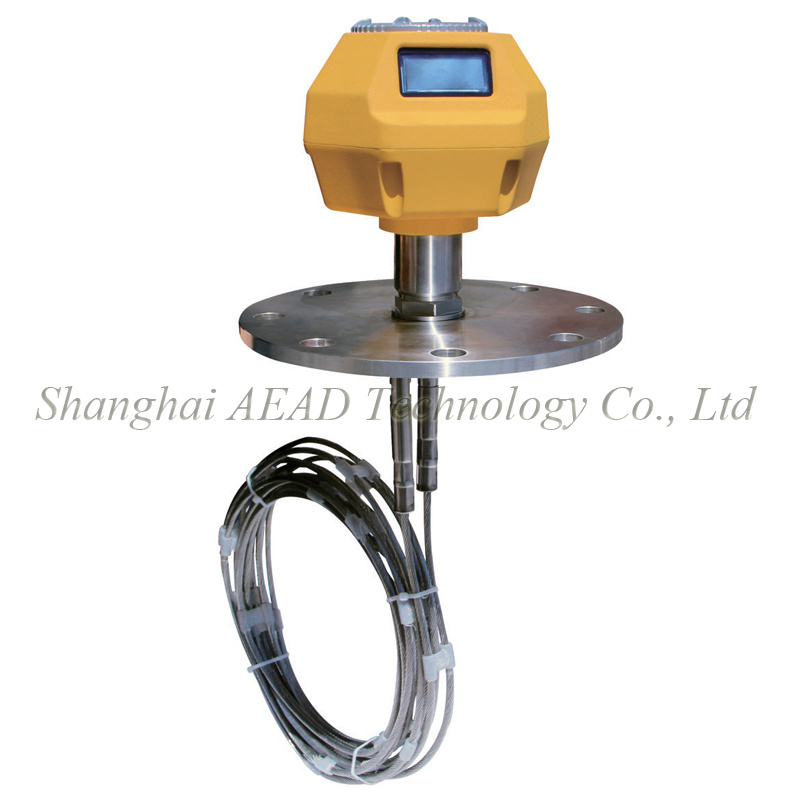

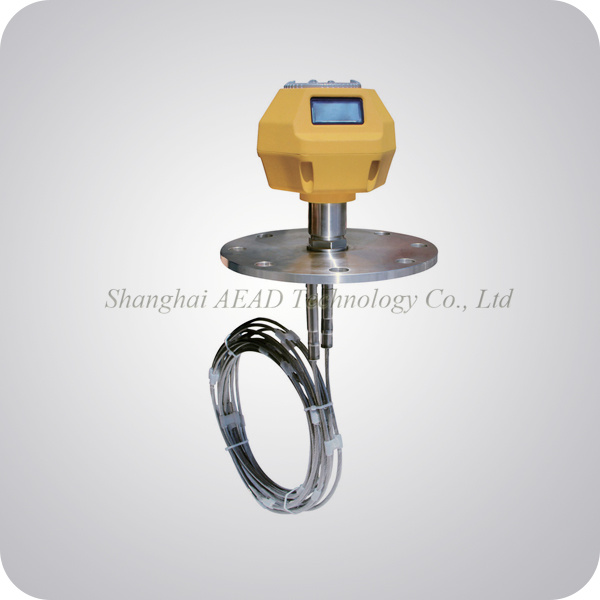

Guided-Wave Radar Level Meter (A+E-61LA)
| Price: |
US $ 100/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Guided-Wave Radar level meter (A+E-61LA)
Measurement PrinciplesThe guided-wave radar level meter is a measuring meter basing on time-stroke
principle and the radar wave runs at the speed of light. The running time can be
converted to level signal through electronic components. The distance between
measurement reference point and material surface, the probe transmits high-frequency
impulse which transmits along the cable, and when the impulse is reflected after
encountering the material surface, it will be received by the receiver in the meter,
and the time signal will be converted to level signal.
InputThe reflected pulse signal transmits along the cable to the electronic circuit
part of the meter, and the micro-processor will process the signal, identify
the echo wave of microwave impulse reflected on the material surface.The
correct echo wave signal will be identified by the intelligent software, and

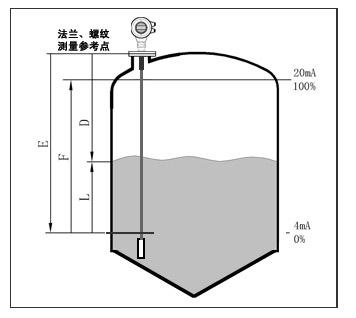

the distance to material level D is in direct proportion to time-stroke T of
impulse. D=C×T/2 Where, C indicates velocity of light. Because the distance in empty tank E is known, the material level L is: L=E-D OutputBy configuring empty tank height E (=Zero), full tank height F (=full range) and
some application parameters. The application parameters will adapt the meters to
the measurement environment automatically.
|
Application |
Liquid, solid particles and powder |
|
Measuring range |
30m (liquid) 15m(solid) |
|
Process connection |
Thread, flange |
|
Process temperature |
-40-250 degree |
|
Process pressure |
-1.0-40bar |
|
Precision |
3mm |
|
Frequency range |
500MHz-1.8GHz |
|
Explosion & Protection class |
Exib IIC T6 Gb/ Exd IIC T6 Gb |
|
Signal output |
4 ... 20mA/HART |
|
Power supply |
DC24V(two-wire) AC220V/DC24V (four-wire) |
| Prod Model: |
A+E-61LA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Frequency: |
500MHz-1.8GHz |
| Display: |
4 Digital LCD |
| Antenna: |
Single Stick or Cable |
| Precision: |
3mm |
| Processing Temperature: |
-40-250 Degree |
| Signal Output: |
4 ... 20mA/Hart |
| Process Connection: |
Thread, Flange |
| Application: |
Liquid, Solid Particles and Powder |
| Kind: |
Radar |
| Structure: |
All in One |
| Range: |
0-30m |
| Principle: |
Vibration Sensor |
