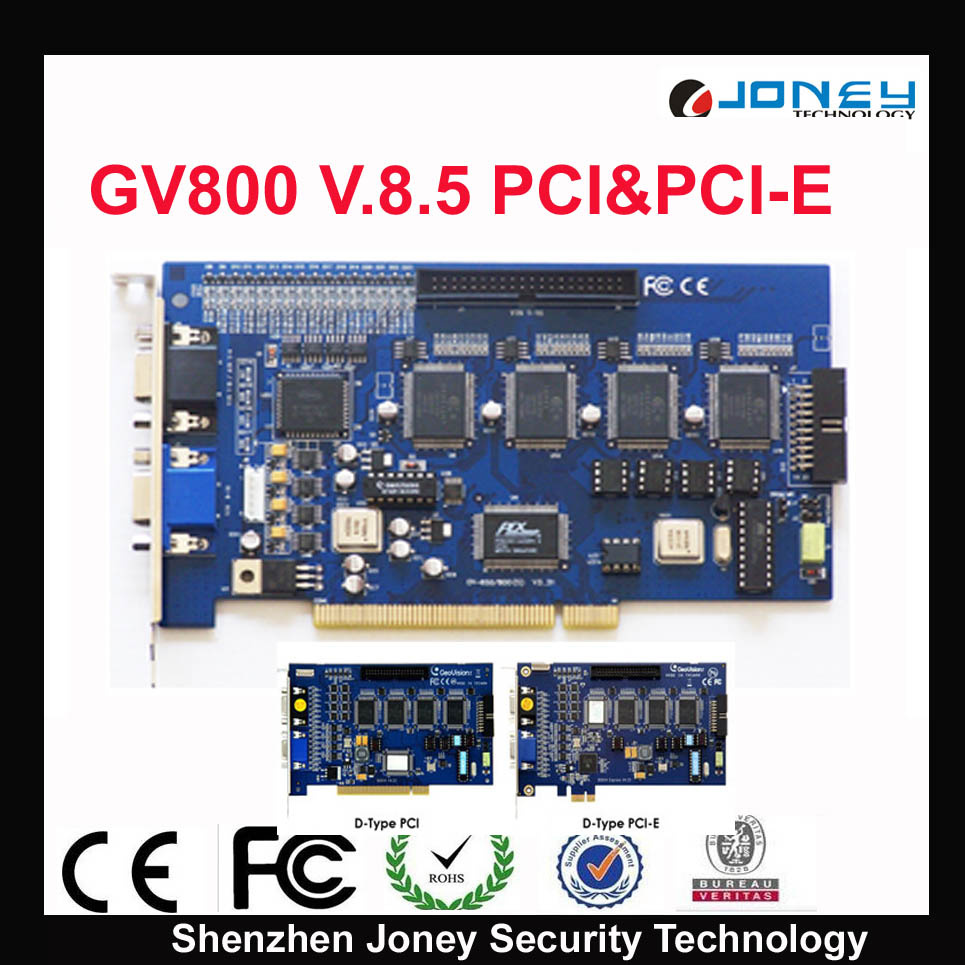

Gv DVR Card Gv600/Gv800/Gv1480 Version 8.5 PCI and PCI-E Option

Name: Gv DVR Card Gv600/Gv800/Gv1480 Version 8.5 PCI and PCI-E Option
Brand: china-manufacturer-directory.com
SKU: 725533345
Availability: InStock
Rating: 4.7 (59 reviews)

Price:	US $ 1/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	GV800S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Input Cameras:	4,8,12,16 Channel Cameras
Record Video Frames:	100fps(PAL)/120fps(NTSC)
Video Resolution:	720X480
Video Compression Format:	Geo MPEG4, Geo H264
Audio Compression Format:	AAC (16 kHz / 16 Bit)
OS Supported:	Windows XP / Windows Vista / Windows 7 / Windows 8
Recording Resolution:	D1(720X480)
CPU:	Core 2 Duo, 3.0 GHz
RAM:	2 X 1 GB Dual Channels
32channel:	Support by 2PCS Cards
Type:	PC-based
Feature:	Geovision Software
Operating System:	Windows
Technology:	Geovision Card
Sensor:	Techwell Chipsets
Style:	PC Based Windows OS DVR Card
Horizontal Resolution:	D1 Record

Product Description

Specifications

O.S. Support : 32/64-bit Windows XP / Windows Vista / Windows 7 / Windows 8

Specifications

Input TypeD-Type: DB15 x 2

Video Input(s)4, 8, 12, 16 Cams

Audio Input(s)4 Channels , & 16CH(with GV-A16 board) is optional

Recording Rate120 fps (NTSC), 100 fps (PAL).

Display Rate120 fps (NTSC), 100 fps (PAL).

Video ResolutionNTSC: 720x480, 720x480 de-interlace, 720 x 240,
640 x 480, 640 x 480 de-interlace, 640 x 240, 320 x 240

PAL: 720 x 576, 720 x 576 de-interlace, 720 x 288,
640 x 480, 640 x 480 de-interlace, 640 x 240, 320 x 240

Compression FormatWavelet, MPEG-4, GEOMPEG4

GV-DSP Support YES

GV-A16 Support YES

GV-NET/IO Card SupportYES

SoftwareV8.3.4 / V8.3.3 / V8.3.2/V8.3 / V7.05 / V7.0(with USB Dongle)

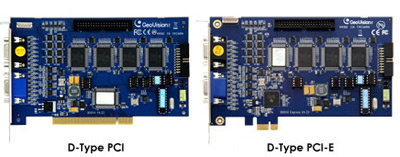

DimensionsNew PCB(D-Type Ver7.05): 175mm x 98mm.
Old PCB(D-Type Ver6.1): 150mm x 100mm.

NOTE: DVR-800S is currently not compatible with via series chipset motherboard.

Interface

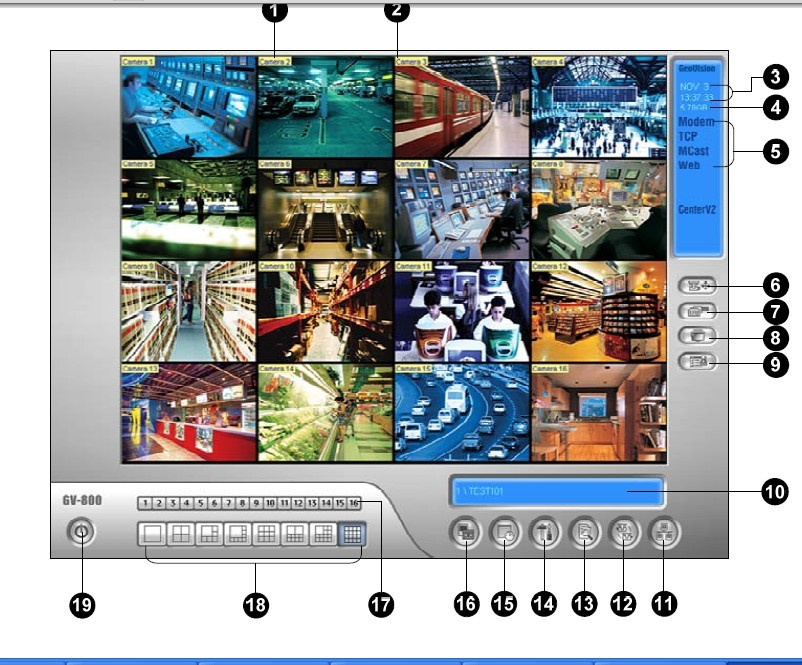

main interface 4-view playback interface

System requirements

OS SupportedWindows 2000 / Windows XP / Windows 2003/Win7/Win8

CPUPentium 4 - 2.0 GHZ

RAM256MB Minimum

HDD80GB Recommended

VGANVIDIA Geforce2 MX200 32MB

DirectX9.0 or above

Specifications
	Input Type	D-Type: DB15 x 2
	Video Input(s)	4, 8, 12, 16 Cams
	Audio Input(s)	4 Channels , & 16CH(with GV-A16 board) is optional
	Recording Rate	120 fps (NTSC), 100 fps (PAL).
	Display Rate	120 fps (NTSC), 100 fps (PAL).
	Video Resolution	NTSC: 720x480, 720x480 de-interlace, 720 x 240, 640 x 480, 640 x 480 de-interlace, 640 x 240, 320 x 240
	Video Resolution	PAL: 720 x 576, 720 x 576 de-interlace, 720 x 288, 640 x 480, 640 x 480 de-interlace, 640 x 240, 320 x 240
	Compression Format	Wavelet, MPEG-4, GEOMPEG4
	GV-DSP Support	YES
	GV-A16 Support	YES(
	GV-NET/IO Card Support	YES
	Software	V8.3.4 / V8.3.3 / V8.3.2/V8.3 / V7.05 / V7.0(with USB Dongle)
	Dimensions	New PCB(D-Type Ver7.05): 175mm x 98mm. Old PCB(D-Type Ver6.1): 150mm x 100mm.
NOTE: DVR-800S is currently not compatible with via series chipset motherboard.
Interface

	main interface	4-view playback interface
System requirements
	OS Supported	Windows 2000 / Windows XP / Windows 2003/Win7/Win8
	CPU	Pentium 4 - 2.0 GHZ
	RAM	256MB Minimum
	HDD	80GB Recommended
	VGA	NVIDIA Geforce2 MX200 32MB
	DirectX	9.0 or above

Package
