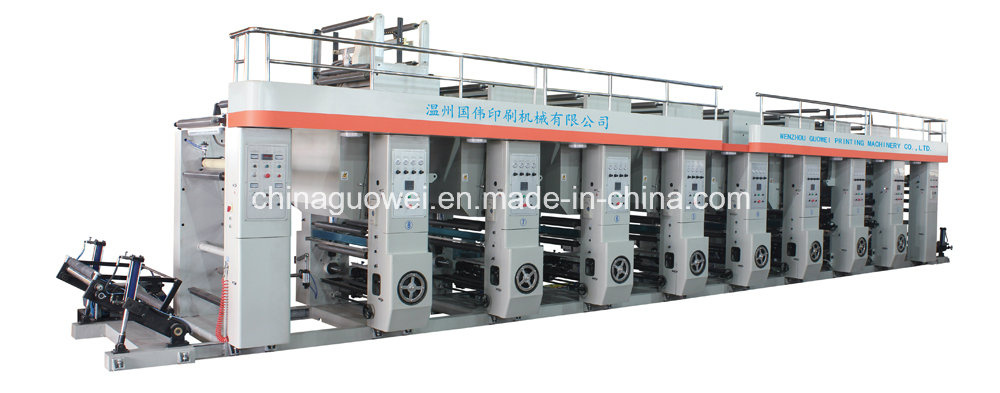

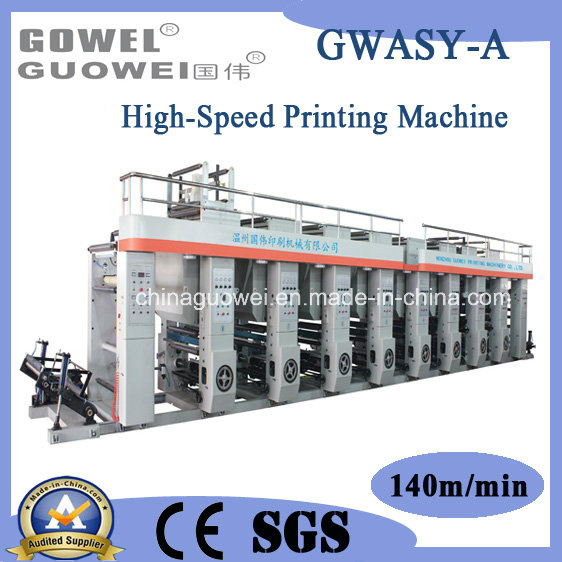

(GWASY-A) Computer High-Speed Printing Machinery (Roll Paper Special Printing Machine)

Name: (GWASY-A) Computer High-Speed Printing Machinery (Roll Paper Special Printing Machine)
Brand: china-manufacturer-directory.com
SKU: 775163175
Availability: InStock
Rating: 4.4 (71 reviews)

Supplier:	Wenzhou Guowei Printing Machinery Co., Ltd.
Price:	US $ 10000-70000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	GWASY-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Rotogravure Printing Machine
Place Of Origin:	Zhejiang, China (Mainland)
Brand Name:	Guowei
Drying Method:	Electric Heating and Steam Heating
Certification:	ISO9001:2008 CE
Printing Colors:	8 Colors
Condition:	New
Warranty:	One Year
Voltage:	380V
Packaging Details:	Paper Iroll Plastic in Roll Rotogravure Printing
Style:	Intaglio Printing Press
Structure:	Platen Press
Color & Page:	Multi-Colour Printing Press

Product Description

GWASY-A Guowei Brand Rotogravure Aluminum Foil Printing Machine For Sale

Applicable materials:

This machine is suitable for printing paper package material in roll for foodstuff,Brug packaging ,tobacco package ,wine,decorating paper,carton preprinting ect.(Paper thickness:17g to 300g ),widely applied in all kinds of high grade print.

Main Structure Character:

1.Unwind and Rewind:outside type Singlestep Hydraulic go up and down.

2.Printing:vertical register system,high precision and less waste.doctor blade plays with double-axis.drive by independent motor.Optional electrostatic ink absorption,printing ink viscosity control, and so on device ,greatly improving the quality of printing.

3.Dry oven:Patent technology, low consumption oven,high wind pressure high efficiency and energy saving system,several return air road ,saves energy.
4.Control:The main motor ABB +panasonic inverter,unwind ningxia magnetic powder,main components are imported brand.

Main Technical Parameters
Model	GWASY-600A	GWASY-800A	GWASY-1000A	GWASY-1200A
Printing colors	8 (user can increase or decrease)
Diamter of pring cylinder	100-320mm
Max.printing width	600mm	800mm	1000mm	1200mm
diameter of unwind/rewind	1200mm
Machine printing speed	160m/min
Max.printing speed	120m/min
Register precision	±0.1mm
Drying method	Electric heating and steam heating or oil heating
Total power	140kw	160kw	180kw	200kw
Weight of machine	22000KG	24000KG	26000KG	28000KG
Overall dimension	1590027002800mm	1590029002800mm	1590031002800mm	1590033002800mm
