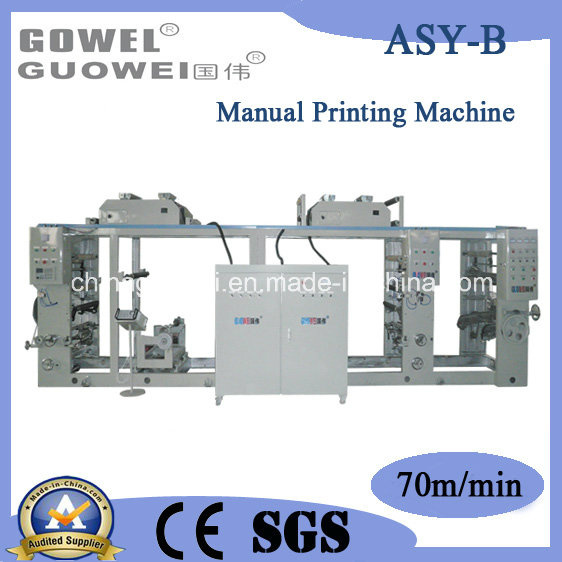

ASY-B Circuit Card Rogravure Printing Machine
Applicable materials:
This machine is suitable for aluminum foil tag special printing, and can be used in food, medicine and so on many kinds of, have the similar properties of the material more continuous rolling color printing
Unwind and Rewind:unwind Automatic struggle edge ,receiving and replacing material without stopping the machine
Printing:360 degrees adjustment gear box, with guide roller fine-tuning Don't stop registration devicemovable type doctor blade ,transverse reciprocating motion(optional pressure roller blades and all adopt pneumatic)
Dry oven:Two sections ofoven, conjoined twins oven(adopted the company patent technology), centrifugal big fan
Control:Channel steel chassis, the host frequency control, positive and negative a continuous printing.
Main Technical Parameters |
Model | ASY-600B | ASY-800B | ASY-1000B | ASY-1200B |
Printing colors | 6 (user can increase or decrease) |
Diamter of pring cylinder | 100-320mm |
Max.printing width | 600mm | 800mm | 1000mm | 1200mm |
diameter of unwind/rewind | 500mm |
Machine printing speed | 80m/min |
Max.printing speed | 50m/min |
Register precision | ±0.20mm |
Drying method | Electric heating and steam heating or oil heating |
Total power | 18kw | 22kw | 26kw | 32kw |
Weight of machine | 2500KG | 3000KG | 3500KG | 4000KG |
Overall dimension | 5100*1600*2300mm | 5100*1800*2300mm | 5100*2000*2300mm | 5100*2200*2300mm |
Our company specializes in gravure printing machine, laminating machine, slitting machine, bag making machine and film blowing machine production.
