Product Specifications
| Prod Model: |
WFQ-D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Brand Name: |
Guowei |
| Computerized: |
Yes |
| Condition: |
New |
| Certification: |
ISO9001:2008 CE |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Total Power: |
35kw/42kw/50kw/53kw |
| Voltage: |
380V |
| Warranty: |
One Year |
| Delivery Detail: |
60 Days |
| Type: |

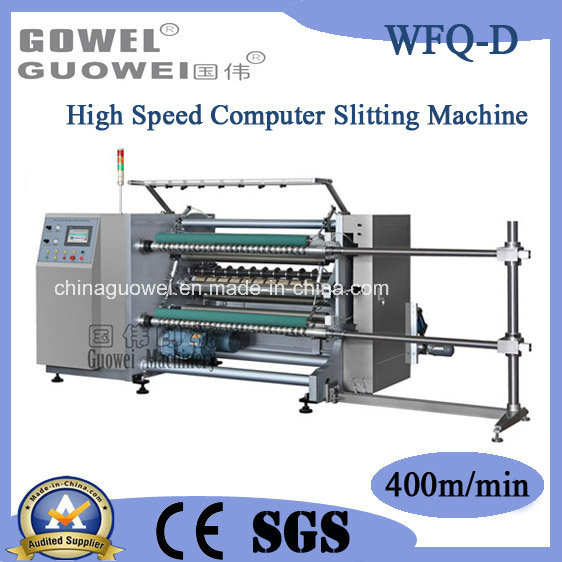

High-Speed Slitting Machine |
| Work Method: |
Flat Knife Slitting |
Product Description
Main Structure Character:
1.Unwinding tension through an independent vector variable frequency electrical paraments of the original pre-computing to achieve a constant tension.
2.Slitting Unit:This machine equipped with two kinds of slitting method:Flat knife slit and circular knife slit.
3.winding Unit:It use of three motor winding way ,rewinding shaft is import slip shaft that's pressure in center by pneumatic, With automatic tension compensation system ,so that rewinding tension is steady,don't adjust tension in accordance with the speed and diameter increases.
Main Technical Parameters
Jumbo roll width |
1000mm/1300mm |
Diameter of roll |
1000mm |
Diameter of rewinding |
600mm |
Inner dia. of paper core |
3"or 76mm(optional:6"or 152mm) |
Slitting speed |
10-400m/min |
Tolerance of EPC |
≤0.1mm |
Min. width of produce |
50mm |
Total power | 20KW |
| Weight of machine | 3800kg/4500kg |
| Overal dimension |
2400*4000*1900mm
2700*4000*1900mm |
Our company specializes in gravure printing machine, laminating machine, slitting machine, bag making machine and film blowing machine production.
Rui'an city guo wei printing machinery Co., Ltd is an enterprise specilize in producing complete set of plastic soft packing and paper packing equipment. Taking science and technology as support, requirement of customers as guideline perfect after-sale service as guarantee, our enterprise will exert ourselves to manufacture excellent equipment and vigorously develop new-type equipment.
Since its establishment, our company has been firmly insisting the factory building conviction of "quality first, customer supre me" and has been constantly perfecting internal mechanism and after-sale service system. We will pay special attention to internal management, actively accept feedback, bring about viruous circle and manufacture excellent equipment so as to repay the society.
Our company has been consistently abiding by principle of "treating somebody eith all sincerity and trust, mutual benefit and reciprocity, joint development", we are willing to establish long-term stable business relations with personalities of various circles.
We will be pleased to open to the new and old customers from home and abroad, who ever comes will be welcomed.
