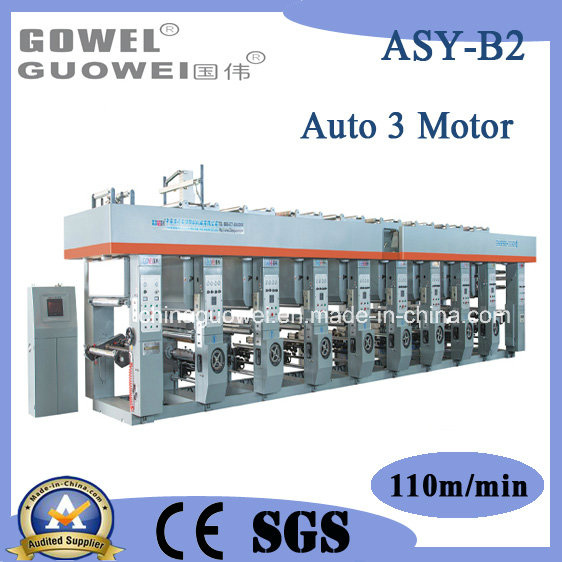

GWASY-B2 Computer Medium-Speed Printing
Machinery Three Motor
Applicable materials:
This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color, widely applied in all kinds of high grade print.
Main Structure Character:
1.Unwind and Rewind:Built-in double location with double arm and double station , Flatulence axis loading and unloading,unwinding double magnetic powder and the rewinding double torque motor, change fast, safe and reliable,Automatic cutting, high-speed non-stop change materials
Printing:vertical register system,high precision and less waste.doctor blade plays with double-axis.drive by independent motor
2.Dry oven:Patent technology,low consumption oven,high wind pressure high efficiency and energy saving system, several return air road, saves energy
3. Control:With the Siemens PLC control, YASKAWA frequency converter, three motor tension control system,main components are imported brand
Main Technical Parameters | ||||
Model | GWASY-600B2 | GWASY-800B2 | GWASY-1000B2 | GWASY-1200B2 |
Printing colors | 8 (user can increase or decrease) | |||
Diamter of pring cylinder | 100-320mm | |||
Max.printing width | 600mm | 800mm | 1000mm | 1200mm |
diameter of unwind/rewind | 600mm | |||
Machine printing speed | 130m/min | |||
Max.printing speed | 110m/min | |||
Register precision | ±0.12mm | |||
Drying method | Electric heating and steam heating or oil heating | |||
Total power | 80kw | 90kw | 100kw | 110kw |
Weight of machine | 12000KG | 13000KG | 14000KG | 15000KG |
Overall dimension | 12100*2500*2520mm | 12100*2700*2520mm | 12100*2900*2520mm | 12100*3100*2520mm |
If you want to know more about our Machine,pls contact with us
and get more technical and service datas.
Prod Model: | GWASY-B2 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: | Rotogravure Printing Machince |
Place Of Origin: | Zhejiang, China (Mainland) |
Drying Method: | Electric Heating and Steam Heating |
After-Sales Service Provided: | Engineers Availableto Service Machinery Overseas |
Condition: | New |
Brand Name: | Guowei |
Certification: | CE Certification |
Plate Type: | Gravure |
Voltage: | 220V/380V |
Packaging Details: | Rotogravure Printing Machine P |
Style: | Intaglio Printing Press |
Structure: | Platen Press |
Color & Page: | Multi-Colour Printing Press |
