Supplier: | Wenzhou Guowei Printing Machinery Co., Ltd. |
---|---|
Price: | US $ 10000-70000/Set |
Min Order: | 1/Set |
Quantity:: | |
Trade Terms: | FOB,CFR,CIF |
![]() |
Prod Model: | GWASY-A |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: | Rotogravure Printing Mach |
Brand Name: | Guowei |
Drying Method: | Electric Heating and Steam Heating or Oil Heating |
Printing Colors: | 8 Colors |
Condition: | New |
Place Of Origin: | Zhejiang, China (Mainland) |
Voltage: | 380V |
After-Sales Service Provided: | Engineers Available to Service Machinery Overseas |
Packaging Details: | Rotogravure Printing Machine PA |
Delivery Detail: | 60 |
Style: | Intaglio Printing Press |
Structure: | Platen Press |
Color & Page: | Multi-Colour Printing Press |
Usage: | Bill Printer, Card Printer, Cloths Printer, Label |

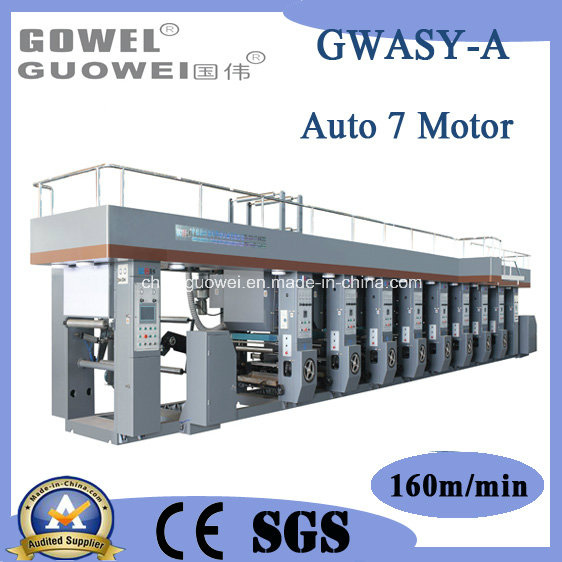

GWASY-A Computer High-Speed Printing
Machinery Rewind and Unwind Outside
Main Structure Character:
1. Unwind and Rewind:cantilever turret whirling stand with double arm and double station , Flatulence axis loading and unloading, change fast, safe and reliable,
2. Automatic cutting, high-speed non-stop change materials
3. Printing:vertical register system,high precision and less waste.doctor blade plays with double-axis.drive by independent motor
4. Dry oven:Patent technology,low consumption oven,high wind pressure high efficiency and energy saving system, several return air road, saves energy
5. Control:With the Siemens PLC control, YASKAWA frequency converter, seven motor tension control system,main components are imported brand
Applicable materials:
This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color, widely applied in all kinds of high grade print.
Main Technical Parameters
Model | GWASY-600A | GWASY-800A | GWASY-1000A | GWASY-1200A |
Printing colors | 8 (user can increase or decrease) | |||
Diamter of pring cylinder | 100-320mm | |||
Max.printing width | 600mm | 800mm | 1000mm | 1200mm |
diameter of unwind/rewind | 800mm | |||
Machine printing speed | 160m/min | |||
Max.printing speed | 150m/min | |||
Register precision | ±0.1mm | |||
Drying method | Electric heating and steam heating or oil heating | |||
Total power | 120kw | 140kw | 160kw | 180kw |
Weight of machine | 22000KG | 24000KG | 26000KG | 28000KG |
Overall dimension | 16600*2700*2750mm | 16600*2900*2750mm | 16600*3100*2750mm | 16600*3300*2750mm |
