(WFQ-A) Horizontal Automatic Slitting Machinery
Product Specifications
| Prod Model: |
WFQ-A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Place Of Origin: |
Zhejiang, China (Mainland) |
| Brand Name: |
Guowei |
| Computerized: |
Yes |
| Condition: |
New |
| Certification: |
ISO9001:2008 CE |
| After-Sales Service Provided: |
Engineers Available to Service Machinery Overseas |
| Total Power: |
35kw/42kw/50kw/53kw |
| Warranty: |
One Year |
| Voltage: |
380V |
| Max. Slitting Speed: |
170m/Min |
| Type: |
High-Speed Slitting Machine |
| Work Method: |
Flat Knife Slitting |
Product Description

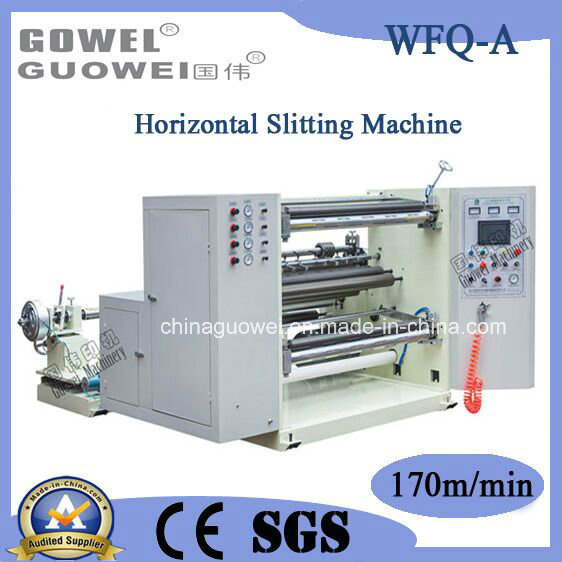

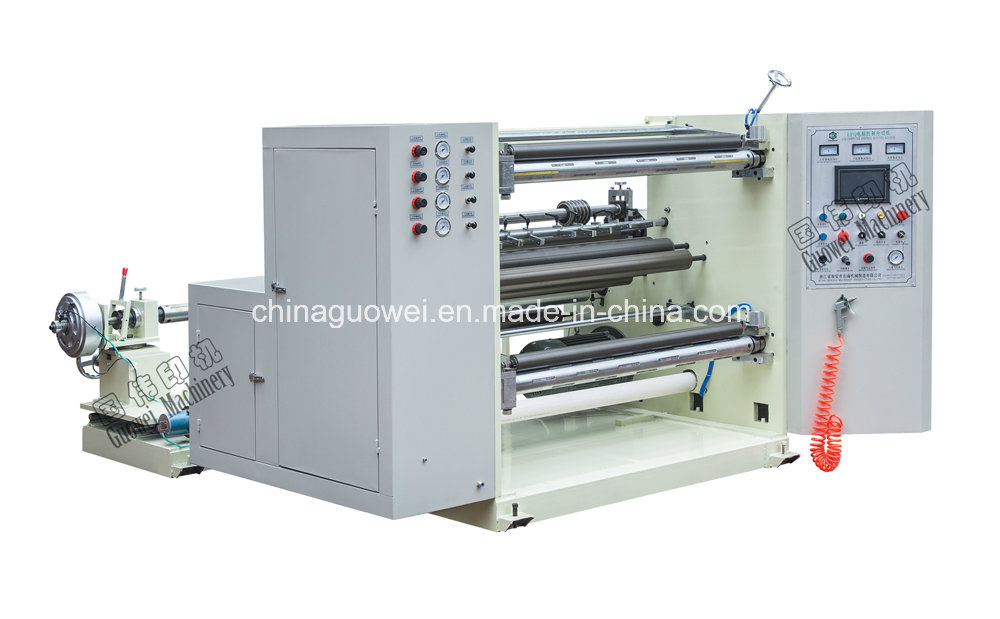

WFQ-A Horizontal Automatic Slitting Machinery
Application and Features
The machine is applied to slitting single layer plastic film of PET, OPP, CPP, PE, PS, PVC, etc., multilayer laminated plastic film, paper and other roll materials.
1. Vertical structure, with unwinder and rewinder at the same side.
2. Cast iron body, guarantee the stability at high speed.
3.Mechanical shaft is fixed by taper sleeve in order to be suitable for roll
materials with paper core transformed easily. The full unwinding shaft can be
disassembled and has one end rotatable.Double-photoelectric computer
E.P.C system is installed at first unwinding
4.Both up rewinding and down rewinding adopt air-expansion shafts, with
pressing rollers. The rewinding shafts have one end rotatable, convenient for
unloading, with heavy type rotating structure(not universal joint) that is durable. The shafts are locked by pneumatic.
5. The tension of unwinding and rewinding is controlled by magnetic powder.
6.Slitting edge is blown out by high power blower through recycling pipe at the
right side of the machine.
7. Main motor adopts frequency speed adjustment, Japan Yasukawa inverter.
8.Independent electrical operation box, computer integrated control, meter
counting while rewinding, presetting meter for auto stop
9.All guide rollers are highly hardened aluminum alloys, with static and dynamic equilibrium treatment.
Main Technical Parameters
Model
|
WFQ-1300A |
Width of machine
|
1300mm |
Max unwinding diameter
|
φ1000mm |
Max rewinding diameter
|
φ600mm |
Slitting speed
|
0-200m/min |
Total power
|
8kw |
Weight of machine
|
2200kg |
Overal dimension
| 1800*2800*1600mm |
|
|
|
|
If you want to know more about our Machine,pls contact with us
and get more technical and service datas.
