Price: | US $ 10000-70000/Set |
---|---|
Trade Terms: | FOB,CFR,CIF |
Min Order: | 1/Set |
Pay Type: | L/C,T/T,Paypal,Western Union |

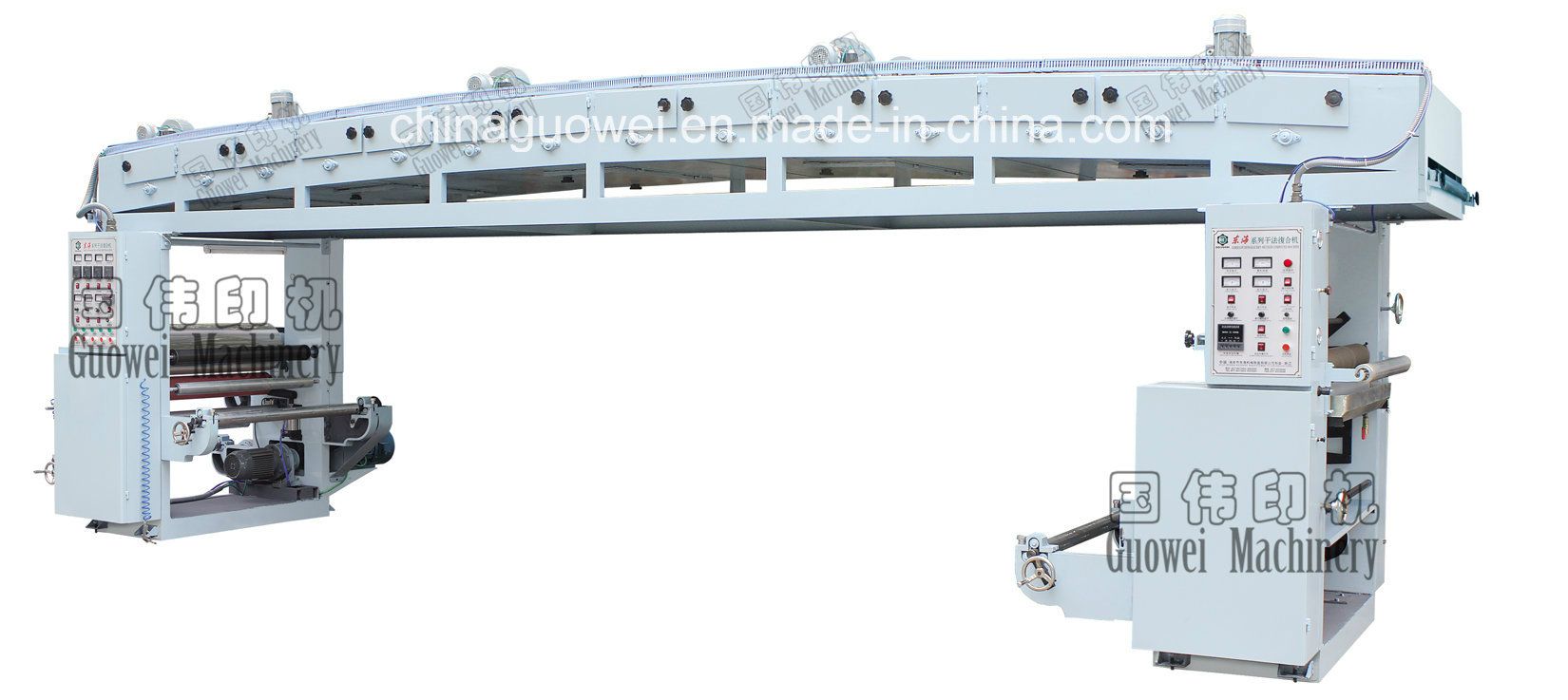

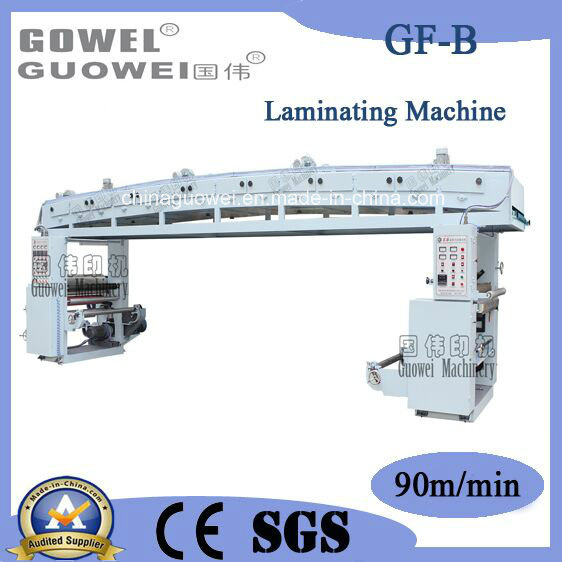

Medium Speed Dry Method Laminating Machine GF-B
Application and Features
The machine is applied to double layer or multilayer lamination for various roll materials, such as plastic film, paper and aluminum foil, etc.
1. Air-expansion shaft for first unwinding, second unwinding and rewinding.
2. Double-photoelectric computer E.P.C system is installed at first unwinding.
3. The tension of first unwinding and second unwinding is controlled by magnetic powder clutch.
4. Independent torque motor controls rewinding, with tension adjustable.
5. Glue spreading by anilox roller, doctor blade from Switzerland, independent motor responsible for horizontal moving of blade holder.
6. Main motor adopts frequency speed adjustment, Japan Yasukawa inverter.
7. Conductive oil heating inside laminating hot roller, with features of even temperature and power saving.
8. Gluing pressing roller and laminating pressing roller adopt pneumatic pressure and the pressure is adjustable.
9. Total length of oven is 7.5m. The inner guide rollers are shaped in arch, driven by chain actively.
10. The oven is electric heating, divided into 3 sections, with temperature independent control.
Main Technical Parameters
Model | GF600B/GF800B/GF1000B/GF1200B |
Max. laminating speed | 90m/min |
Max. laminating width | 600mm/800mm/1000mm/1200mm |
Total power | 35kw/42kw/50kw/53kw |
Weight | 4000kg/4500kg/5500kg/6000kg |
Dimension(L*W*H) | 8300*1500*2750mm/8300*1700*2750mm 8300*2200*2750mm/8300*2400*2750mm |
Prod Model: | GF-B |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Type: | Laminating Machine |
Place Of Origin: | Zhejiang, China (Mainland) |
Brand Name: | Guowei |
Packaging Type: | Bags, Barrel, Belt, Bottles, Cans, |
Packaging Material: | Paper, Plastic |
Warranty: | One Year |
Condition: | New |
Certification: | ISO9001:2008 CE |
Voltage: | 380V |
Max. Rewinding Dia: | 650mm |
Driven Type: | Electric |
Application: | Soft Board |
Automatic Grade: | Automatic |
Membrane Material: | Matt Film |
