Wenzhou Guowei Printing Machinery Co., Ltd. >> (GWASY-AH) Computer High-Speed Printer

(GWASY-AH) Computer High-Speed Printer

Name: (GWASY-AH) Computer High-Speed Printer
Brand: china-manufacturer-directory.com
SKU: 775151235
Availability: InStock
Rating: 4.6 (113 reviews)

Supplier:	Wenzhou Guowei Printing Machinery Co., Ltd.
Price:	US $ 10000-70000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	GWASY-AH
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Digital Printer
Place Of Origin:	Zhejiang, China (Mainland)
Brand Name:	Guowei
Drying Method:	Electric Heating and Steam Heating
Warranty:	One Year
Diameter Of Unwind/Rewind:	600mm
Condition:	New
After-Sales Service Provided:	Engineers Available to Service Machinery Overseas
Voltage:	380V
Certification:	ISO9001:2008 CE
Style:	Intaglio Printing Press
Structure:	Platen Press
Color & Page:	Multi-Colour Printing Press

Product Description

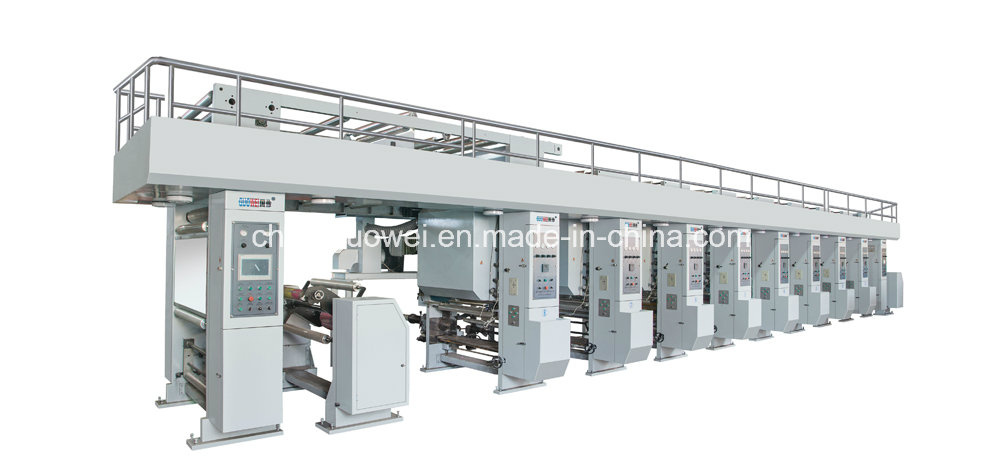

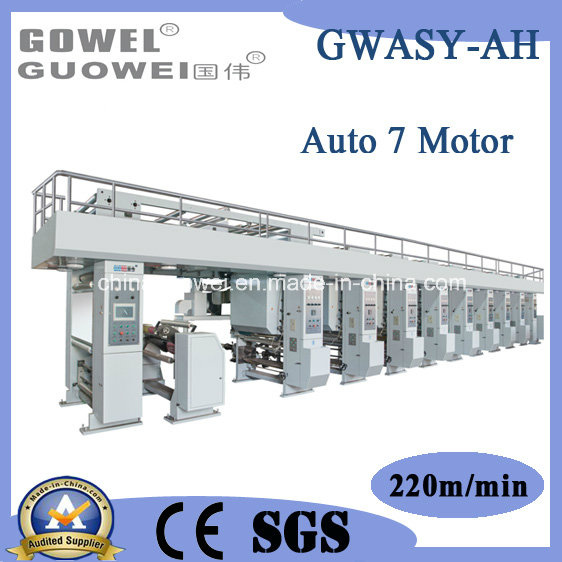

GWASY-AH Guowei Brand Rotogravure Aluminum Foil Printing Machine For Sale

Applicable materials:

This machine is used for BOPP,PET,PVC,PE,aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color,widely applied in all kinds of high grade print.

Main Structure Character:

1.Unwind and Rewind:cantilever turet whirling stand with double arm dounle
station,Flatulence axis loading and unloading,change fast,safe and reliable,Automatic cutting,high-speed non-stop change materials.

2.Printing:vertical register system,high precision and less waste.doctor blade plays with double-axis.drive by independent motor.

3.Dry oven:patent technology,low consunption oven,high wind pressure high efficiency and energy saving system,several return air road,saves energy.

4.Control:with the Siemens PLC control,YASKAWA frequency converter,seven motor tension control system,main components are imported brand.

Main Technical Parameters
Model	GWASY-600AH	GWASY-800AH	GWASY-1000AH	GWASY-1200AH
Printing colors	8 (user can increase or decrease)
Diamter of pring cylinder	100-320mm
Max.printing width	600mm	800mm	1000mm	1200mm
diameter of unwind/rewind	800mm
Machine printing speed	250m/min
Max.printing speed	220m/min
Register precision	±0.1mm
Drying method	Electric heating and steam heating or oil heating
Total power	150kw	170kw	190kw	210kw
Weight of machine	28000KG	32000KG	35000KG	38000KG
Overall dimension	1895028003370mm	1895023003370mm	1895023203370mm	1895034003370mm

Our company specializes in gravure printing machine, laminating machine, slitting machine, bag making machine and film blowing machine production.

Rui'an city guo wei printing machinery Co., Ltd is an enterprise specilize in producing complete set of plastic soft packing and paper packing equipment. Taking science and technology as support, requirement of customers as guideline perfect after-sale service as guarantee, our enterprise will exert ourselves to manufacture excellent equipment and vigorously develop new-type equipment.

Since its establishment, our company has been firmly insisting the factory building conviction of "quality first, customer supre me" and has been constantly perfecting internal mechanism and after-sale service system. We will pay special attention to internal management, actively accept feedback, bring about viruous circle and manufacture excellent equipment so as to repay the society.

Our company has been consistently abiding by principle of "treating somebody eith all sincerity and trust, mutual benefit and reciprocity, joint development", we are willing to establish long-term stable business relations with personalities of various circles.

We will be pleased to open to the new and old customers from home and abroad, who ever comes will be welcomed.
