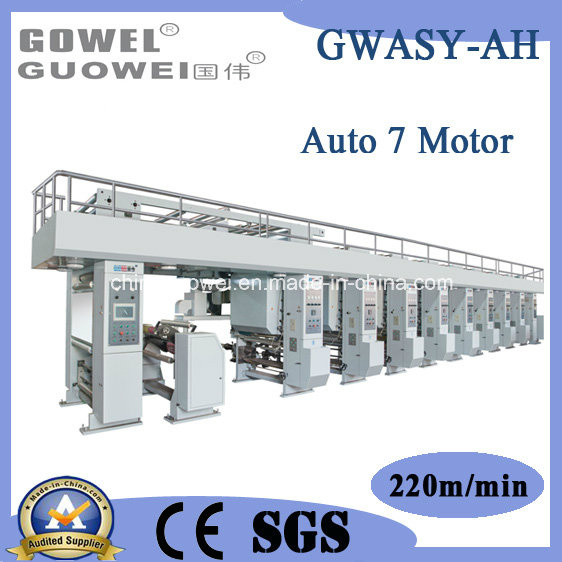

GWASY-AH Guowei Brand Rotogravure Aluminum Foil Printing Machine For Sale
Applicable materials:
This machine is used for BOPP,PET,PVC,PE,aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color,widely applied in all kinds of high grade print.
Main Structure Character:
1.Unwind and Rewind:cantilever turet whirling stand with double arm dounle station,Flatulence axis loading and unloading,change fast,safe and reliable,Automatic cutting,high-speed non-stop change materials.
2.Printing:vertical register system,high precision and less waste.doctor blade plays with double-axis.drive by independent motor.
3.Dry oven:patent technology,low consunption oven,high wind pressure high efficiency and energy saving system,several return air road,saves energy.
4.Control:with the Siemens PLC control,YASKAWA frequency converter,seven motor tension control system,main components are imported brand.
Main Technical Parameters |
| Model | GWASY-600AH | GWASY-800AH | GWASY-1000AH | GWASY-1200AH |
| Printing colors | 8 (user can increase or decrease) |
| Diamter of pring cylinder | 100-320mm |
| Max.printing width | 600mm | 800mm | 1000mm | 1200mm |
| diameter of unwind/rewind | 800mm |
| Machine printing speed | 250m/min |
| Max.printing speed | 220m/min |
| Register precision | ±0.1mm |
| Drying method | Electric heating and steam heating or oil heating |
| Total power | 150kw | 170kw | 190kw | 210kw |
| Weight of machine | 28000KG | 32000KG | 35000KG | 38000KG |
| Overall dimension | 18950*2800*3370mm | 18950*2300*3370mm | 18950*2320*3370mm | 18950*3400*3370mm |
Our company specializes in gravure printing machine, laminating machine, slitting machine, bag making machine and film blowing machine production.
Rui'an city guo wei printing machinery Co., Ltd is an enterprise specilize in producing complete set of plastic soft packing and paper packing equipment. Taking science and technology as support, requirement of customers as guideline perfect after-sale service as guarantee, our enterprise will exert ourselves to manufacture excellent equipment and vigorously develop new-type equipment.
Since its establishment, our company has been firmly insisting the factory building conviction of "quality first, customer supre me" and has been constantly perfecting internal mechanism and after-sale service system. We will pay special attention to internal management, actively accept feedback, bring about viruous circle and manufacture excellent equipment so as to repay the society.
Our company has been consistently abiding by principle of "treating somebody eith all sincerity and trust, mutual benefit and reciprocity, joint development", we are willing to establish long-term stable business relations with personalities of various circles.
We will be pleased to open to the new and old customers from home and abroad, who ever comes will be welcomed.
