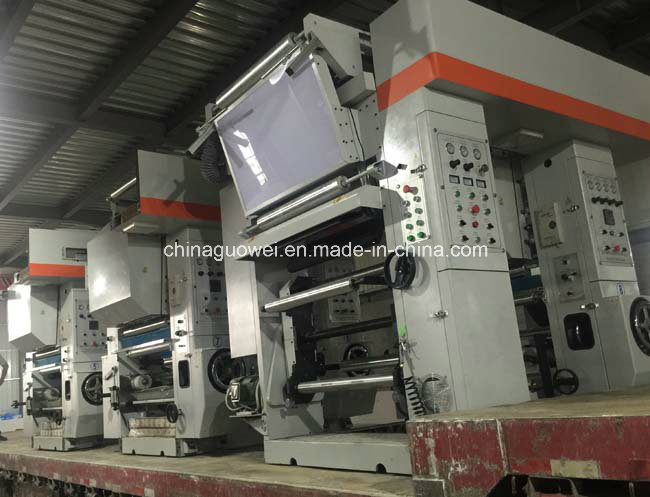

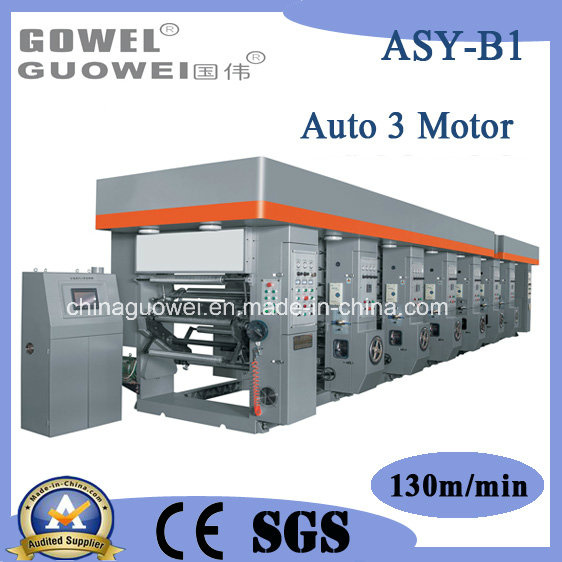

(GWASY-B1) Computer Medium-Speed Printing Machinery (Three Motor)

Name: (GWASY-B1) Computer Medium-Speed Printing Machinery (Three Motor)
Brand: China-Manufacturer-Directory.com
SKU: 775186855
Availability: InStock
Rating: 4.5 (99 reviews)

Supplier:	Wenzhou Guowei Printing Machinery Co., Ltd.
Price:	US $ 10000-70000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	GWASY-B1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type:	Digital Printer
Place Of Origin:	Zhejiang, China (Mainland)
Drying Method:	Electric Heating and Steam Heating
After-Sales Service Provided:	Engineers Availableto Service Machinery Overseas
Condition:	New
Brand Name:	Guowei
Voltage:	220V/380V
Plate Type:	Gravure
Certification:	CE Certification
Printing Colors:	1-8 Colors
Style:	Intaglio Printing Press
Structure:	Platen Press
Color & Page:	Multi-Colour Printing Press

Product Description

Applicable materials:

This machine is used for BOPP, PET, PVC, PE, aluminum foil and roll paper with excellent properties of thin film reel material printing more continuous printing color, widely applied in all kinds of high grade print.

Main Structure Character:

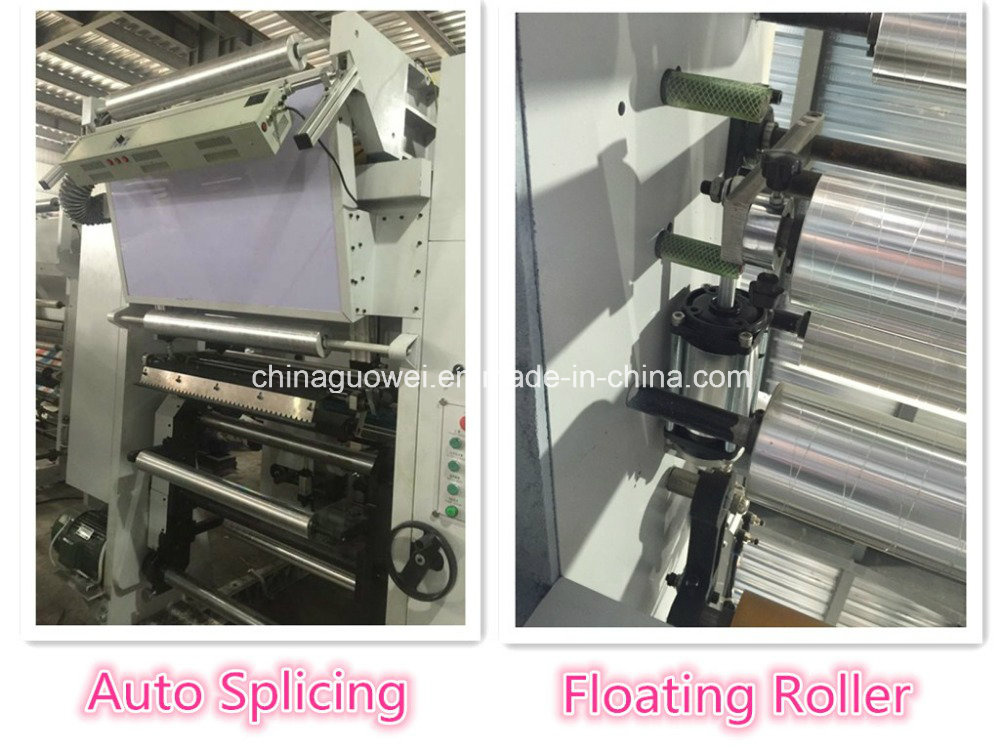

1.Unwind and Rewind:Built-in double location with double arm and double station , Flatulence axis loading and unloading,unwinding double magnetic powder and the rewinding double torque motor, change fast, safe and reliable,Automatic cutting, high-speed non-stop change materials

Printing:vertical register system,high precision and less waste.doctor blade plays with double-axis.drive by independent motor

2.Dry oven:Patent technology,low consumption oven,high wind pressure high efficiency and energy saving system, several return air road, saves energy

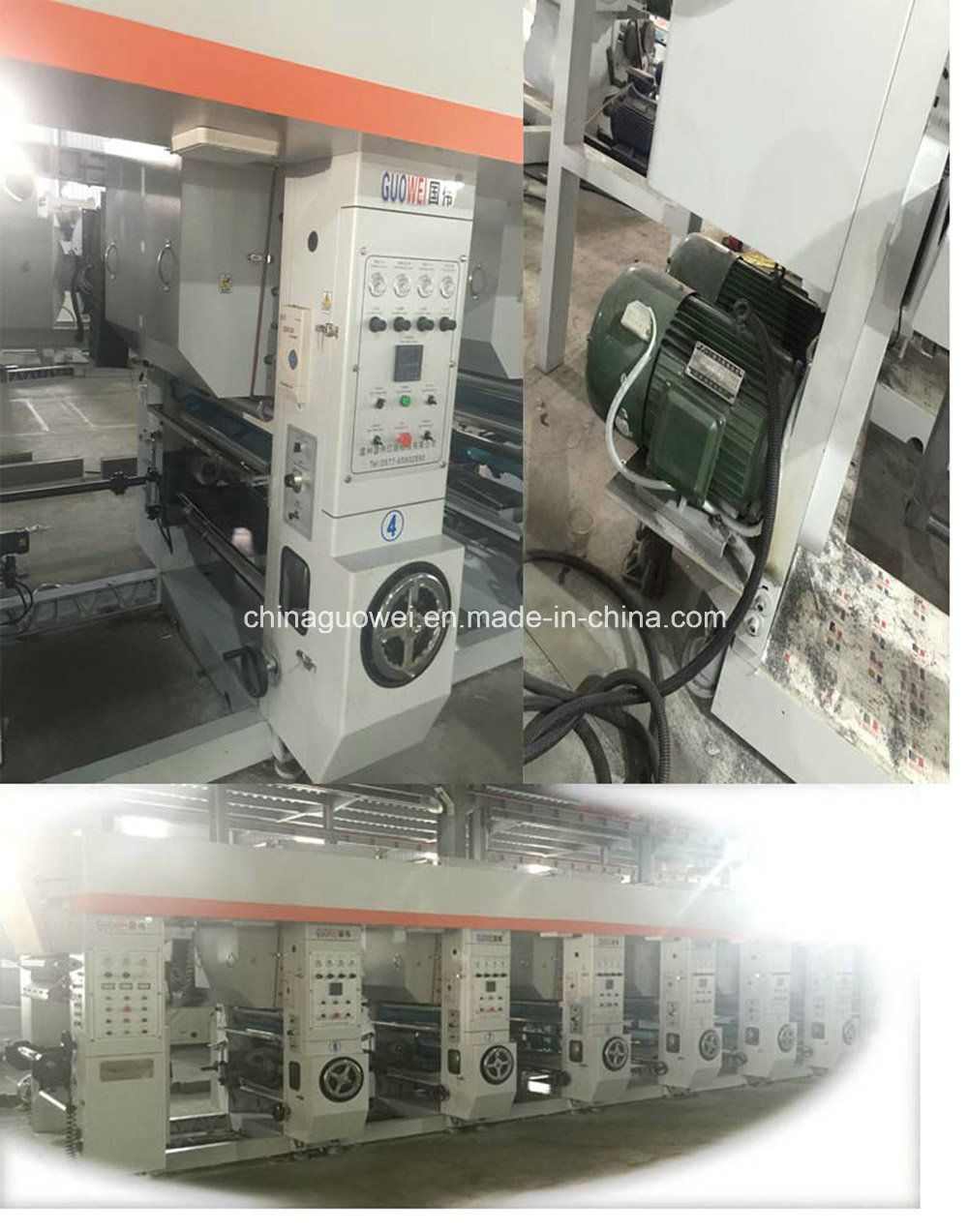

3.Control:With the Siemens PLC control, YASKAWA frequency converter, three motor tension control system,main components are imported brand.

Main Technical Parameters
Model	GWASY-600B1	GWASY-800B1	GWASY-1000B1	GWASY-1200B1
Printing colors	8 (user can increase or decrease)
Diamter of pring cylinder	100-320mm
Max.printing width	600mm	800mm	1000mm	1200mm
diameter of unwind/rewind	600mm
Machine printing speed	150m/min
Max.printing speed	130m/min
Register precision	±0.12mm
Drying method	Electric heating and steam heating or oil heating
Total power	100kw	120kw	130kw	140kw
Weight of machine	15000KG	16000KG	17000KG	18000KG
Overall dimension	1350025002610mm	1350027002610mm	1350029002610mm	1350031002610mm

If you want to know more about our Machine,pls contact with us

and get more technical and service datas.
