Hangzhou WREN Hydraulic Equipment Manufacturing Co., Ltd. >> H Series Low Profile Hex Cassette Hydraulic Torque Wrench

H Series Low Profile Hex Cassette Hydraulic Torque Wrench

Name: H Series Low Profile Hex Cassette Hydraulic Torque Wrench
Brand: china-manufacturer-directory.com
SKU: 701804862
Availability: InStock
Rating: 4.9 (120 reviews)

Supplier:	Hangzhou WREN Hydraulic Equipment Manufacturing Co., Ltd.
Price:	US $ 1000-4800/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	H Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brand:	Wren
Type:	H Series
Max Working Pressure:	700bar
Max Torque Value:	48,481n.M

Product Description

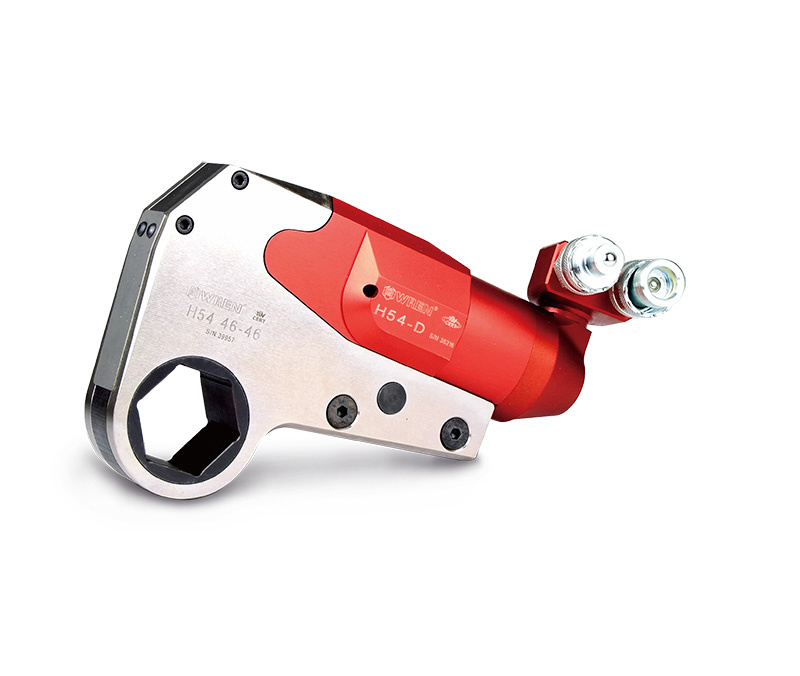

H Series Low Profile Hex Cassette Hydraulic Torque Wrench

-700 bar maximum working pressure, Repeat accuracy 3%
-5 different model from 2625~48481Nm
-Fitted with 360°x360° Uni-Swivel quick release couplings
-Low profile design to accessing limited areas
-Drivers and adaptors can be replaced easily

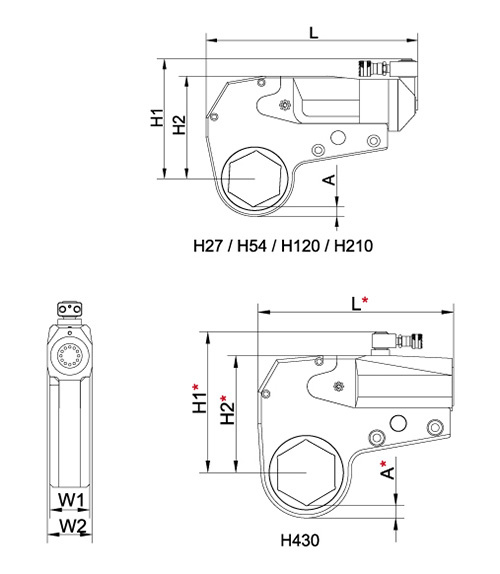

H Series Tchnical Data
TYPE	Torque(N.m)	Screw Size(mm)	Weight(Kg)	L	H1	H2	W1	W2	A
H27	262~2625	19~46	1.4	193	125	97	32	51	10~15
H27	306~3068	50~60	1.4	193	136	108	32	51	10~11
H54	537~5372	27-65	2.3	250	158	125	41	64	11~19
H54	603~6037	70~80	2.3	250	169	136	41	64	11.7~12
H120	1173~11737	50~80	3.8	310	189	157	52	78	15~15.2
H120	1434~14349	85~105	3.8	310	214	182	52	78	16~22
H210	2121~ 21216	70~100	6.4	378	223	191	64	97	18~21
H210	2312~23124	105~115	6.4	378	236	204	64	97	18~24
H430	4379~43792	80~117	16.1	405	291	242	83	93	25~31
H430	4848~48481	120~175	16.1	425	309	260	83	93	25~31

WREN was estblished in 1992, and we are professional manufactures of hydraulic equipments. Now, we manufacture hydraulic torque wrenches, torque wrench pumps, hydraulic cylinders, hydraulic hand pumps, herculean hydraulic pullers, electric pumps, air pumps, hydraulic bolt/nut tensioners and many other hydraulic tools. In the world, "made in WREN" means high quality, and that make us to be the biggest hydraulic torque wrench factory. At same time, we make electric pumps and air pumps by ourselves, that is unique on the world. In many developed country, always have our distributors.

Our company has 18, 000 square meters factory and office in HangZhou, which is 160km away from Shanghai, and have more than 260 staffs. Our products are well used in steel industry, shipbuilding, power station, petroleum industry, chemical industry, railway, rubber industry and other engineering industry. Now, we alreaday have distributors in American, Japan, Germany, Australia and Russia. We have OEM customer at many other countries in the world.

WREN is trustworthy!
