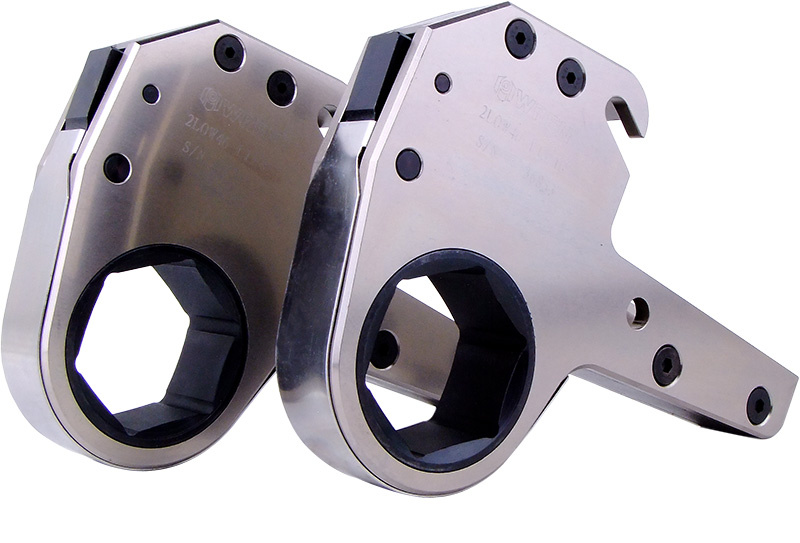

Low Profile Hex Cassette Link Hydraulic Torque Wrench (8LOW)
Price: |
Negotiable/Piece |
Trade Terms: |
FOB,CFR,CIF |
Min Order: |
1/Piece |
Pay Type: |
T/T |
Low Profile Hydraulic Torque Wrench
LOW series is the professional low profile hydraulic torque wrench which WREN vigorously extends in international market. Compare with the square drive hydraulic torque wrench, this series work directly on the nuts, and its body suits well in the narrow place. LOW covers the nuts from S19 to S175. To fulfill all different working situations, the user can just replace the hexagon cassettebecause the hexagon cassette is changeable, or add the reducer. WREN provide after-sales service all over the world, and already got the approved by TUV certificate.-70Mpa max working pressure; keep the accuracy ±3%.
-5 models with the range from 232-44593N.m

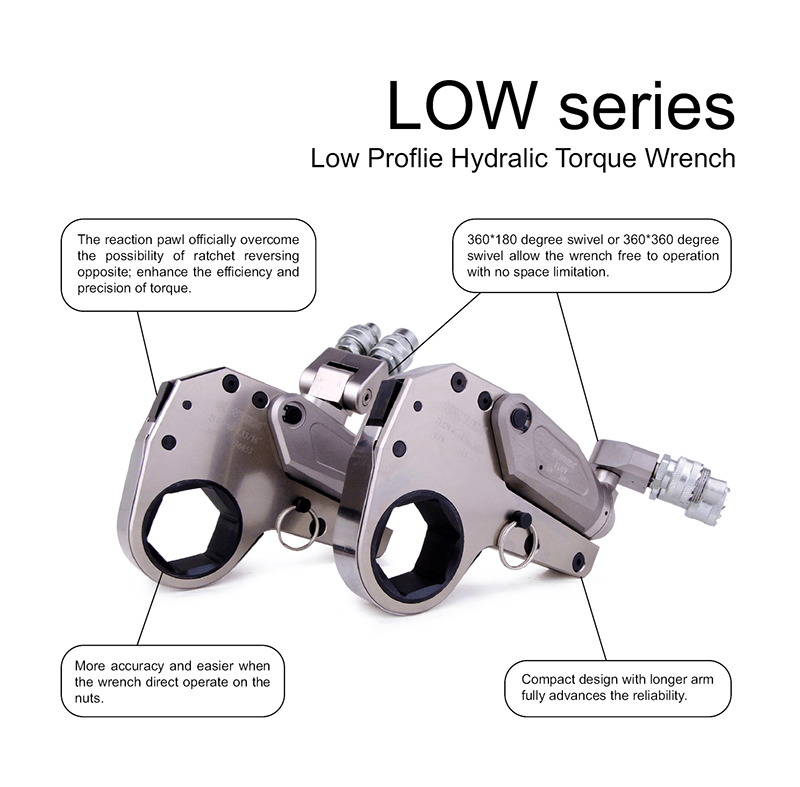

-360*180 degree swivel &360*360 degree swivel allow the wrench free to operation with no space limitation.
-More accuracy and easier when the wrench direct operate on the nuts.
-Compact design with longer arm fully advances the reliability.
-Compact design with the raw material of advanced -aluminum-titanium alloy, high intense.
-The new locking coupler ensures the oil keep free access.
LOW Series Selection Chart |
TYPE | 2LOW | 2LOW | 4LOW | 4LOW | 8LOW | 8LOW | 14LOW | 30LOW | 30LOW |
Torque | 232 ~2328 | 241~2414 | 585 ~5858 | 647~6474 | 1094~10941 | 1177~11774 | 1852~18521 | 4188 ~ 41882 | 4459 ~44593 |
Nut Size(mm) | 19 ~ 55 | 60 | 34 ~ 65 | 70 ~ 80 | 41~ 95 | 100~ 105 | 50~ 117 | 110~ 155 | 160~ 175 |
Power Head(Kg) | 1 | 1 | 2 | 2 | 3.3 | 3.3 | 5.5 | 11.4 | 11.4 |
Work Head(Kg) | 1.6 | 1.7 | 4.4 | 4.6 | 8 | 8.4 | 11.6 | 29 | 30 |

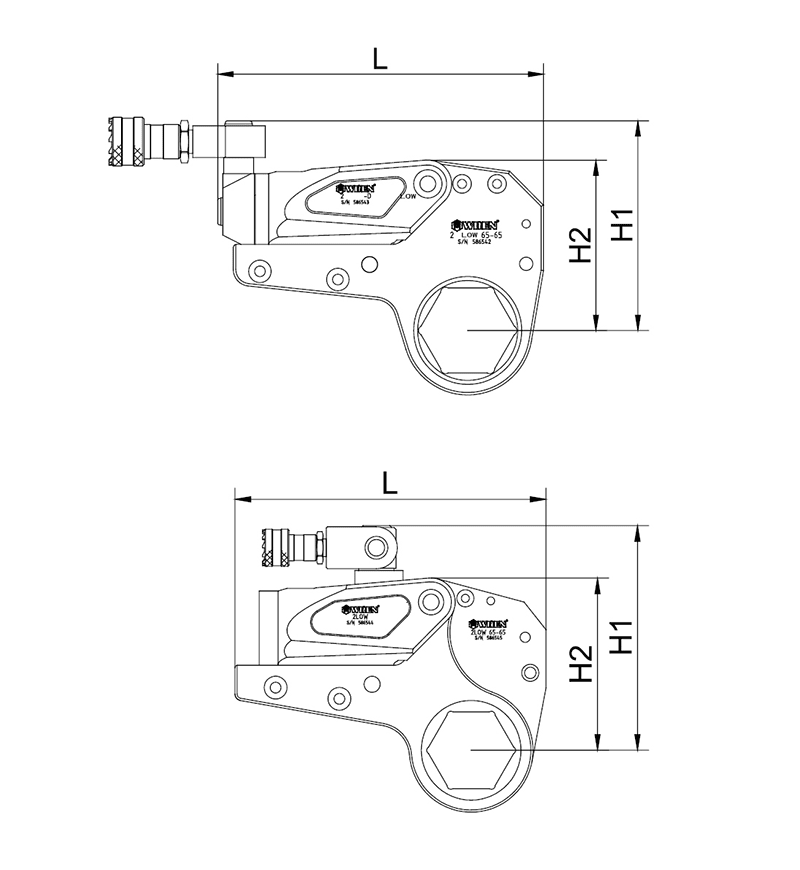

L | 196.4 | 196.4 | 245 | 246 | 300 | 301 | 361 | 430 | 441 |
H1 | 125.9 | 128.5 | 177 | 187 | 207 | 216 | 239 | 303 | 315 |
H2 | 102.3 | 105 | 135.7 | 145.7 | 169 | 178 | 204 | 272 | 285 |

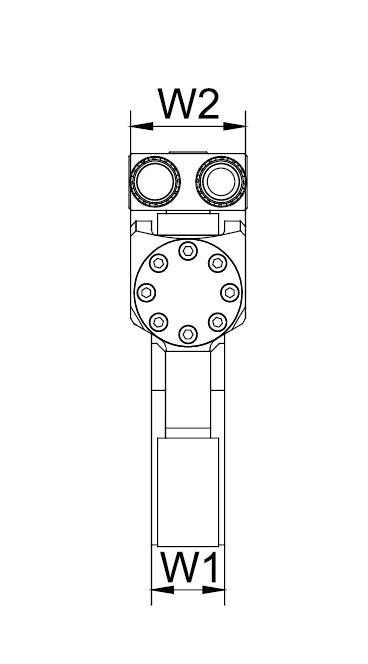

W1 | 32 | 32 | 42 | 42 | 53 | 53 | 64 | 85 | 85 |
W2 | 51 | 51 | 66 | 66 | 83 | 83 | 99 | 131 | 131 |
Prod Model: |
LOW |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Brand: |
Wren |
Type: |
Low Series Hydraulic Torque Wrench |
Torque Value: |
1094 N.M~11774 N.M |
Nut Size: |
41mm~105mm |
Max Working Pressure: |
700bar |
WREN was estblished in 1992, and we are professional manufactures of hydraulic equipments. Now, we manufacture hydraulic torque wrenches, torque wrench pumps, hydraulic cylinders, hydraulic hand pumps, herculean hydraulic pullers, electric pumps, air pumps, hydraulic bolt/nut tensioners and many other hydraulic tools. In the world, "made in WREN" means high quality, and that make us to be the biggest hydraulic torque wrench factory. At same time, we make electric pumps and air pumps by ourselves, that is unique on the world. In many developed country, always have our distributors.
Our company has 18, 000 square meters factory and office in HangZhou, which is 160km away from Shanghai, and have more than 260 staffs. Our products are well used in steel industry, shipbuilding, power station, petroleum industry, chemical industry, railway, rubber industry and other engineering industry. Now, we alreaday have distributors in American, Japan, Germany, Australia and Russia. We have OEM customer at many other countries in the world.
WREN is trustworthy!
