Product Specifications
| Prod Model: |
H3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Black/Blue/Optional |
| Host PC: |
Industrial Host PC |
| RAM: |
4G DDR3 |
| HDD: |
500g HDD |
| Touchscreen Monitor: |
17"/19" Capacitive/Saw/IR Touchscreen Monitor |
| Thermal Printer: |
Custom Tg2480 |
| Bill Validator: |
Mei Scl83 |
| Size: |
(Customizable) |
| Weight: |
180kg |
| Certification: |
ISO |
| Type: |
ATM |
Product Description

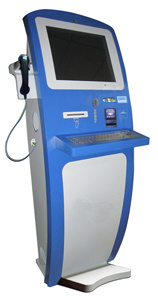

H3 is a selfservice insurance selling touchscreen payment ticket information&internet access kiosk terminals with cash payment validator metal keyboard biometric fingerprint reader and bank card reader & EPP UPS.
With the industrial host computer, bill validator, coin acceptor, metal keyboard with trackball mouse, biometric fingerprint reader, bank card reader, 3DES EPP and UPS, H3 is ideal for the online touchscreen payment ticket information kiosk terminals of banks, insurance company, movie theatre, super store and various other applications.
OEM/ODM is welcome.
Applications:
Billing Kiosk
Marketing Kiosk
Music Download Kiosk
Multimedia Kiosk
On-Line Banking Kiosk
Order Entry Kiosk
Bespoken Kiosk
Prepaid Kiosk
Redemption Kiosk
Retail Kiosk
Security Kiosk
Self-Service Kiosk
Ticketing Kiosk
Tourism Kiosk
Trade Show Kiosk
Payment Kiosk
Check In Kiosk
Custom Kiosks
Directory Wayfinder Kiosk
Employee Self-Service Kiosk
Gaming Kiosk
Gift Registry Kiosk
HR Kiosk
Identification Verification Kiosk
Information Kiosk
Interactive Kiosk
Internet Kiosk
Internet Pay For Use Kiosk
Kiosk OEM
Kiosk ODM
|
FEATURES |
|
Sleek design Study structure with industrial host computer, touchscreen monitor,coin acceptor, bill acceptor,mechanic metal keyboard, bank card reader, EPP,thermal printer Waterproof infrared touchscreen monitor optional |
|
Hardware Configurations&Specifications |
|
|
Host: |
ZKTEK TH-H81D mini ITX industrial mother board on H81 chipset CPU: Intel G3420T CPU/Haswell LGA1150/2.7GHz/0.5+3M Cache/22nm RAM: 4GB(2GB*2) DDRIII 1333M Hz; Hard Disk: 500G HDD 1*GbE RJ45 Net Port,6*RS232, 1*PCIe X16, 2* mini PCIe,10 USB ports VGA, DVI and HDMI with Integrated Intel HD Graphic 4600 in CPU Integrated DVD RW, media card reader 1x3 jack Audio interface, and internal 5.1 channel 3D sound interface 24PIN+4PIN ATX 24/7 sustainable |
|
|
Display: |
Size: 19" TFT LCD
Resolution: 1280 x 1024
Brightness: 300 cd/m
Viewing Angle: 178/178 |
|
|
Touch Screen: |
Optical infrared or SAW touch screen
Calibration: Once-Only, Four Points With no Drift
Touch material: Finger, Gloved Hand or Any Other Pointer
Activation force: No Pressure Required for infrared touch
Response Time: 8ms |
|
|
Coin acceptor(optional): |
coin acceptance 24 active channels, up to 12 different coins or tokens
Coin sizes diameter: 15-31mm thickness: 3.2 mm
coin blocking 14 dip switches for blocking individual or groups of coins
standard temperature range -20 C to +70 C
humidity classification according to DIN 40040: F
body dimensions height x width x depth 102 x 89 x 52 mm (excluding front plate)
supply voltage 12 to 24 volts
supply current < 60 mA (during coin acceptance briefly 350 mA at 12 volts),
battery operation - in idle mode 5 mA
interfaces CCTALK pulse or serial |
|
|
Bill Validator(optional): |
62-85mm(W), 120-177mm(L) multi-width bill validation
validation rate:98% or greater
Approximately 3 seconds to stack
Note Insertion - up to 46 notes, four ways, face up & down
scans 100% of both faces of each bill using six wavelengths,
including visible, ultraviolet and infrared
Cassette: Up to 1200 street-grade notes
Bezel Options: General, Block-Coin,Stack, other
Escrow:One note
Power Supply: 12V to 24V dc
Interface:RS232, USB |
|
|
Mechanic Metal Keyboard with trackball mouse: |
64Keys Metal Keyboard with Trackball(IP65 NEMA 4X);
Faceplate: 372*102mm,Trackball Diameter:38mm;
Lettering: Sunk laser legends & characters in high quality ink;
Switch life: more than 2 million of operations;
CE, RoHS, FCC,
Interface: USB |
|
|
Bluetooth: |
V1.2, compatible to V1.1;
Speed: 1MB/s; Max transmission distance: 10m
Support:bluetooth mobile, laptop, PAD, bluetooth printer, and bluetooth keyboard and mouse
System requirements:Windows 98/SE, Windows ME, windows2000, Windows XP
Interface: USB 2.0 |
|
|
3DES metal EPP: |
Waterproof 16 keys stainless steel metal keypad
Keys: laser print or chemical etch keys filled with color ink
Super durability: over 2,000,000 times with 0.45mm knock gap
Press strength:3N with temperature range -40C~65C
CE, RoHS, FCC
Interface: RS-232+PS2 |
|
|
Handset: |
Vandalism-resistance handset
With fork |
|
|
Biometric finger print reader: |
Resolution:500dpi@8bit per pixel;Speed:AuthenticationTime<1s
Processor:400 MHz DSP;FingerPrint Area:14.2*0.4mm
Flash Memory: 1MB, EER<0.1%, Enrollment Time:850 msec
PowerSupply:3.3V
Dimensions:55*40*8mm
Interface: RS232/RS485/422 |
|
|
Bank card reader: |
Motorized magnetic&IC card readable type,Can confiscate card
EMV Ver.4.0 compliant for IC and magnetic card
ISO/IEC 7811 JIS X6301/6302 tr1&2&3 read
ISO/IEC 7816JIS X6303 R/W; Protocol:T=0,1; EMV handling:EMV4.0
Full insert shutter
Interface: USB, RS232C; Power, 12V |
|
|
Receipt Thermal Printer: |
Themal Printer, Paper width:80mm,
Paper roll: 180mm, Thickness:60 to 120g/m2
Print Speed: 220mm/s,resolution: 203 dpi (8 dots/mm)
Automatic cutter only;out alarm/to be run out alarm,Jam
Data buffer: 16 KB,Flash memory: 384 KB,Graphics memory: 2 logos
OMR,Black mark sensor,remote accessible Full Status Monitor Driver
Interface: RS232 / USB / Ethernet |
|
|
UPS: |
Voltage range:170V~255V
Power Rate:0.5KVA/260W
Capacity:12V/32W×1
Transfergap:6ms;Overload power:450W
Self-protection;overload protection;Error led alert; RJ45/RJ11
Interface USB/RS-232 |
|
|
Camera: |
CMOS
300,000 pixel with wide angel lens;Dynamic resolution:640×480
Support Insert Value upto 1.3m pixel;
With adjustable rubber base and quick snap button
Builtin microphone; smart face detection
Interface: USB 2.0 |
|
|
Audio: |
Bi-channel amplified output;
Multimedia stereo speaker |
|
|
Enclosure: |
1.5mm all steel anti-graffiti enclosure |
|
|
Add-ons |
Lightbox,Custom LOGO plate,custom painting, low noise ventilation fans,mechanic locks and keys,power cable, LAN cable, antenna(WIFI&3G/GPRS),fuse,expansion bolt
|
|
|
|
Software Specifications |
|
|
Operating System: |
Windows XP, 7, Mac O/S
|
|
|
Functionalities: |
Cash Payment
Pay-for-use internet access
Bluetooth download for cellphone
Music vending
Invoice printing
Information
Service
|
|
|
Accessories |
|
|
Included: |
AC Power Cord
LAN cable
User Manual
Drivers CD |
|
|
Optional: |
External Stereo Speakers
External PC
2nd display |
|
|
Physical Characteristics |
|
|
Weight: |
tbd |
|
|
Size: |
|
|
|
Color: |
Red&yellow, Sliver, Yellow, Black or other color |
|
|
Environmental: |
5-40 Degrees (c)
20-80% Humidity
Power Consumption 450 Watts
|
|
