Shenzhen Zhongkong Computers Co., Ltd. >> Sj10 Wall Mount Stainless Steel Kiosk with Nfc Reader, Thermal Printer and 2d Barcode Reader

Sj10 Wall Mount Stainless Steel Kiosk with Nfc Reader, Thermal Printer and 2d Barcode Reader

Name: Sj10 Wall Mount Stainless Steel Kiosk with Nfc Reader, Thermal Printer and 2d Barcode Reader
Brand: China-Manufacturer-Directory.com
SKU: 676216571
Availability: InStock
Rating: 4.3 (90 reviews)

Supplier:	Shenzhen Zhongkong Computers Co., Ltd.
Price:	US $ 2700/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SJ10
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black/Blue/Optional
Host PC:	Industrial Host PC
RAM:	4G DDR3
HDD:	500g HDD
Touchscreen Monitor:	17"/19" Capacitive/Saw/IR Touchscreen Monitor
Thermal Printer:	Custom Vkp80
2d Barcode Scanner:	Honeywell Fs16-5180/5680
Size:	(Customizable)
Weight:	45kg
Certification:	ISO
Type:	Internet Kiosk

Product Description

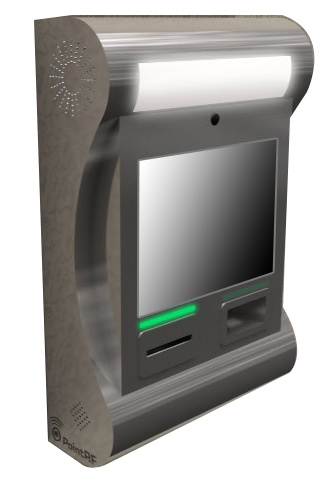

SJ10 is a wall mount stainless steel kiosk with NFC reader, thermal printer and 2D barcode reader

FEATURES
Wall mounted kiosk
Study structure with industrial host computer, touchscreen monitor, thermal printer and 2D barcode scanner
Waterproof infrared touchscreen monitor optional

Hardware Configurations&Specifications

Host:

i3 mini ITX Industrial Host Computer	ZKTEK TN-C3217U
	CPU&Chipset: Mobile Intel Core i3 3217U/1.8GHz/HM77
	RAM: 4GB DDRIII; Hard Disk: 500 G HDD
	1GbE RJ45 Net Port,2RS232,
	HDMI+VGA(DVI optional), 18bit LVDS and 24 bit LVDS with Intel HD4000
	Integrated 3D sound card
	6 USB ports(include 2 USD3.0), 2 mini PCIe
	DC single power suit kit, Power Cable; Newtwork Cable
	24/7 sustainable

Display:

Size: 17" TFT LCD(LED backlighted)
Resolution: 1024 x 768
Brightness: 400 cd/m
Viewing Angle: 70/70

Touch Screen:

Optical infrared or SAW touch screen
Calibration: Once-Only, Four Points With no Drift
Touch material: Finger, Gloved Hand or Any Other Pointer
Activation force: No Pressure Required for infrared touch
Response Time: 8ms

Thermal printer:

Themal Printer, Paper width:80mm, Paper roll: 180mm, Thickness:60 to 120g/m2 Print Speed: 220mm/s,resolution: 203 dpi (8 dots/mm) Automatic cutter and presenter;out alarm/to be run out alarm,Jam Data buffer: 16 KB,Flash memory: 384 KB,Graphics memory: 2 logos OMR,Black mark sensor,remote accessible Full Status Monitor Driver Interface: RS232 / USB / Ethernet

2D barcode scanner

HF5180F:626nm+/-30nm visible laser,CMOS:752×480pixel Read almost all formats of 1D and 2D barcode, OCR, Postcode Scan width(degree): +/-40°;Scan angle: 360° Movement tolarence: 4 inch/second Minimium size:6.60 mil (PDF 417)

Audio:

Bi-channel amplified output;
Multimedia stereo speaker

Enclosure:

1.5mm all steel anti-graffiti enclosure

Add-ons

Lightbox,Custom LOGO plate,custom painting, low noise ventilation fans,mechanic locks and keys,power cable, LAN cable, antenna(WIFI&3G/GPRS),fuse,expansion bolt

Software Specifications
	Operating System:	Windows XP, 7, Mac O/S, Linux
	Functionalities:	Internet access Information Service

Accessories
	Included:	AC Power Cord LAN cable User Manual Drivers CD
	Optional:	External Stereo Speakers External PC

Physical Characteristics
	Weight:	45 Kg
	Size:
	Color:	Red&yellow, Sliver, Yellow, Black or other color
	Environmental:	0-60 Degrees (c) 0-95% Humidity Power Consumption 350 Watts

Shenzhen ZHONGKONG Computers Co. Ltd(ZKTEK hereinafter) is located in Shenzhen, China. We are the developer of custom kiosk and digital signage who have the designers and facilities to OEM and ODM your kiosk and digital signage with high quality and good price.

We developed a lot of custom and innovative solutions as project-specified models for dedicated tenders. Now ZKTEK has been a professional company that produces a series of high standard self-service terminals such as touchscreen kiosk, digital signage and other POS devices. With highly flexible integration of hardware and software, ZKTEK solutions have been deployed in many kinds of kiosk applications.

ZKTEK has the following latest main products and solutions:
A. Industrial computing and data entry for kiosk solutions
B. Internet kiosk, payment kiosk, gaming kiosk, iPad kiosk enclosure and iPad USB adaptor (iPad magnetic card reader)
C. Book and bicycle rent kiosk(dedicated for projects only)
D. Outdoor kiosks and digital signages
E. Mini printer with presenter and retractor (official patent pending)

ZKTEK has extensive experience in payment kiosk and related application development. We are also ready to develop outdoor and innovative (stainless steel, high brightness, LED backlighted, iPad card reading, full HD and Hi-Fi audio related) kiosk solutions. ZKTEK has a strong hardware and software engineering team. The engineers have rich experience in banking application development.

They have been doing bank projects for many years.
Since ZKTEK was established, we have defined the company business strategy to be Customer Focus Strategy. We are committed to providing innovative and customizable products, services and solutions to generate a long-term value and potential growth for our customers.

Based on our Customer Focus Strategy, we are developing more and more products and technologies for international customer unique requirements.
ZKTEK mission: To set the new standard of made in China products.
