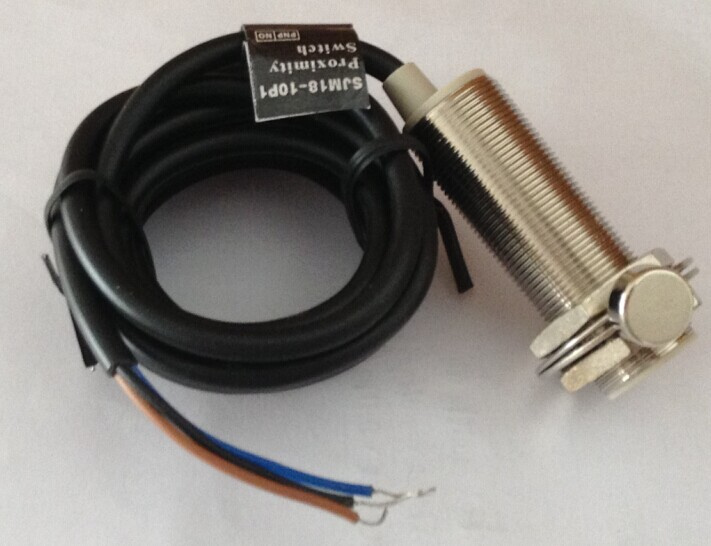

Hall Type Proximity Switch/Sensor (SJM8, SJM12, SJM18 Series)
Product Specifications
| Prod Model: |
SJM8, SJM12, SJM18 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Non-Flush |
| Working Power: |
DC6-36V, AC90-250V |
| Working Temperature: |
-25 to +75 Centigrade(No Ice) |
| Detected Object: |
Magnetic Metal |
| Response Frequency: |
0.3kHz/25Hz |
| Output: |
Switching Sensor |
| Usage: |
Position Sensor |
| Theory: |
Magnetic Sensor |
| Material: |
Brass-Nickel Plated&Heat-Resisting ABS |
Product Description
DescriptionProximity switch is one of position switches. When it operates, no need to make a mechanical
contact. It is also called no contact switch. As soon as the detected object approaches to the
surface of the sensor distance range, It begins to act with no contact, no pressure form, then
drive AC or DC electrical or computer equipment to provide control instructions.
C. Lin brand proximity switches covers: Inductive proximity switches, Capacitive proximity switches,
Hall sensor, photoelectrical sensors. They are widely used in machinery, texitle, metallurgy, tobacco,
railway, war industry and so on.

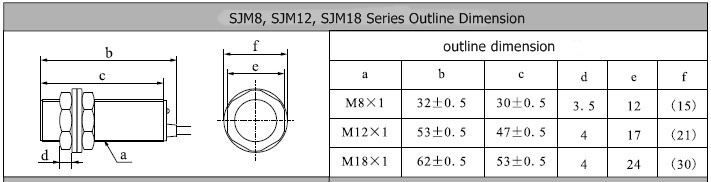

Outline Dimension
|
Model |
SJM8 Series |
SJM12 Series |
SJM18 Series |
|
DC Type |
NPN |
NO |
SJM8-8N1 |
SJM12-10N1 |
SJM18-10N1 |
|
PNP |
NO |
SJM8-8P1 |
SJM12-10P1 |
SJM18-10P1 |
|
2-wire |
NO |
SJM8-8D1 |
SJM12-10D1 |
SJM18-10D1 |
|
AC Type 2-wire |
NO |
SJM8-8A1 |
SJM12-10A1 |
SJM18-10A1 |
|
Detection distance |
8mm±15% |
10mm±15% |
10mm±15% |
|
Standard detected object |
permanent magnet Ø8*5mm |
permanent magnet Ø8*5mm |
permanent magnet Ø8*5mm |
|
Response frequency |
DC |
0.3KHz |
0.3KHz |
0.3KHz |
|
AC |
25Hz |
25Hz |
25Hz |
Xinling Electrical Co., Ltd. China was established in 1990. The company has 9 sub-branches, more than 100 cooperation units, and 100 direct distributors, 1000.00m2 factory area and 1000 stuffs.
The company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, itsstreng thens the management or enterprise and promotes product quality. The company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.
The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.
Xinling --- will create a magnificent tomorrow together with you!
