Inductive Plane Installation Type Proximity Switch/Sensor (LJP36, 42, 48, 55M Series)
Product Specifications
| Prod Model: |
LJP36, 42, 48, 55M Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Installation: |
Non-Flush |
| Working Power: |
DC6-36V, AC90-250V |
| Working Temperature: |
-25 to +75 Centigrade(No Ice) |
| Detected Object: |
Metal ( Iron, Steel, Copper etc. ) |
| Output: |
Switching Sensor |
| Usage: |
Position Sensor |
| Theory: |
Magnetic Sensor |
| Material: |
Heat-Resisting ABS |
Product Description
Description
Proximity switch is one of position switches. When it operates, no need to make a mechanical
contact. It is also called no contact switch. As soon as the detected object approaches to the
surface of the sensor distance range, It begins to act with no contact, no pressure form, then
drive AC or DC electrical or computer equipment to provide control instructions.

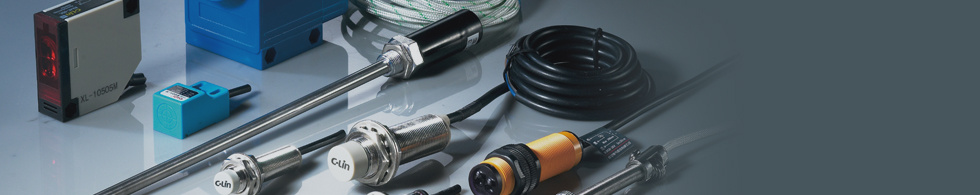

C. Lin brand proximity switches covers: Inductive proximity switches, Capacitive proximity switches,
Hall sensor, photoelectrical sensors. They are widely used in machinery, texitle, metallurgy, tobacco,
railway, war industry and so on.

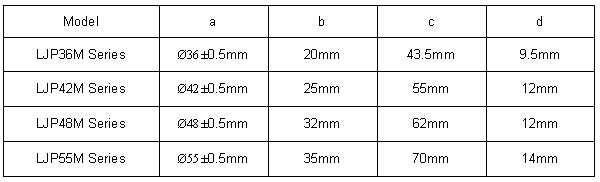

Outline Dimension
| Model | LJP36M Series | LJP42M Series | LJP48M Series | LJP55M Series |
| DC Type | NPN | NO | LJP36M-15N1 | LJP42M-18N1 | LJP48M-20N1 | LJP55M-25N1 |
| NC | LJP36M-15N2 | LJP42M-18N2 | LJP48M-20N2 | LJP55M-25N2 |
| PNP | NO | LJP36M-15P1 | LJP42M-18P1 | LJP48M-20P1 | LJP55M-25P1 |
| NC | LJP36M-15P2 | LJP42M-18P2 | LJP48M-20P2 | LJP55M-25P2 |
| 2-wire | NO | LJP36M-15D1 | LJP42M-18D1 | LJP48M-20D1 | LJP55M-25D1 |
| NC | LJP36M-15D2 | LJP42M-18D2 | LJP48M-20D2 | LJP55M-25D2 |
| AC Type | 2-wire | NO | LJP36M-15A1 | LJP42M-18A1 | LJP48M-20A1 | LJP55M-25A1 |
| NC | LJP36M-15A2 | LJP42M-18A2 | LJP48M-20A2 | LJP55M-25A2 |
| Detection distance | 15mm±15% | 18mm±15% | 20mm±15% | 25mm±15% |
| Response frequency | DC | 0.1KHz | 0.05KHz | 0.1KHz | 0.1KHz |
| AC | 25Hz | 25Hz | 25Hz | 25Hz |
