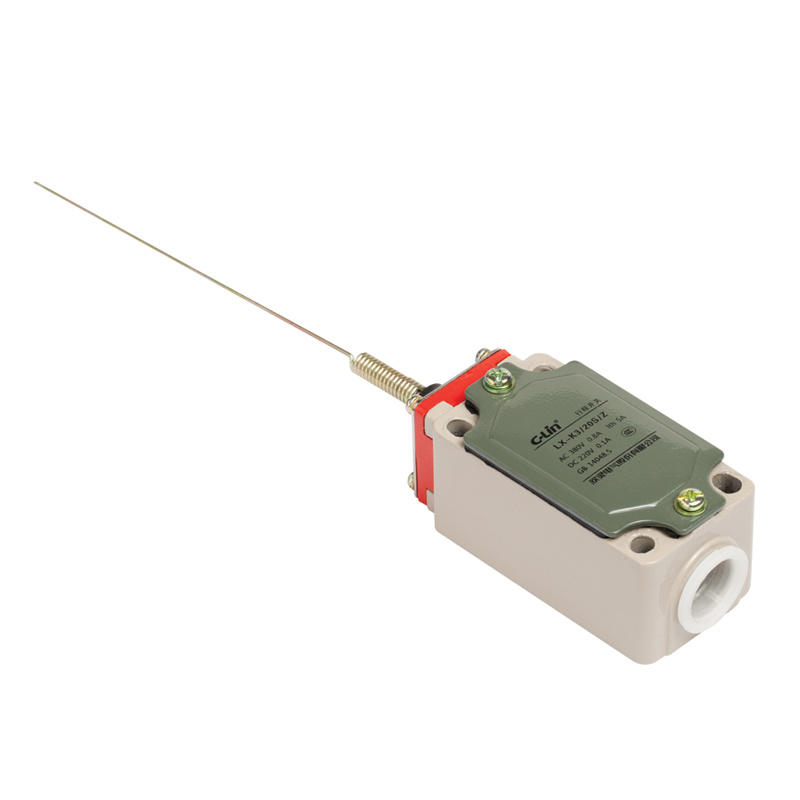

Lxk3 Limited Switch (LXK3/20S/W)
Product Specifications
| Prod Model: |
LXK3/20S/W |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
to Control Electrical Roagnet of AC or DC |
| Rated Value: |
Rated Insulation Voltage Ui-380V |
| Protection For Short-Circuit: |
Rated Fuse Current 100arl1-15/10 |
| Operation Frequency: |
AC 2400 Times Per Hour, DC 1200 Times Per Hour |
| Vibration Resistance: |
Frequency: 10-55Hz, Acceleration: 10g ( 90m /S) |
| Protection Degree Of Enclosure: |
IP65 GB4208-84 |
Product Description
LX-K3/20S/W Specification
The product is to serve at such control circuit as AC50-60Hz, voltage of 380V AC or 220V DC and current of 10A to automatically control machine tool, limit movement and action of drive mechanism and control program.
The normal working conditions include an ambient temperature of -25 ~ + 40, an ambient relative humidity of 90%, an altitude of 2000m and protection degree ofIP65. It complies with the standard of IEC337-1 and GB14048.5-93
| Operating Speed | 0.5mm~0.5m/s |
| Operating Frequency | Mechanical:120 operations/min;Electrical:30 operations/min |
| Contact Resistance | 50mΩ max (initial value) |
| Insulation Resistance | 100mΩ min(at 500VDC) |
| Conventional Thermal Current | 5A |
| Electrical Prameter | AC380V/0.8A DC220V/0.1A |
| Dielectric Strength | 1890V, 50/60Hz for 1min between terminals of the same polarity |
| 2500V, 50/60Hz for 1 min between terminal and non-current carrying metal parts |
| 2500V, 50/60Hz for 1 min between terminal and ground |
| Vibration | malfunction:10Hz~55Hz, 1.5mm double amplitude |
| Shock | mechanical resistance:1000m/s2; malfunction:300m/s2 |
| Ambient Environment | Temperature:minus5centigrade~60 centigrade(no ice); Humidity:<90%RH |
| Working Life | Mechanical:6*106 Min.; Electrical:3*105 |
| Degree of Protection | IP52 |
| Type | Operating Force max | Pretravel max | Overtravel min |
| LX-K3/20S/Z | 30N(3.06kgf) | 7mm | 2.0mm |
| LX-K3/20S/L | 30N(3.06kgf) | 7mm | 2.0mm |
| LX-K3/20S/B | 20N(2.04kgf) | 45° | 20° |
| LX-K3/20S/T | 20N(2.04kgf) | 45° | 20° |
| LX-K3/20S/J | 20N(2.04kgf) | 45° | 20° |
| LX-K3/20S/D | 20N(2.04kgf) | 45° | 20° |
| LX-K3/20S/H1 | 30N(3.06kgf) | 80° | / |
| LX-K3/20S/H2 | 30N(3.06kgf) | 80° | / |
| LX-K3/20S/H3 | 30N(3.06kgf) | 80° | / |
| LX-K3/20S/W | 20N(2.04kgf) | 45° | / |
