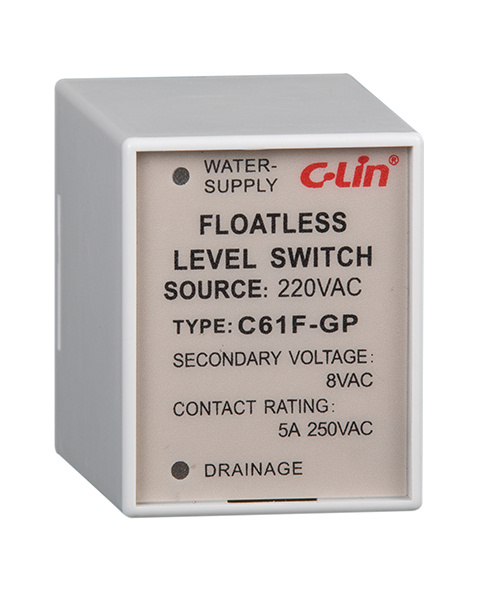

Liquid Level Relay with Water Drain&Water Supply (C61F-GP)
Product Specifications
| Prod Model: |
C61F-GP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Power: |
DC24V; AC24V, 36V, 220V, 380V |
| Working Mode: |
Water Drain, Water Supply Type |
| Water Control Distance: |
Less Than or Equal to 500m |
| Contact Form: |
3A AC220V(Resistance) |
| Outline Dimension: |
55*40*79mm |
| Installation Mode: |
Device Type or 35mm Guide Rail |
Product Description
Product Description
Liquid Level Relay can be used as the liquid level control component in the circuit of 50Hz alternating current, 380V or below 380V rated voltage.
Connecting or breaking pump controlled circuit according to the requirements, water can be supplied or drained automatically.
Liquid Level Relays are widely used in the automatic control between water towers and wells.
Specification
| Model | C61F-GP |
| Working power | DC24V; AC24V, 36V, 220V, 380V |
| Working mode | water supply, water drain(remark when placing order) |
| Water control distance | ≤500m |
| Contact form | 1 groups NO,NC contact |
| Contact capacity | 3A AC220V(resistance) |
| Outline dimension | 55*40*79mm |
| Installation mode | device type or 35mm guide rail |
Xinling Electrical Co., Ltd. China was established in 1990. The company has 9 sub-branches, more than 100 cooperation units, and 100 direct distributors, 1000.00m2 factory area and 1000 stuffs.
The company mainly produces mini relay, time relay, solid state relay, electric power relay, temperature controller, kilowatt-hour meter, circuit breaker, contactor and some other electrical component which are the first choice of electric net reconstruction. With perfect management system and technical advancement, itsstreng thens the management or enterprise and promotes product quality. The company takes prospering national industry as its own responsibilities, works hard developing economy of China to promote enterprise level.
The enterprise has gained ISO9001 and RVA Quality System Attestation(Netherlands), and its products have gained CE attestation (European Community), and UL Attestation and CCC Safety Attestation in China successively, and have been insured by PICC, besides, their quality has been ensured by quality "three guarantee". As a result, its products are sold well in more than 30 provinces and cities of China and are exported to Europe, America, Middle East, South-Eastern Asia, Africa and so on 20 countries and districts. Successively, the enterprise has been given the titles of Star Enterprise of China, Financial AAA Grade Enterprise, Gold Client of Agriculture Bank of China, and Credit Enterprise of Product Quality.
Xinling --- will create a magnificent tomorrow together with you!
