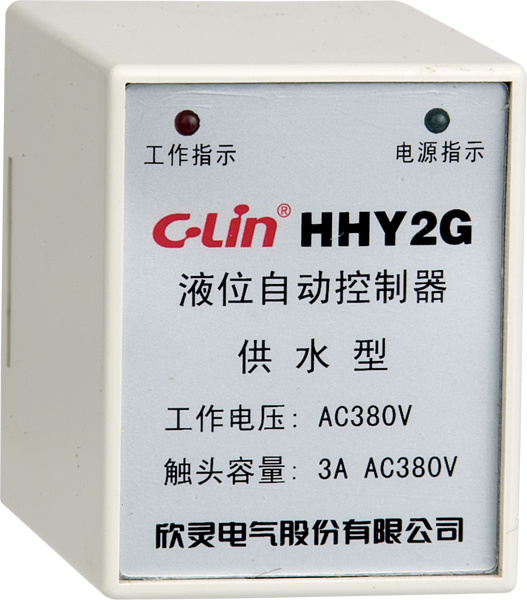

HHY2G&HHY2P Liquid Level Relay
General Introduction
HHY Series Liquid Level Relay can be used as the liquid level control component in the circuit of 50Hz alternating current, 380V or below 380V rated voltage.
Connecting or breaking pump controlled circuit according to the requirements, water can be supplied or drained automatically.
HHY Series Liquid Level Relays are widely used in the automatic control between water towers and wells.
Technical Specification
| Product name | Liquid Level Relay |
| Model numeber | HHY2G, HHY2P |
| Working power | AC24V, 220V, 380V |
| Working mode | HHY2P: Water drain type |
| HHY2G: Water supply type |
| Water control distance | less than or equal to 200meters |
| Contact form | one group normally open normally close contact |
| Contact capacity | 3A AC220V(resistance) |
| Electrical life | 1*105 |
| Overall dimension | 55*41*78mm |
| Installation | 35mm guide rail and matching outlet style |
